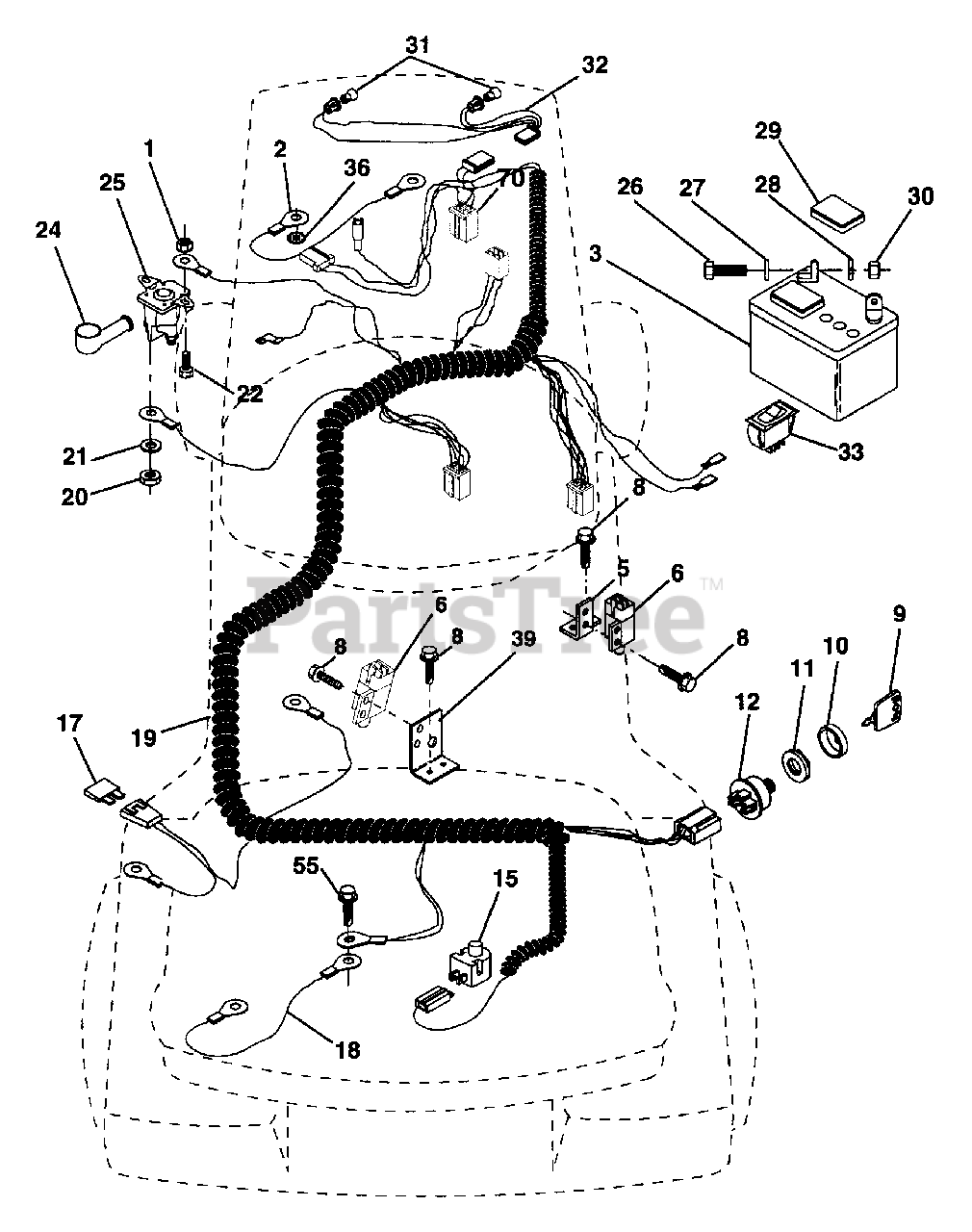

LR 12 (954002701-B) - Husqvarna Lawn Tractor (1994-10) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title
1

Husqvarna 873640400

Nut, Hex, Keps 1/4-20

$

$

Not available

2

Husqvarna 532108423

Assembly, Cable

$8.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532133909

Battery
(Superseded to 532123899)

$194.99

$

In Stock, only 2 left!

0

5

Husqvarna 532108236

Bracket, Switch

$2.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532109553

Switch, Interlock, 4 Terminal
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

8

Husqvarna 817021008

Screw, Hex Head, Self-Tapping #10-24 x 1/2

$4.99

$

In Stock, Qty 14

0

9

Husqvarna 532140401

Key, Molded

$6.99

$

In Stock, Qty 7

0

10

Husqvarna 532141226

Cover, Ignition Key

$5.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532140400

Nut, Ignition
(Superseded to 532145774)

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532144921

Switch, Ignition
(Superseded to 532158913)

$66.99

$

In Stock, only 1 left!

0

15

Husqvarna 532121305

Switch, Plunger
(Superseded to 532421062)

$14.99

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532128353

Assembly, Cable

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532143132

Harness, Ignition

$

$

Not available

20

Husqvarna 873350400

Nut, Hex, Jam 1/4-20
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

21

Husqvarna 810090400

Washer, Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

22

Husqvarna 871110408

Bolt, Hex, Fin. 1/4-20 UNC x 1/2 Grade 5
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532131563

Cover, Terminal
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

25

Husqvarna 532138406

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

26

Husqvarna 874760412

Bolt, Hex Head 1/4-20 UNC x 3/4

$7.49

$

In Stock, only 1 left!

0

27

Husqvarna 819091016

Washer 9/32 x 5/8 x 16 Gauge

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

29

Husqvarna 532121264

Cap, Battery

$

$

Not available

30

Husqvarna 873220400

Nut, Hex, Fin. 1/4-20 UNC
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

31

Husqvarna 532004152

Bulb, Light

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532136850

Harness, Headlight

$

$

Not available

33

Husqvarna 532110712

Switch, Light

$9.49

$

In Stock, only 2 left!

0

36

Husqvarna 811150400

Washer, Lock, Internal Tooth 1/4

$2.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532141735

Bracket, Switch Clutch

$2.99

$

Usually ships in 3-10 days

0

55

Husqvarna 817490508

Screw, Thdrol 5/16-28 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532140413

Harness Engine

$

$

Not available
