LR 11 - Jonsered Rear-Engine Riding Mower (1998-01) SECTOR GEAR / AXLE SUPPORT Parts Diagram

Rear-Engine Riding Mower

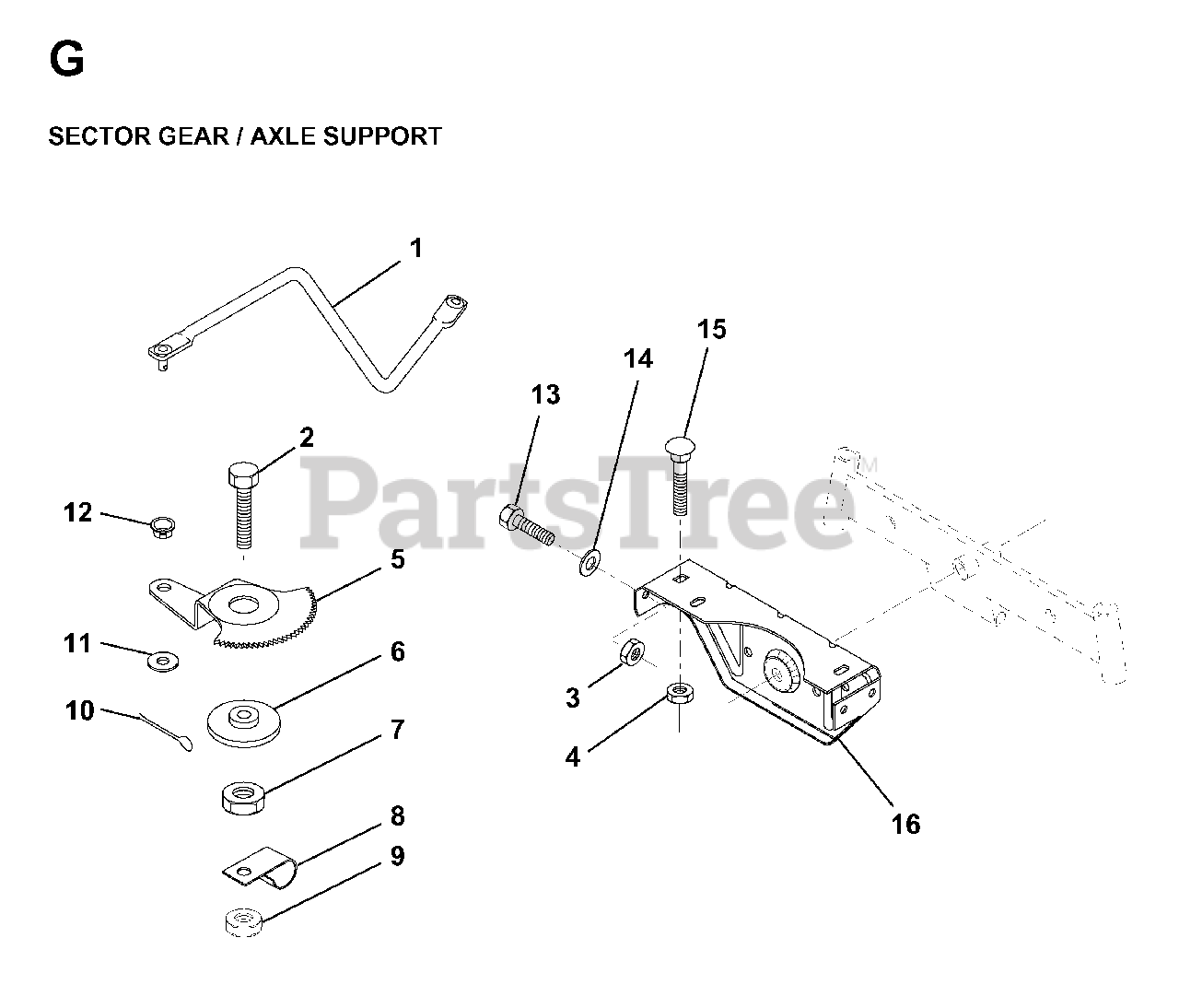

SECTOR GEAR / AXLE SUPPORT Parts Diagram

  • Title

1

Jonsered 532132566

LINK DRAG

$46.99

$

In Stock, only 1 left!

0

2

Jonsered 874780828

BOLT,HEX

$4.99

$

Usually ships in 3-10 days

0

3

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

4

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

5

Jonsered 532121926

GEAR SECTOR

$

$

Not available

6

Jonsered 532121927

BUSHING

$

$

Not available

7

Jonsered 873030800

NUT
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

8

Jonsered 532126472

CLIP INSULATOR

$

$

Not available

9

Jonsered 873680800

NUT LTV
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

10

Jonsered 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

11

Jonsered 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

12

Jonsered 532126847

BUSHING.DRAGLINK

$5.99

$

In Stock, only 2 left!

0

13

Jonsered 874760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

14

Jonsered 819111416

WASHER
(Superseded to 734116541)

$5.99

$

Usually ships in 3-10 days

0

15

Jonsered 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

16

Jonsered 532137096

SUPPORT/AXLE FRONT

$

$

Not available
