LR 100 (954000572-A) - Husqvarna Lawn Tractor (1995-03) Sector Gear/Axle Support Parts Diagram

Lawn Tractor

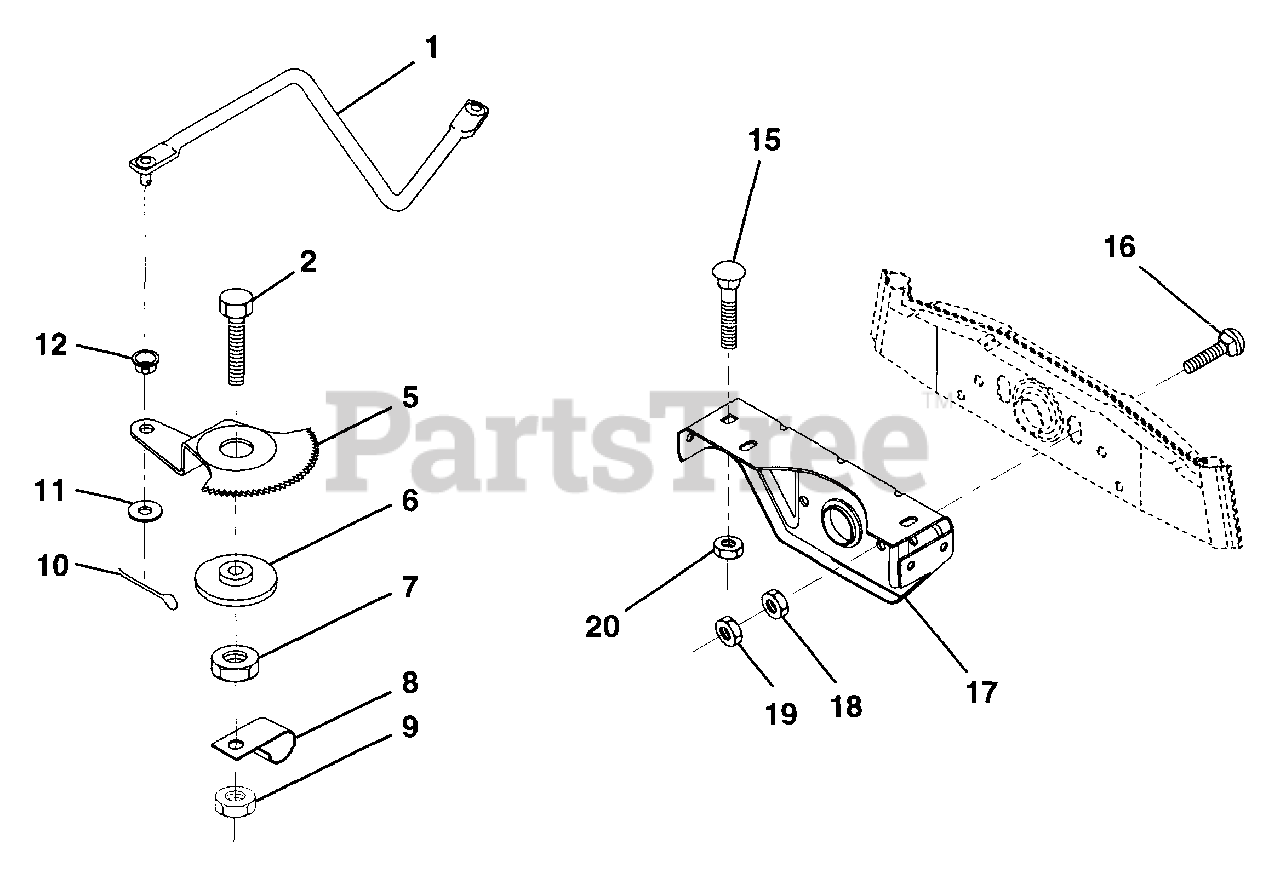

Sector Gear/Axle Support Parts Diagram

  • Title

1

Husqvarna 532132566

Link, Drag

$46.99

$

In Stock, only 1 left!

0

2

Husqvarna 874780828

Bolt, Hex, Fin. 1/2-13 x 1-3/4

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532121926

Gear, Sector

$

$

Not available

6

Husqvarna 532121927

Bushing

$

$

Not available

7

Husqvarna 873030800

Nut, Heavy Hex, Top Lock 1/2-13 UNC
(Superseded to 873350800)

$

$

Not available

8

Husqvarna 532126472

Clip, Insulated

$

$

Not available

9

Husqvarna 873680800

Nut, Crownlock 3/8-16
(Superseded to 873350800)

$

$

Not available

10

Husqvarna 876020412

Pin, Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

11

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 532126847

Bushing

$5.99

$

In Stock, only 2 left!

0

15

Husqvarna 872110606

Bolt, Carriage 3/8-16 UNC x 3/4

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 872140622

Bolt, Carriage
(Superseded to 872110622)

$4.99

$

In Stock, Qty 10

0

17

Husqvarna 532121912

Support, Front Axle

$

$

Not available

18

Husqvarna 873220600

Nut, Hex, Fin. 3/8-16 UNC

$6.49

$

In Stock, only 2 left!

0

19

Husqvarna 873930600

Nut, Centerlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 873680600

Nut. Crownlock 3/8-16 UNC

$3.99

$

Usually ships in 3-10 days

0
