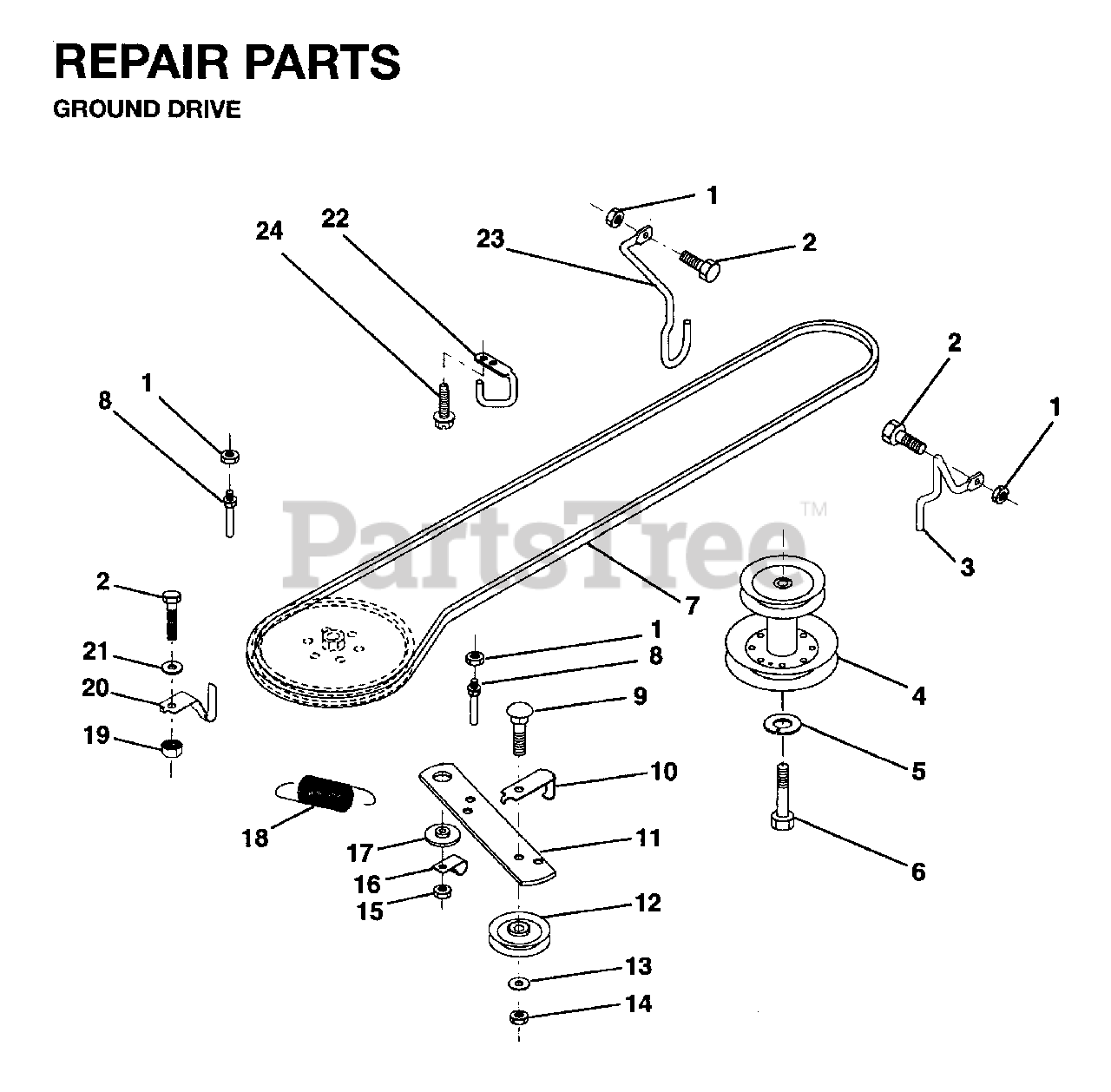

LR 10 - Jonsered Rear-Engine Riding Mower (1995-01) DRIVE Parts Diagram

Rear-Engine Riding Mower

DRIVE Parts Diagram

  • Title

1

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

2

Jonsered 874780512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

3

Jonsered 532141342

KEEPER/MOWER DRIVE RH

$4.99

$

Usually ships in 3-10 days

0

4

Jonsered 532138029

ENGINE PULLEY

$

$

Not available

5

Jonsered 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

6

Jonsered 871170744

HEX BOLT

$2.99

$

Usually ships in 3-10 days

0

7

Jonsered 532126520

BELT
(Superseded to 532419271)

$60.99

$

Usually ships in 3-10 days

0

8

Jonsered 532123405

KEEPER,DRIVE BELT
(Superseded to 532164173)

$8.99

$

Usually ships in 3-10 days

0

9

Jonsered 872140612

BOLT

$2.99

$

Usually ships in 3-10 days

0

10

Jonsered 532123396

KEEPER.BELT.GROUND.DRIVE.IDLER

$4.99

$

Usually ships in 3-10 days

0

11

Jonsered 532140911

ARM/GROUND DRIVE CLUTCH

$

$

Not available

12

Jonsered 532123674

PULLEY.IDLER.FLAT

$31.99

$

In Stock, only 1 left!

0

13

Jonsered 734117201

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

14

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

15

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

16

Jonsered 532126471

CLIP,INSULATOR

$4.99

$

Usually ships in 3-10 days

0

17

Jonsered 532122052

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

18

Jonsered 532131459

SPRING.EXTENSION

$

$

Not available

19

Jonsered 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

20

Jonsered 532139919

KEEPER-T/A GROUND DRIVE BELT

$2.99

$

Usually ships in 3-10 days

0

21

Jonsered 734116301

WASHER - 15X7.3X1.6
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

22

Jonsered 532123404

KEEPER,FRA DR BEL

$

$

Not available

23

Jonsered 532140916

KEEPER-MOWER DRIVE LH

$5.99

$

Usually ships in 3-10 days

0

24

Jonsered 874780408

BOLT
(Superseded to 74780408)

$1.49

$

Usually ships in 3-10 days

0
