LR 10 - Jonsered Rear-Engine Riding Mower (1995-01) CHASSIS ENCLOSURES Parts Diagram

Rear-Engine Riding Mower

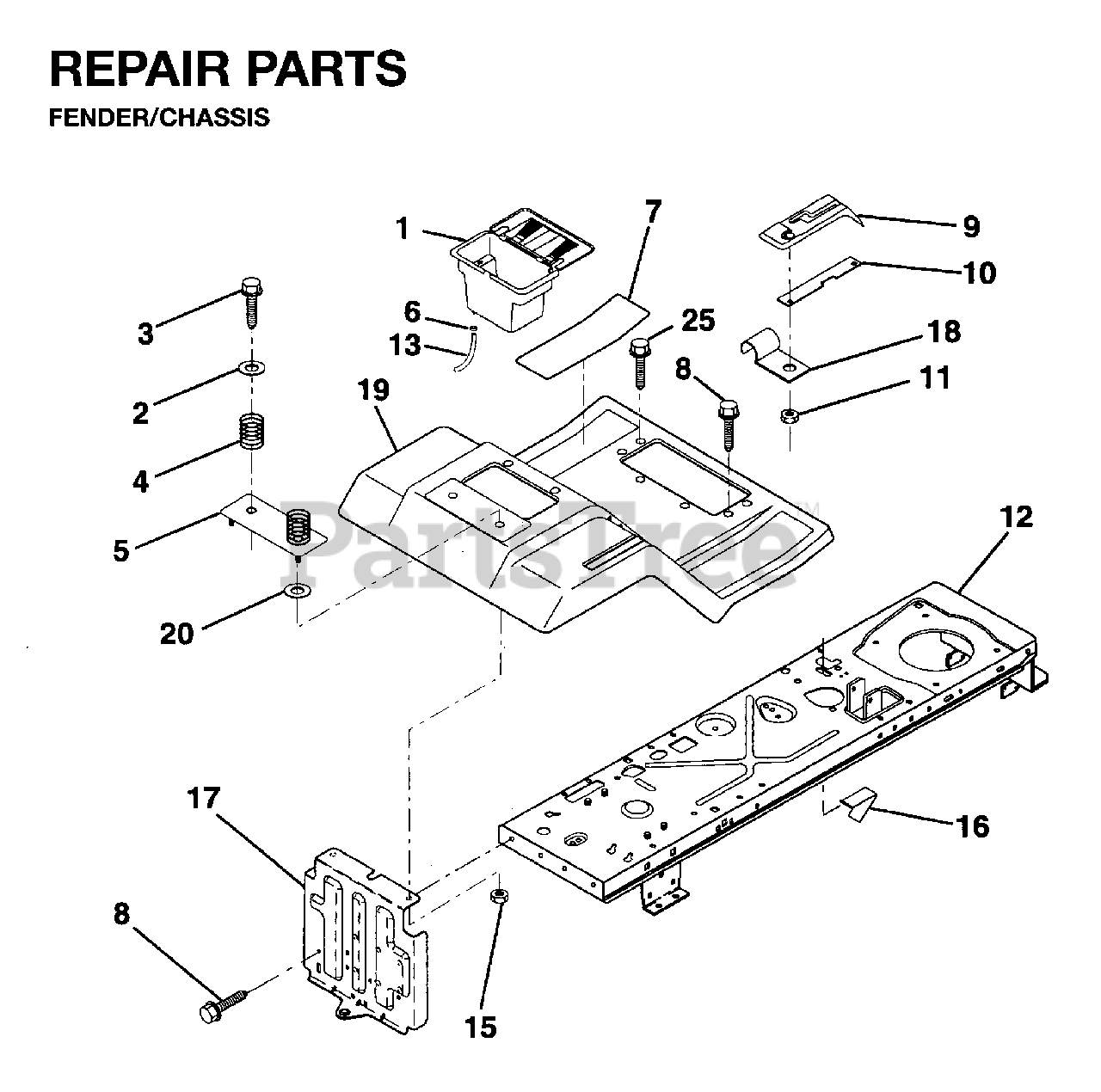

CHASSIS ENCLOSURES Parts Diagram

  • Title

1

Jonsered 532129965

CASE BATTERY
(Superseded to 532144940)

$

$

Not available

2

Jonsered 734117441

WASHER

$4.99

$

In Stock, only 2 left!

0

3

Jonsered 874780612

BOLT

$7.49

$

In Stock, only 2 left!

0

4

Jonsered 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

5

Jonsered 532125431

No Description Available
(Superseded to 127115X505)

$7.99

$

Usually ships in 3-10 days

0

6

Jonsered 532109596

HOSE CLAMP T

$4.99

$

Usually ships in 3-10 days

0

7

Jonsered 532124144

PAD FOOTREST

$

$

Not available

8

Jonsered 874780512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

9

Jonsered 532126996

CONSOLE SHT CONTR

$

$

Not available

10

Jonsered 532139783

BAR, SHIFT LOCK

$

$

Not available

11

Jonsered 532124346

NUT

$7.99

$

In Stock, only 1 left!

0

12

Jonsered 532145190

FRAME

$

$

Not available

13

Jonsered 532109238

TUBE BATTERY DRAIN

$

$

Not available

15

Jonsered 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

16

Jonsered 532141736

No Description Available

$

$

Not available

17

Jonsered 532140782

DRAWBAR

$

$

Not available

18

Jonsered 532126470

CLIP,INSULATOR

$3.99

$

Usually ships in 3-10 days

0

19

Jonsered 532141650

No Description Available
(Superseded to 140956X505)

$

$

Not available

20

Jonsered 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

25

Jonsered 817490516

SCREW
(Superseded to 539113226)

$6.49

$

Usually ships in 3-10 days

0
