Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 224705 - 229999) Transmission Case And Differential Parts Diagram

Cub Lo-Boy Tractor

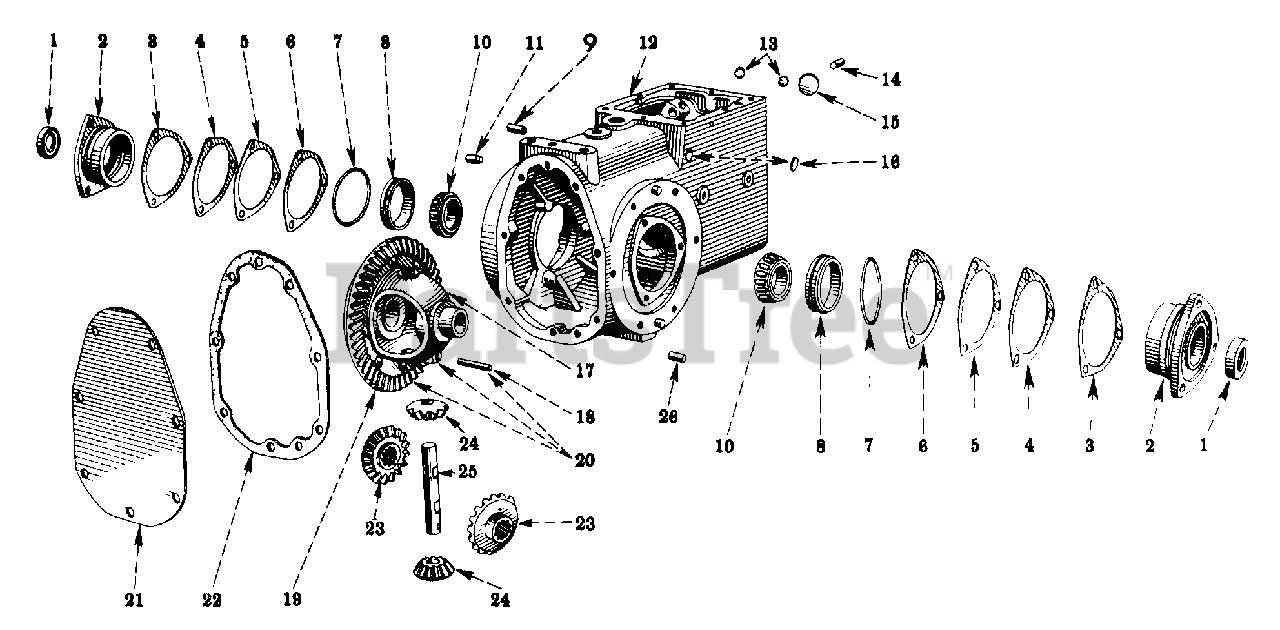

Transmission Case And Differential Parts Diagram

  • Title

1

Cub Cadet IH-385872-R91

OIL SEAL, DIFFERENTIAL SHAFT INNER BEARING RETAINER
(Superseded to IH-385872-R92)

$

$

Not available

2

Cub Cadet IH-376158-R91

RETAINER, DIFFERENTIAL

Note: W/BEARING, IH-ST974

$

$

Currently unavailable

Cub Cadet IH-179839

SCREW, 3/8-16 X 1 HEX-HD CAP

$

$

Not available

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

3

Cub Cadet IH-350794-R1

SHIM, DIFFERENTIAL BEARING RETAINER

Note: EXTRA LIGHT - 3 OR AS REQUIRED

$

$

Currently unavailable

4

Cub Cadet IH-350795-R1

SHIM, DIFFERENTIAL BEARING RETAINER

Note: LIGHT - 4 OR AS REQUIRED

$

$

Not available

5

Cub Cadet IH-350796-R1

SHIM, DIFFERENTIAL BEARING RETAINER
(Superseded to 717-3099)

Note: MEDIUM - 2 OR AS REQUIRED

$37.99

$

Usually ships in 3-6 days

0

6

Cub Cadet IH-350797-R1

SHIM, DIFFERENTIAL BEARING RETAINER
(Superseded to 717-3100)

Note: HEAVY - 2 OR AS REQUIRED

$

$

Not available

7

Cub Cadet IH-285723-R1

O-RING, 3-1/8 X 3-3/8 X 1/8 DIFFERENTIAL BEARING RETAINER

$

$

Not available

8

Cub Cadet IH-ST974

BEARING, DIFFERENTIAL SHAFT INNER CUP

$

$

Not available

9

Cub Cadet IH-358756-R1

BUSHING, ACTUATING TOGGLE

Note: CUB TRACTORS W/SERIAL NO. 173601 & ABOVE, ALL CUB LO-BOY TRACTORS

$

$

Currently unavailable

10

Cub Cadet IH-ST2049

BEARING ASSY, DIFFERENTIAL CONE

$

$

Not available

11

Cub Cadet IH-350799-R1

DOWEL, TRANSMISSION CASE TO REAR AXLE HOUSING

$

$

Not available

12

Cub Cadet IH-351236-R98

CASE ASSY, TRANSMISSION

Note: COMPOSED OF FOLLOWING 13 ITEMS

$

$

Currently unavailable

Cub Cadet IH-357931-R91

BEARING
(Superseded to 941-0364)

$

$

Not available

Cub Cadet IH-358756-R1

BUSHING

$

$

Currently unavailable

Cub Cadet IH-543597-R1

CASE

$

$

Currently unavailable

Cub Cadet IH-104938

CORK

$

$

Currently unavailable

Cub Cadet IH-258917-R1

DOWEL

$

$

Currently unavailable

Cub Cadet IH-350799-R1

DOWEL

$

$

Not available

Cub Cadet IH-357215-R1

DOWEL

$

$

Currently unavailable

Cub Cadet IH-172528

PLUG

$

$

Currently unavailable

Cub Cadet IH-172530

PLUG

$

$

Currently unavailable

Cub Cadet IH-172557

PLUG

$

$

Currently unavailable

Cub Cadet IH-438159

PLUG

$

$

Not available

Cub Cadet IH-444576

PLUG
(Superseded to 751-3001)

$

$

Not available

Cub Cadet IH-444592

PLUG

$

$

Currently unavailable

Cub Cadet IH-444576

PLUG, 1/4-18 AUTO SQ-HD PIPE
(Superseded to 751-3001)

$

$

Not available

Cub Cadet IH-438159

PLUG. 1/2-14 AUTO SQ-HD PIPE

$

$

Not available

Cub Cadet IH-444592

PLUG, 3/4-14 AUTO SQ-HD PIPE

$

$

Currently unavailable

13

Cub Cadet IH-172528

PLUG, 9/16 DIAMETER EXPANSION

Note: GEAR SHIFTER ROD HOLE

$

$

Currently unavailable

14

Cub Cadet IH-350799-R1

DOWEL, TRANSMISSION CASE TO CLUTCH HOUSING

$

$

Not available

15

Cub Cadet IH-172557

PLUG, 1-3/16 DIAMETER EXPANSION

Note: REVERSE IDLER GEAR SHAFT

$

$

Currently unavailable

16

Cub Cadet IH-172530

PLUG, 11/16 DIAMETER EXPANSION

Note: POWER TAKE-OFF SHIFTER SHAFT BEARING

$

$

Currently unavailable

17

CASE, DIFFERENTIAL

Note: NOT SERVICED SEPARATELY; ORDER CASE ASSY. IH-350785-R92

$

$

Not available

Cub Cadet IH-104100

RIVET, 5/16 X 1-1/8 RD-HD

$

$

Currently unavailable

18

Cub Cadet IH-350788-R1

PIN DIFFERENTIAL PINION SHAFT LOCK

$

$

Not available

19

Cub Cadet IH-350787-R1

GEAR, DIFFERENTIAL DRIVE - 46 TEETH

$

$

Not available

20

Cub Cadet IH-350785-R92

CASE ASSY, DIFFERENTIAL

Note: COMPOSED OF 1 CASE IH-350786-R2, 1 GEAR IH-350787-R1, 1 PIN IH-350788-R1 & 8 RIVET IH-104100

$

$

Currently unavailable

Cub Cadet IH-350786-R2

CASE

$

$

Currently unavailable

Cub Cadet IH-350787-R1

GEAR

$

$

Not available

Cub Cadet IH-350788-R1

PIN

$

$

Not available

Cub Cadet IH-104100

RIVET

$

$

Currently unavailable

21

Cub Cadet IH-350836-R1

PLATE, TRANSMISSION CASE REAR COVER

Note: NOT USED ON TRACTORS EQUIPPED W/BELT PULLEY AND PTO

$

$

Currently unavailable

Cub Cadet IH-179835

SCREW, 3/8-16 X 5/8 HEX-HD CAP
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

22

Cub Cadet IH-350837-R2

GASKET, TRANSMISSION CASE REAR COVER PLATE
(Superseded to IH-350837-R3)

Note: NOT USED ON TRACTORS EQUIPPED W/BELT PULLEY AND PTO

$29.99

$

In Stock, Qty 7

0

23

Cub Cadet IH-350791-R1

GEAR, DIFFERENTIAL SIDE - 16 TEETH

$

$

Currently unavailable

24

Cub Cadet IH-350790-R1

PINION, DIFFERENTIAL - 10 TEETH

$

$

Not available

25

Cub Cadet IH-350789-R1

SHAFT, DIFFERENTIAL PINION

$

$

Currently unavailable

26

Cub Cadet IH-350799-R1

DOWEL, TRANSMISSION CASE TO DIFFERENTIAL SHAFT HOUSING

$

$

Not available
