Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 224705 - 229999) Starting & Lighting System -12 Volt- (S/N 248125 & Above) Parts Diagram

Cub Lo-Boy Tractor

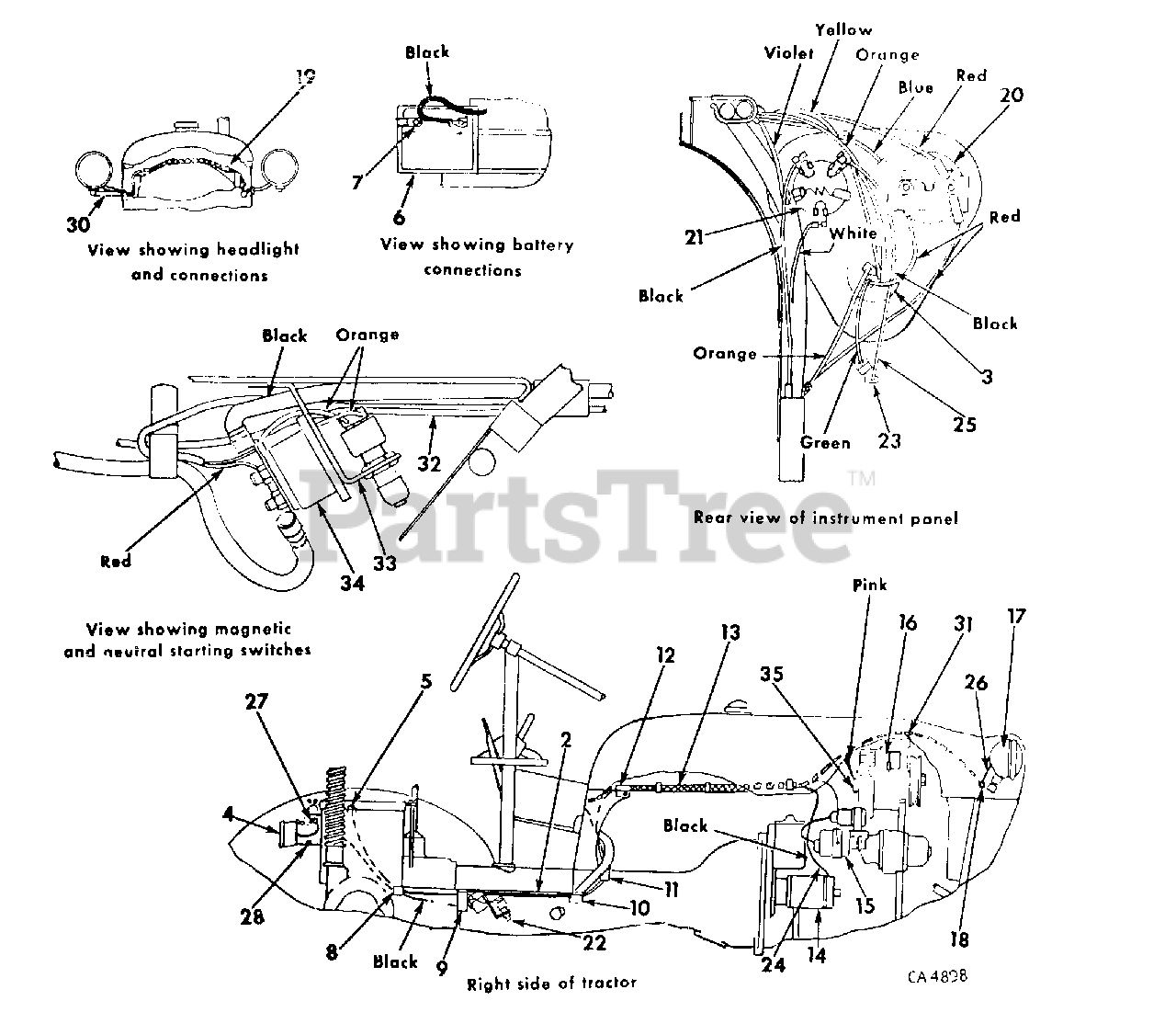

Starting & Lighting System -12 Volt- (S/N 248125 & Above) Parts Diagram

  • Title

?1

Cub Cadet IH-547143-R1

CABLE W/BOLT

Note: IH-356062-R91, BOOT, IH-364910-R1 BATTERY TO MAGNETIC SWITCH

$

$

Currently unavailable

Cub Cadet IH-356062-R91

BOLT ASSY, TERMINAL

$

$

Not available

Cub Cadet IH-364910-R1

BOOT, TERMINAL

$

$

Currently unavailable

2

Cub Cadet IH-387312-R91

CABLE ASSY, REAR LIGHT

$

$

Currently unavailable

3

Cub Cadet IH-60736-C2

SWITCH ASSY, BATTERY IGNITION KEY
(Superseded to IH-60736-C3)

$90.99

$

In Stock, only 4 left!

0

Cub Cadet IH-131313-C1

KEY, SWITCH
(Superseded to IH-131313-C2)

$12.99

$

In Stock, only 2 left!

0

Cub Cadet IH-365502-R1

NUT, SWITCH MOUNTING

$11.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-375431-R1

WASHER, SWITCH MOUNTING

$11.99

$

In Stock, only 1 left!

0

4

Cub Cadet IH-121846-C91

LIGHT ASSY, TAIL

Note: -REPLACES IH-376850-R91- FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF TAIL LIGHT-

$

$

Currently unavailable

Cub Cadet IH-109084

NUT, 1/4-20 HEX

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER, 1/4 MED LOCK

$

$

Currently unavailable

5

Cub Cadet IH-52118D

GROMMET, BATTERY BOX

$

$

Currently unavailable

6

Cub Cadet IH-IHPR20H

BATTERY 12 VOLT-

$

$

Currently unavailable

7

Cub Cadet IH-629029-R92

STRAP W/BOLT, IH-356092-R91, BATTERY 10

$

$

Not available

IH-120512HX

GROUND BOLT ASSY, TERMINAL

$

$

Not available

8

Cub Cadet IH-371035-R1

CLIP CABLE

Note: UNDERNEATH PLATFORM

$

$

Currently unavailable

9

Cub Cadet IH-371036-R1

CLIP THIRD BOLT FROM REAR

Note: UNDERNEATH PLATFORM

$

$

Not available

10

Cub Cadet IH-363500-R1

STRAP CABLE WRAPPING

Note: BETWEEN PEDAL AND CLUTCH HOUSING

$

$

Currently unavailable

11

Cub Cadet IH-363504-R1

CLIP, INSIDE RIGHT SIDE FUEL TANK SUPPORT

$

$

Currently unavailable

Cub Cadet IH-103088

NUT, 10-32 HEX
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

Cub Cadet IH-100763

SCREW, 10-32 X 3/8 SLT-RD-HD MACH

$

$

Currently unavailable

Cub Cadet IH-106497

WASHER, NO 10 MED LOCK

$

$

Currently unavailable

12

Cub Cadet IH-371034-R1

CLIP, CABLE HARNESS -RH SIDE-

Note: ON INSIDE EDGE OF HOOD SUPPORT

$

$

Currently unavailable

13

Cub Cadet IH-107588-R1

HARNESS ASSY, CABLE

$

$

Currently unavailable

14

Cub Cadet IH-1107327

MOTOR ASSY, CRANKING

Note: -ORDER IH-1109352- -FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF CRANKING MOTOR-

$

$

Currently unavailable

Cub Cadet IH-179839

SCREW, 3/8-16 X 1 HEX-HD CAP

$

$

Not available

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

15

BATTERY, IGNITION UNIT

Note: REFER TO C-60 ENGINE GROUP 12

$

$

Not available

16

ALTERNATOR ASSY

Note: REFER TO ALTERNATOR GENERATOR AND CONNECTIONS

$

$

Not available

17

Cub Cadet IH-376849-R91

LIGHT ASSY, HEAD

Note: -ONLY SERVICEABLE ITEMS ARE SEALED BEAM UNIT, IH-373662-R91 AND CONNECTOR, IH-530029-R91- -OPTIONAL W/ IH-391005-R91-

$

$

Currently unavailable

17

Cub Cadet IH-391005-R91

LIGHT ASSY, HEAD

Note: -ONLY SERVICEABLE ITEMS ARE SEALED BEAM UNIT, IH-373662-R91, RETAINER, IH-676078-R1 AND CONNECTOR, IH-530029-R91- -OPTIONAL W/ IH-376849-R91-

$

$

Currently unavailable

Cub Cadet IH-102637

NUT, 1/2-13 HEX
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-103323

WASHER, 1/2 MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

18

Cub Cadet IH-120302

GROMMET, RUBBER NO 6 -IN HOOD-

$

$

Currently unavailable

19

Cub Cadet IH-362121-R1

CLIP HEAD LIGHT CABLE HARNESS
(Superseded to 726-3008)

$4.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-109084

NUT, 1/4-20 HEX

$

$

Currently unavailable

Cub Cadet IH-113955

SCREW, 1/4-20 X 1/2 SLT-RD HD MACH

$

$

Not available

Cub Cadet IH-103319

WASHER, 1/4 MED LOCK

$

$

Currently unavailable

20

Cub Cadet IH-536229-R1

INDICATOR ASSY, CHARGE

Note: -REPLACES IH-360053-R92-

$

$

Not available

21

Cub Cadet IH-376851-R92

SWITCH ASSY, LIGHTING
(Superseded to IH-376851-R93)

$92.99

$

Usually ships in 3-6 days

0

22

Cub Cadet IH-121629-C1

SWITCH ASSY NEUTRAL STARTING
(Superseded to 925-3038)

Note: -REPLACES IH-387728-R91-

$80.99

$

Usually ships in 3-6 days

0

23

Cub Cadet IH-376852-R91

HOUSING ASSY, FUSE
(Superseded to 925-3011)

$21.99

$

In Stock, Qty 7

0

Cub Cadet IH-120151

FUSE, CARTRIDGE TYPE AGC 15

$

$

Currently unavailable

24

Cub Cadet IH-547144-R1

CABLE ASSY, MAGNETIC SWITCH TO CRANKING MOTOR

$

$

Currently unavailable

25

Cub Cadet IH-404401-R1

CABLE ASSY, FUSE HOUSING TO LIGHTING SWITCH

$

$

Currently unavailable

26

Cub Cadet IH-387311-R1

BODY, CONNECTOR

$

$

Currently unavailable

27

Cub Cadet IH-362121-R1

CLIP REAR LIGHT CABLE
(Superseded to 726-3008)

$4.99

$

Usually ships in 3-6 days

0

28

Cub Cadet IH-366460-R1

CLIP, TAIL LIGHT CABLE
(Superseded to 726-0272)

$7.49

$

Usually ships in 3-6 days

0

?29

Cub Cadet IH-45569D

SPACER, HEAD LIGHT

$

$

Currently unavailable

30

Cub Cadet IH-351341-R1

POST HEAD LIGHT

$

$

Currently unavailable

Cub Cadet IH-114507

NUT, 5/8 11 HEX JAM

$

$

Currently unavailable

Cub Cadet IH-103325

WASHER, 5/8 MED LOCK

$

$

Currently unavailable

31

Cub Cadet IH-363660-R1

CLIP, CABLE HARNESS

Note: -ON ALTERNATOR BRACKET-

$

$

Currently unavailable

32

Cub Cadet IH-547145-R1

HARNESS ASSY, NEUTRAL STARTING SWITCH

$

$

Currently unavailable

33

Cub Cadet IH-547147-R1

BRACKET, NEUTRAL STARTING SWITCH

$

$

Currently unavailable

Cub Cadet IH-16897-R1

BOLT, 5/16-18 X 1/2 ZND CRG
(Superseded to 710-0451)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 ZND REG LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

34

Cub Cadet IH-121613-C1

SWITCH ASSY MAGNETIC
(Superseded to 925-3001)

Note: -REPLACES IH-545756-R2-

$58.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120614

NUT, 10-32 ZND HEX MACH SCREW
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

Cub Cadet IH-120217

WASHER, NO 10 ZND REG LOCK
(Superseded to 736-0722)

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 ZND REG LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-611344-R1

WASHER, 11/32 X 7/8 X 16 GA C-Z
(Superseded to 736-0195)

Note: -1 OR AS REQUIRED-

$

$

Not available

Cub Cadet IH-180016

SCREW, 1/4-20 X 1/2 ZND HEX HD CAP

$

$

Currently unavailable

Cub Cadet IH-120375

NUT, 1/4-20 ZND HEX
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 17

0

35

Cub Cadet IH-107558-C1

RESISTOR -25 OHM-

Note: -REPLACES IH-534784-R1-

$

$

Currently unavailable

Cub Cadet IH-180081

BOLT, 5/16 X 1 1/4 TYPE 5
(Superseded to 710-0528)

$4.49

$

In Stock, Qty 19

0

Cub Cadet IH-120393

WASHER, .344 X .688 X .051
(Superseded to 936-0275)

$

$

Not available
