Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 224705 - 229999) Starting & Lighting System -12 Volt- (Cub S/N 239827 To 248124) Parts Diagram

Cub Lo-Boy Tractor

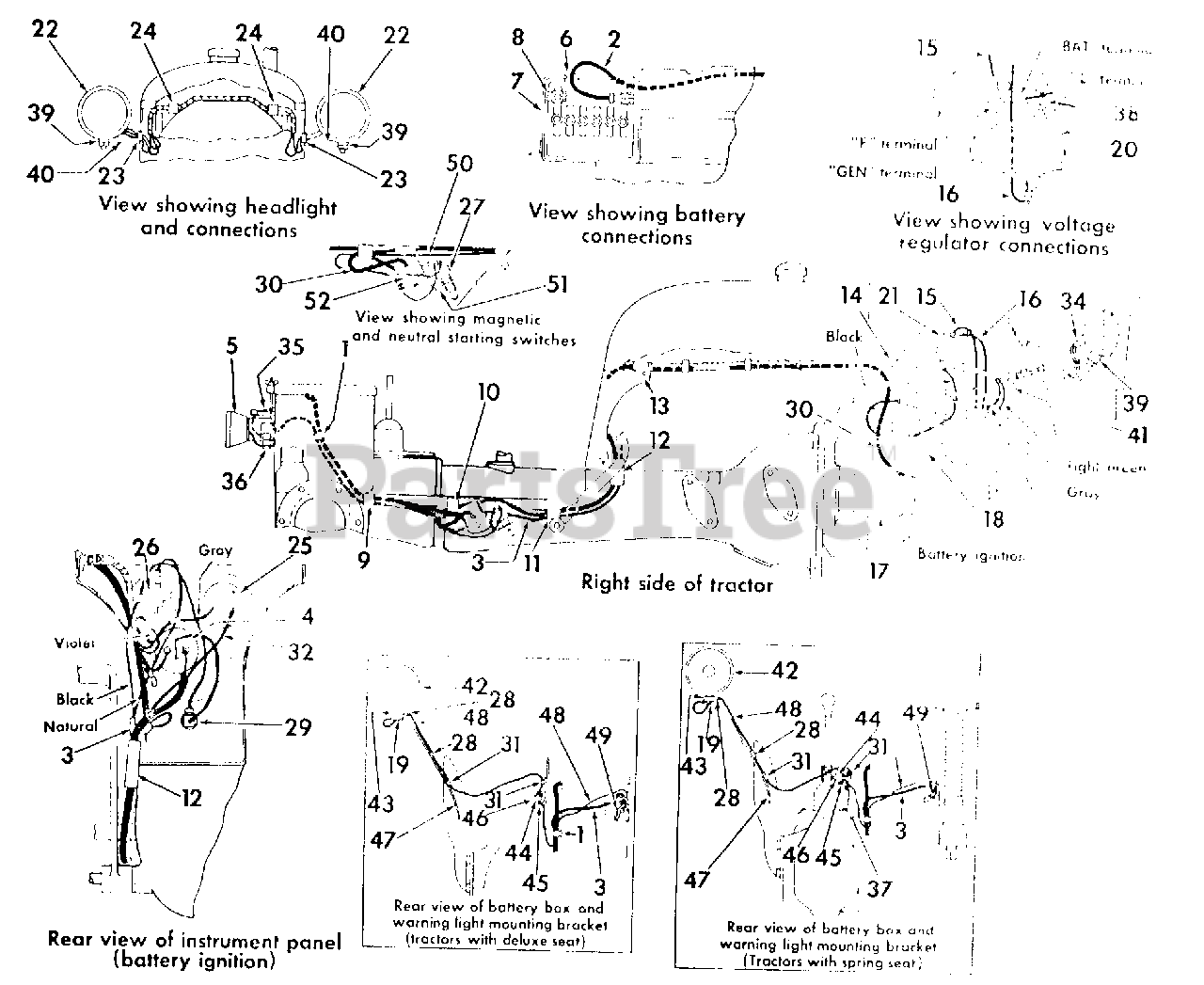

Starting & Lighting System -12 Volt- (Cub S/N 239827 To 248124) Parts Diagram

  • Title

1

Cub Cadet IH-363500-R1

STRAP, CABLE WRAPPING

$

$

Currently unavailable

2

Cub Cadet IH-517143-R1

CABLE W/BOLT

Note: IH-356062-R91, BOOT IH-364910-R1, BATTERY TO MAGNETIC SWITCH

$

$

Currently unavailable

Cub Cadet IH-356062-R91

BOLT ASSY, TERMINAL

$

$

Not available

Cub Cadet IH-364910-R1

BOOT, TERMINAL

$

$

Currently unavailable

3

Cub Cadet IH-387312-R91

CABLE ASSY, REAR LIGHT

$

$

Currently unavailable

4

Cub Cadet IH-60736-C2

SWITCH ASSY, BATTERY IGNITION KEY
(Superseded to IH-60736-C3)

$90.99

$

In Stock, only 4 left!

0

Cub Cadet IH-131313-C1

KEY, SWITCH
(Superseded to IH-131313-C2)

$12.99

$

In Stock, only 2 left!

0

Cub Cadet IH-365502-R1

NUT, SWITCH MOUNTING

$11.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-375431-R1

WASHER, SWITCH MOUNTING

$11.99

$

In Stock, only 1 left!

0

5

Cub Cadet IH-121846-C91

LIGHT ASSY, TAIL

Note: REPLACES IH-376850-R91; FOR COMPONENTS SEE LIST OF PARTS

$

$

Currently unavailable

Cub Cadet IH-109084

NUT, 1/4-20 HEX

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER, 1/4 MED LOCK

$

$

Currently unavailable

6

Cub Cadet IH-52118D

GROMMET, BATTERY BOX

$

$

Currently unavailable

7

Cub Cadet IH-PR20H

BATTERY -12 VOLT-

$

$

Currently unavailable

8

Cub Cadet IH-629029-R92

STRAP W/BOLT, IH-356062-R91, BATTERY TO GROUND

$

$

Not available

IH-120512HX

BOLT ASSY, TERMINAL

$

$

Not available

9

Cub Cadet IH-371035-R1

CLIP, CABLE

Note: UNDERNEATH PLATFORM

$

$

Currently unavailable

10

Cub Cadet IH-371036-R1

CLIP, THIRD BOLT FROM REAR

Note: UNDERNEATH PLATFORM

$

$

Not available

11

Cub Cadet IH-363500-R1

STRAP, CABLE WRAPPING

Note: BETWEEN PEDAL & CLUTCH HOUSING

$

$

Currently unavailable

12

Cub Cadet IH-363504-R1

CLIP, INSIDE RIGHT SIDE FUEL TANK SUPPORT

$

$

Currently unavailable

Cub Cadet IH-103088

NUT, 10-32 HEX
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

Cub Cadet IH-100763

SCREW, 10-32 X 3/8 SLT-RD HD MACH

$

$

Currently unavailable

Cub Cadet IH-106497

WASHER, NO. 10 MED LOCK

$

$

Currently unavailable

13

Cub Cadet IH-371034-R1

CLIP CABLE HARNESS -RH SIDE-

Note: ON INSIDE EDGE OF HOOD SUPPORT

$

$

Currently unavailable

14

Cub Cadet IH-547142-R1

HARNESS ASSY, CABLE

$

$

Currently unavailable

15

Cub Cadet IH-358113-R92

CABLE, GENERATOR -F- TERMINAL TO REGULATOR -F- TERMINAL

$

$

Currently unavailable

16

Cub Cadet IH-358112-R92

CABLE, GENERATOR -A- TERMINAL TO REGULATOR -GEN- TERMINAL

$

$

Currently unavailable

17

Cub Cadet IH-1107327

MOTOR ASSY, CRANKING

Note: ORDER IH-1109352 -FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF CRANKING MOTOR

$

$

Currently unavailable

Cub Cadet IH-179839

SCREW, 3/8-16 X 1 HEX-HD CAP

$

$

Not available

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

18

BATTERY IGNITION UNIT

Note: REFER TO C-60 ENGINE GROUP 21

$

$

Not available

19

Cub Cadet IH-358986-R1

CLIP FLASHING WARNING LIGHT CABLE

$

$

Currently unavailable

20

Cub Cadet IH-121577-C1

REGULATOR ASSY, VOLTAGE
(Superseded to IH-121577-C2)

$219.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-109084

NUT, 1/4-20 HEX

$

$

Currently unavailable

Cub Cadet IH-179792

SCREW, 1/4-20 X 9/16 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER, 1/4 MED LOCK

$

$

Currently unavailable

21

GENERATOR ASSY

Note: REFER TO GENERATOR AND CONNECTIONS

$

$

Not available

22

Cub Cadet IH-376849-R91

LIGHT ASSY, HEAD

$

$

Currently unavailable

Cub Cadet IH-391005-R91

LIGHT ASSY, HEAD

$

$

Currently unavailable

Cub Cadet IH-102637

NUT, 1/2-13 HEX
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-103323

WASHER, 1/2 MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

23

Cub Cadet IH-120302

GROMMET, RUBBER NO. 6 -IN HOOD-

$

$

Currently unavailable

24

Cub Cadet IH-362121-R1

CLIP, HEAD LIGHT CABLE HARNESS
(Superseded to 726-3008)

$4.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-109084

NUT, 1/4-20 HEX

$

$

Currently unavailable

Cub Cadet IH-113955

SCREW, 1/4-20 X 1/2 SLT-RD-HD MACH

$

$

Not available

Cub Cadet IH-103319

WASHER, 1/4 MED LOCK

$

$

Currently unavailable

25

Cub Cadet IH-378424-R91

INDICATOR ASSY, CHARGE
(Superseded to 925-3141)

Note: REPLACES IH-360053-R92

$62.99

$

In Stock, only 4 left!

0

26

Cub Cadet IH-376851-R92

SWITCH ASSY, LIGHTING
(Superseded to IH-376851-R93)

$92.99

$

Usually ships in 3-6 days

0

27

Cub Cadet IH-121629-C1

SWITCH ASSY, NEUTRAL STARTING
(Superseded to 925-3038)

Note: REPLACES IH-382728-R91

$80.99

$

Usually ships in 3-6 days

0

28

Cub Cadet IH-394763-R1

CLIP, SNAP-ON CABLE

$

$

Currently unavailable

29

Cub Cadet IH-376852-R91

HOUSING ASSY, FUSE
(Superseded to 925-3011)

$21.99

$

In Stock, Qty 7

0

Cub Cadet IH-120151

FUSE, CARTRIDGE TYPE AGC 15

$

$

Currently unavailable

30

Cub Cadet IH-547144-R1

CABLE ASSY, MAGNETIC SWITCH TO CRANKING MOTOR

$

$

Currently unavailable

31

Cub Cadet IH-366460-R1

CLIP, FLASHING WARNING LIGHT CABLE
(Superseded to 726-0272)

$7.49

$

Usually ships in 3-6 days

0

32

CABLE, MAGNETIC SWITCH TO CHARGE INDICATOR POSITIVE TERMINAL

Note: ORDER HARNESS IH-547142-R1

$

$

Not available

?33

Cub Cadet IH-404401-R1

CABLE ASSY, FUSE HOUSING TO LIGHTING SWITCH

$

$

Currently unavailable

34

Cub Cadet IH-387311-R1

BODY, CONNECTOR

$

$

Currently unavailable

35

Cub Cadet IH-362121-R1

CLIP, REAR LIGHT CABLE
(Superseded to 726-3008)

$4.99

$

Usually ships in 3-6 days

0

36

Cub Cadet IH-366460-R1

CLIP, TAIL LIGHT CABLE
(Superseded to 726-0272)

$7.49

$

Usually ships in 3-6 days

0

37

Cub Cadet IH-395107-R1

BRACKET, FLASHER MOUNTING CLAMP

$

$

Currently unavailable

Cub Cadet IH-179881

SCREW, 1/2-13 X 1 HEX-HD CAP

$

$

Currently unavailable

38

Cub Cadet IH-354247-R1

BRACKET, VOLTAGE REGULATOR MOUNTING

$

$

Currently unavailable

39

Cub Cadet IH-45569D

SPACER, HEAD LIGHT

$

$

Currently unavailable

40

Cub Cadet IH-351341-R1

POST, HEAD LIGHT

$

$

Currently unavailable

Cub Cadet IH-114507

NUT, 5/8-11 HEX JAM

$

$

Currently unavailable

Cub Cadet IH-103325

WASHER, 5/8 MED LOCK

$

$

Currently unavailable

41

Cub Cadet IH-363660-R1

CLIP, CABLE HARNESS

Note: ON GENERATOR FRONT MOUNTING BOLT

$

$

Currently unavailable

42

Cub Cadet IH-67538-C92

LIGHT ASSY, FLASHING WARNING

Note: ONLY SERVICEABLE ITEM IS LAMP IH-9417866

$

$

Not available

Cub Cadet IH-120371

NUT 1/2-20 C-2 HEX

$

$

Currently unavailable

Cub Cadet IH-135629

WASHER 1/2 C-2 EXT TOOTH LOCK

$

$

Currently unavailable

43

Cub Cadet IH-394262-R1

GASKET, FLASHING WARNING LIGHT

$

$

Currently unavailable

44

Cub Cadet IH-394132-R91

FLASHER ASSY, WARNING LIGHT

$

$

Currently unavailable

45

Cub Cadet IH-394133-R1

CLAMP, FLASHER MOUNTING

$

$

Currently unavailable

Cub Cadet IH-109084

NUT, 1/4-20 HEX

$

$

Currently unavailable

Cub Cadet IH-179791

SCREW, 1/4-20 X 1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-446179

WASHER, 1/4 X 1/2 X .036 ZND

$

$

Currently unavailable

46

Cub Cadet IH-394134-R1

ABSORBER, FLASHER MOUNTING

$

$

Currently unavailable

47

Cub Cadet IH-394607-R1

BRACKET, FENDER MOUNTING

$

$

Currently unavailable

Cub Cadet IH-102635

NUT, 3/8-16 HEX.

$

$

Currently unavailable

Cub Cadet IH-179837

SCREW, 3/8-16 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

Cub Cadet IH-103341

WASHER, 13/32 X 13/16 X .051

$

$

Not available

48

Cub Cadet IH-404389-R1

CABLE ASSY, FLASHER TO LIGHT

$

$

Currently unavailable

49

CABLE, FLASHING WARNING LIGHT TO LIGHTING SWITCH -BLACK-

Note: ORDER HARNESS, IH-547142-R1

$

$

Not available

50

Cub Cadet IH-547145-R1

HARNESS ASSY, NEUTRAL STARTING SWITCH

$

$

Currently unavailable

51

Cub Cadet IH-547147-R1

BRACKET, NEUTRAL STARTING SWITCH

$

$

Currently unavailable

Cub Cadet IH-16897-R1

BOLT, 5/16-18 X 3/4 ZND CRG
(Superseded to 710-0451)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 ZND REG LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

52

Cub Cadet IH-121613-C1

SWITCH ASSY, MAGNETIC
(Superseded to 925-3001)

Note: REPLACES IH-545756-R2

$58.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120614

NUT, 10-32 ZND HEX MACH SCREW
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

Cub Cadet IH-120217

WASHER, NO. 10 ZND REG LOCK
(Superseded to 736-0722)

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 ZND REG LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-611344-R1

WASHER, 11/32 X 7/8 X 16 GA C-Z
(Superseded to 736-0195)

Note: 1 OR AS REQUIRED

$

$

Not available

Cub Cadet IH-180016

SCREW, 1/4-20 X 1/2 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120375

NUT, 1/4-20 ZND HEX
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 17

0

Cub Cadet IH-405236-R1

CABLE ASSY, FLASHING WARNING LIGHT JUMPER

Note: FOR USE WHEN FLASHING WARNING LIGHT IS NOT USED

$

$

Currently unavailable
