Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 224705 - 229999) Rockshaft, Leveling Screw, Lateral Link & Locking Link (Cub Tractors) Parts Diagram

Cub Lo-Boy Tractor

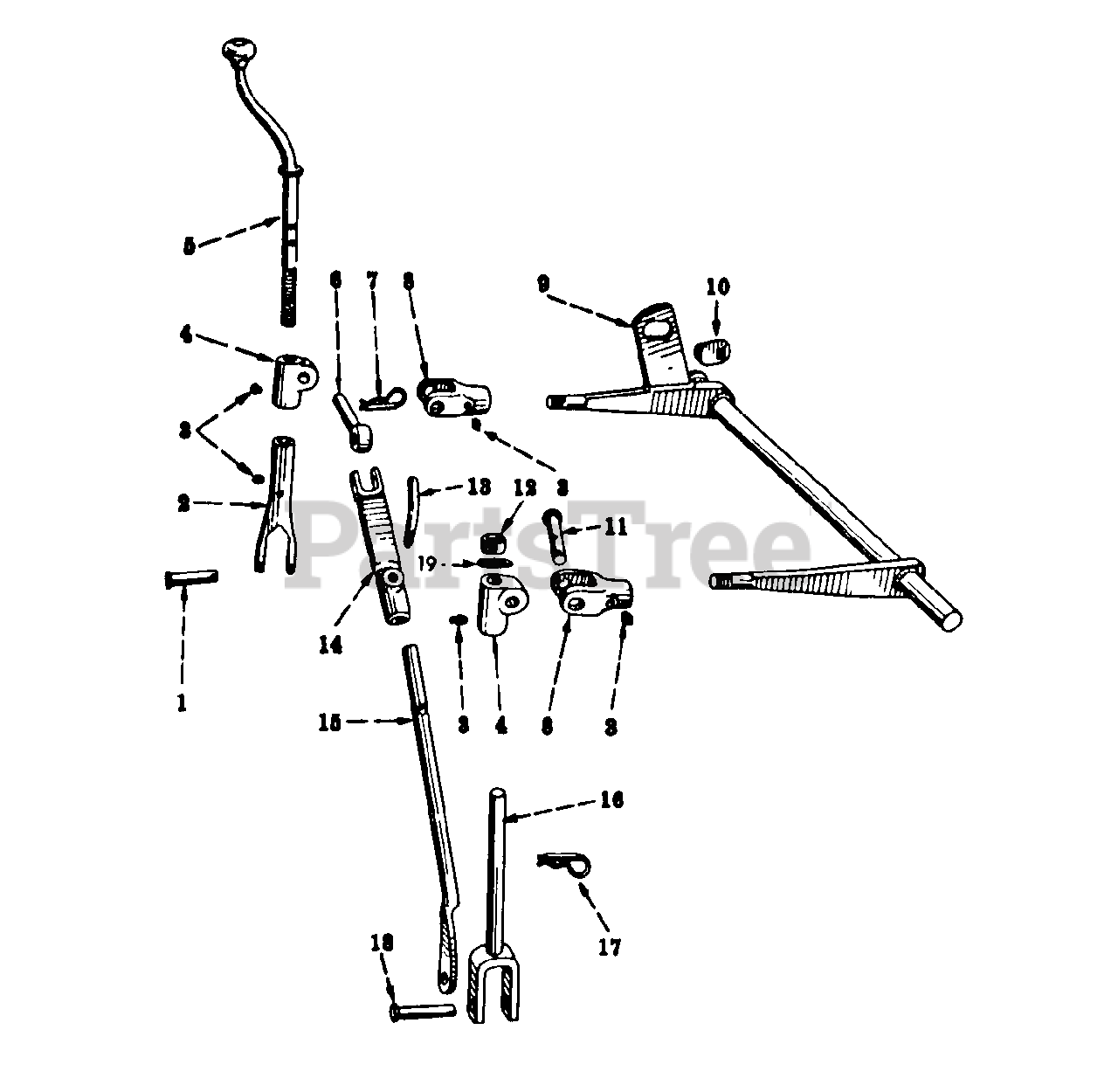

Rockshaft, Leveling Screw, Lateral Link & Locking Link (Cub Tractors) Parts Diagram

  • Title

1

Cub Cadet IH-518505-R1

PIN, 3/4 X 3 STD-HD DRILLED

Note: LEVELING SCREW HOUSING

$

$

Currently unavailable

Cub Cadet IH-13095-R1

PIN, 1/4 X 1-1/4 SELF-OPENING COT

$

$

Currently unavailable

2

Cub Cadet IH-520128-R1

HOUSING, LEVELING SCREW

$

$

Currently unavailable

3

Cub Cadet IH-109461

FITTING, 1/8-27 STR LUB

$

$

Not available

4

Cub Cadet IH-520064-R1

SWIVEL, UPPER LATERAL LINK

$

$

Currently unavailable

5

Cub Cadet IH-520137-R11

SCREW ASSY, LEVELING

$

$

Currently unavailable

Cub Cadet IH-441012-R1

PIN, 1/4 X 7/8 ESNA ROLL
(Superseded to 715-3011)

$

$

Not available

Cub Cadet IH-PO12898

WASHER, 29-32 X ]-1/2 X 11 GA

$

$

Currently unavailable

6

Cub Cadet IH-520075-R1

SWIVEL, DIAGONAL LINK

$

$

Currently unavailable

Cub Cadet IH-33405A

WASHER, DIAGONAL LINK SWIVEL

Note: AS REQUIRED

$

$

Currently unavailable

7

Cub Cadet IH-520175-R11

PIN ASSY, QUICK-ATTACHABLE COT.

$

$

Not available

8

Cub Cadet IH-520126-R1

SWIVEL, ROCKSHAFT ARM

$

$

Currently unavailable

9

Cub Cadet IH-520131-R11

ROCKSHAFT ASSY

$

$

Currently unavailable

Cub Cadet IH-13170-R1

PIN, 5/16 X 2-1/4 SELF-OPENING COT.

$

$

Currently unavailable

10

Cub Cadet IH-520122-R1

BUSHING, LIFT ARM

$

$

Currently unavailable

11

Cub Cadet IH-520110-R1

PIN, ROCKSHAFT ARM RH PIVOT

Note: TO LINK SWIVEL

$

$

Currently unavailable

Cub Cadet IH-520175-R1

PIN, 3/16 QUICK-ATTACHABLE COT.

$

$

Not available

12

Cub Cadet IH-520106-R1

COLLAR, LATERAL LINK

$

$

Currently unavailable

Cub Cadet IH-13034-R1

PIN, 1/8 X 5/8 SELF-OPENING COT.

$

$

Currently unavailable

Cub Cadet IH-P13254

PIN, 5/16 X 1-9/16 STD-HD OLD

$

$

Currently unavailable

13

Cub Cadet IH-520083-R1

BOLT, DIAGONAL LINK STOP LOCK

$

$

Currently unavailable

14

Cub Cadet IH-520127-R1

STOP, DIAGONAL LINK

$

$

Currently unavailable

Cub Cadet IH-520175-R1

PIN, 3/16 QUICK ATTACHABLE COT

$

$

Not available

Cub Cadet IH-Q3548

PIN, 1/2 X 2-1/16 STD-HD DLD

$

$

Currently unavailable

15

Cub Cadet IH-520142-R1

LINK, DIAGONAL

$

$

Currently unavailable

Cub Cadet IH-17098-R1

PIN, 3/8 X 1-3/4 ESNA ROLL
(Superseded to 915-0125)

$12.99

$

Usually ships in 3-6 days

0

16

Cub Cadet IH-520146-R11

LINK ASSY, LATERAL

$

$

Currently unavailable

Cub Cadet IH-PO12898

WASHER, 29/32 X 1-1/2 X 11 GA

$

$

Currently unavailable

17

Cub Cadet IH-520175-R11

PIN ASSY, QUICK-ATTACHABLE COT

$

$

Not available

18

Cub Cadet IH-520162-R1

PIN, LATERAL LINK

$

$

Currently unavailable

Cub Cadet IH-13095-R1

PIN, 1/4 X 1-1/4 SELF-OPENING COT

$

$

Currently unavailable

19

Cub Cadet IH-521128-R1

SHIM, SCREW OR LATERAL LINK LEVELING -22 GA-

Note: AS REQUIRED

$

$

Currently unavailable
