Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 224705 - 229999) Rear Fenders and Support Plate Parts Diagram

Cub Lo-Boy Tractor

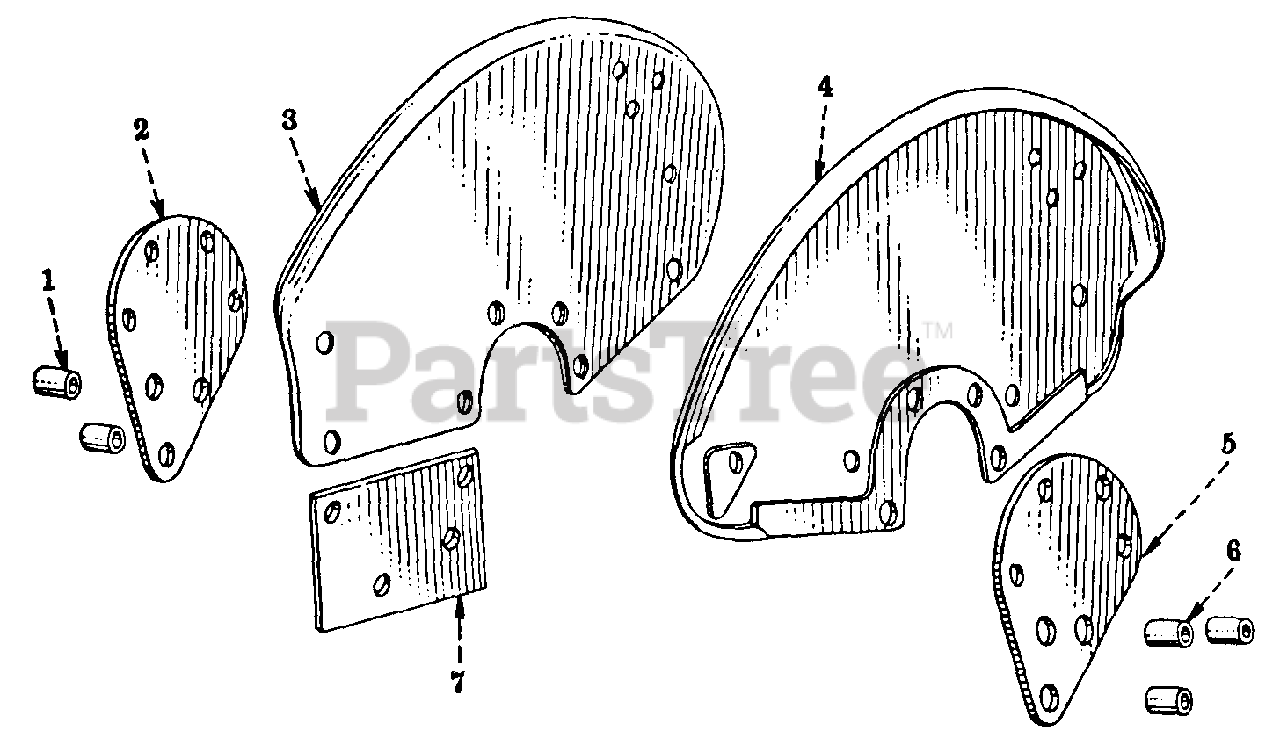

Rear Fenders and Support Plate Parts Diagram

  • Title

1

Cub Cadet IH-364030-R1

SPACER, FENDER SUPPORT PLATE 1-1/2 IN. LONG

Note: (ONE USED ON TRACTORS WITH FAST-HITCH; CUB LO-BOY TRACTORS)

$

$

Currently unavailable

1

Cub Cadet IH-521426-R1

SPACER, FENDER SUPPORT PLATE 15/16 IN. LONG

Note: (ONE USED ON TRACTORS WITH FAST-HITCH; CUB LO-BOY TRACTORS)

$

$

Currently unavailable

2

Cub Cadet IH-364029-R1

PLATE, FENDER SUPPORT

Note: (CUB LO-BOY TRACTORS)

$

$

Currently unavailable

Cub Cadet IH-17592-R1

BOLT, 5/8-11 X 2-5/8 HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-103325

WASHER, 5/8 MED LOCK

$

$

Currently unavailable

3

Cub Cadet IH-362901-R92

FENDER ASSY, RH REAR

$

$

Currently unavailable

Cub Cadet IH-102635

NUT, 3/8-16 HEX

$

$

Currently unavailable

Cub Cadet IH-179839

SCREW, 3/8-16 X 1 HEX-HD CAP

Note: (CUB LO-BOY TRACTORS)

$

$

Not available

Cub Cadet IH-179847

SCREW, 3/8-16 X 2 HEX-HD CAP

Note: (CUB TRACTORS)

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

4

Cub Cadet IH-362901-R92

FENDER ASSY, LH REAR

$

$

Currently unavailable

Cub Cadet IH-102635

NUT, 3/8-16 HEX

$

$

Currently unavailable

Cub Cadet IH-179839

SCREW, 3/8-16 X 1 HEX-HD CAP

Note: (CUB LO-BOY TRACTORS)

$

$

Not available

Cub Cadet IH-179844

SCREW, 3/8-16 X 1-5/8 HEX-HD CAP

Note: (CUB TRACTORS)

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

5

Cub Cadet IH-364029-R1

PLATE, FENDER SUPPORT

Note: (CUB LO-BOY TRACTORS)

$

$

Currently unavailable

Cub Cadet IH-17592-R1

BOLT, 5/8-11 X 2-5/8 HEX-HD MACH

Note: (TRACTORS WITHOUT FAST-HITCH)

$

$

Currently unavailable

Cub Cadet IH-17525-R1

BOLT, 5/8-11 X 2 HEX-HD MACH

Note: (TRACTORS WITH FAST-HITCH)

$

$

Currently unavailable

Cub Cadet IH-17578-R1

BOLT, 5/8-11 X 2-1/2 HEX-HD MACH

Note: (TRACTORS WITH FAST-HITCH)

$

$

Currently unavailable

Cub Cadet IH-103325

WASHER, 5/8 MED LOCK

Note: (TRACTORS WITHOUT FAST-HITCH)

$

$

Currently unavailable

6

Cub Cadet IH-364030-R1

SPACER, FENDER SUPPORT PLATE 1-1/2 IN LONG

Note: (CUB LO-BOY TRACTORS WITHOUT FAST-HITCH)

$

$

Currently unavailable

6

Cub Cadet IH-521426-R1

SPACER, FENDER SUPPORT PLATE 15/16 IN LONG

Note: (CUB LO-BOY TRACTORS WITH FAST-HITCH)

$

$

Currently unavailable

7

Cub Cadet IH-364031-R1

BRACE, RH FENDER

Note: (CUB LO-BOY TRACTORS)

$

$

Currently unavailable

Cub Cadet IH-102634

NUT, 5/16-18 HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-179816

SCREW, 5/16-18 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

Cub Cadet IH-103340

WASHER, 11/32 X 11/16 X 16 GA

$

$

Currently unavailable
