Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 224705 - 229999) Hitches With Depth Adjusting Crank (Cub Tractors) Parts Diagram

Cub Lo-Boy Tractor

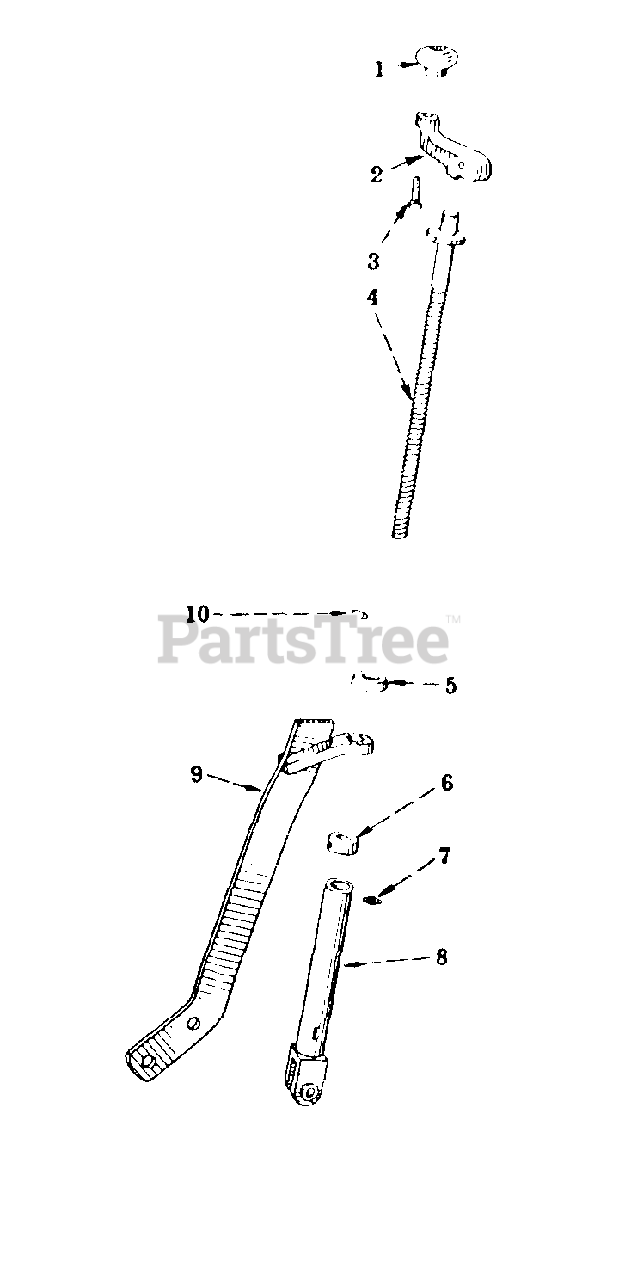

Hitches With Depth Adjusting Crank (Cub Tractors) Parts Diagram

  • Title

1

IH-53717DA

KNOB, DEPTH ADJUSTING SCREW HANDLE

$

$

Not available

2

Cub Cadet IH-521402-R1

HANDLE, DEPTH ADJUSTING SCREW

$

$

Currently unavailable

Cub Cadet IH-570483-R1

PIN, 5/16 X 1-1/2 ROLL

$

$

Currently unavailable

3

Cub Cadet IH-521672-R1

PIN, 1/2 X 2-9/16 ESNA ROLL

$

$

Currently unavailable

4

Cub Cadet IH-522691-R11

SCREW ASSY, DEPTH ADJUSTING

$

$

Currently unavailable

5

Cub Cadet IH-66991-R91

BEARING, THRUST

$

$

Currently unavailable

6

Cub Cadet IH-521413-R1

COLLAR, DEPTH ADJUSTING SCREW

$

$

Currently unavailable

Cub Cadet IH-576483-R1

PIN, 5/16 X 1-1/2 ESNA ROLL
(Superseded to 715-3002)

$8.99

$

Usually ships in 3-6 days

0

7

Cub Cadet IH-109461

FITTING, 1/8-27 STR LUB

$

$

Not available

8

Cub Cadet IH-522690-R1

HOUSING, DEPTH ADJUSTING SCREW

$

$

Currently unavailable

Cub Cadet IH-17552-R1

BOLT, 5/8-11 X 2-1/4 HEX-HD MACH

$

$

Currently unavailable

9

Cub Cadet IH-522694-R11

SUPPORT ASSY, DEPTH ADJUSTING SCREW

$

$

Currently unavailable

Cub Cadet IH-17475-R1

BOLT, 5/8-11 X 1-1/2 HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-103325

WASHER, 5/8 MED LOCK

$

$

Currently unavailable

10

Cub Cadet IH-441012-R1

PIN, 1/4 X 7/8 ESNA ROLL
(Superseded to 715-3011)

$

$

Not available
