Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 224705 - 229999) Front Axle and Steering Knuckle Parts Diagram

Cub Lo-Boy Tractor

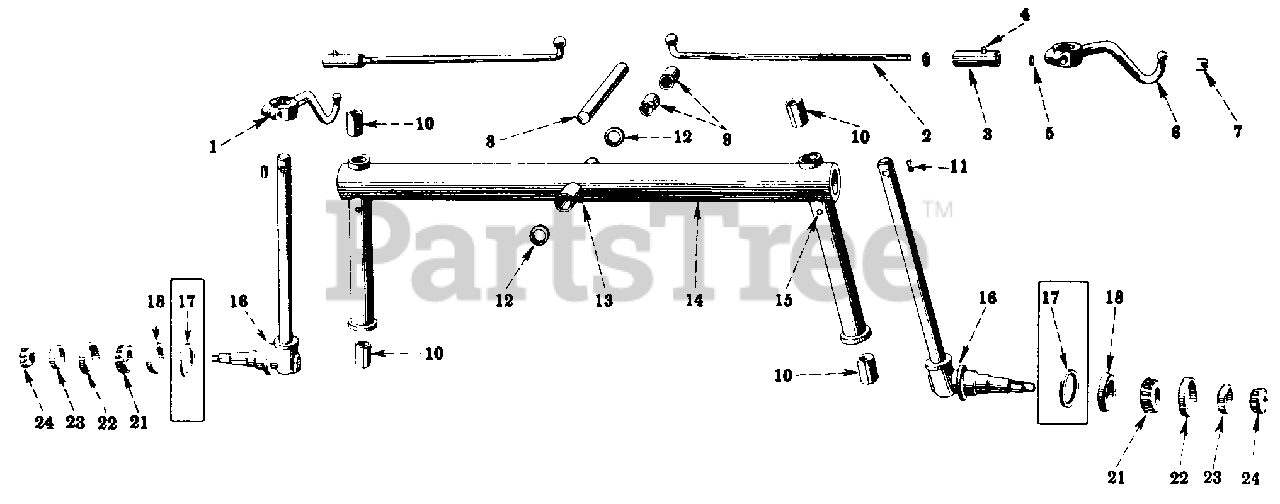

Front Axle and Steering Knuckle Parts Diagram

  • Title

1

Cub Cadet IH-350776-R2

ARM, STEERING KNUCKLE LH

Note: (ORDER PACKAGE, IH-355429-R91; SERIAL NO. 138484 & BELOW)

$

$

Currently unavailable

Cub Cadet IH-356711-R1

ARM, STEERING KNUCKLE LH

Note: (SERIAL NO 138485 & ABOVE)

$

$

Currently unavailable

Cub Cadet IH-271505

NUT, 7/16-20 HEX

$

$

Currently unavailable

Cub Cadet IH-181406

SCREW, 7/16-20 X 2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103322

WASHER, 7/16 MED LOCK

$

$

Currently unavailable

2

Cub Cadet IH-351387-R11

TIE ROD ASSY

$

$

Currently unavailable

Cub Cadet IH-114496

NUT 1/2-20 HEX JAM

$

$

Currently unavailable

3

Cub Cadet IH-350779-R1

END, TIE ROD ADJUSTABLE

$

$

Not available

Cub Cadet IH-108641

PIN, 1/8 X 1-3/8 COT.

$

$

Currently unavailable

4

Cub Cadet IH-109454

FITTING, 1/4-28 NS TAPER STR LUB

$

$

Not available

5

Cub Cadet IH-350780-R1

SEAT, TIE ROD BALL

$

$

Not available

6

Cub Cadet IH-350777-R2

ARM, STEERING KNUCKLE RH

Note: (ORDER PACKAGE, IH-3554-R91 SERIAL NO. 138484 & BELOW)

$

$

Currently unavailable

Cub Cadet IH-356712-R1

ARM, STEERING KNUCKLE RH

Note: (SERIAL NO. 138485 & ABOVE)

$

$

Currently unavailable

Cub Cadet IH-271505

NUT, 7/16-20 HEX

$

$

Currently unavailable

Cub Cadet IH-181406

SCREW, 7/16-20 X 2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103322

WASHER, 7/16 MED LOCK

$

$

Currently unavailable

7

Cub Cadet IH-350781-R1

SEAT, TIE ROD ADJUSTABLE BALL

$

$

Not available

8

Cub Cadet IH-350765-R1

SHAFT, FRONT AXLE PIVOT

$

$

Currently unavailable

9

Cub Cadet IH-350758-R1

BUSHING, FRONT AXLE PIVOT

$

$

Currently unavailable

10

Cub Cadet IH-350761-R1

BUSHING, STEERING KNUCKLE POST TUBE

$

$

Currently unavailable

11

Cub Cadet IH-383806-R1

KEY, .25 X .88 SQ PARALLEL

$

$

Currently unavailable

12

Cub Cadet IH-351957-R1

WASHER, FRONT AXLE PIVOT THRUST

$

$

Not available

13

Cub Cadet IH-109454

FITTING, 1/4-28 NS TAPER STR LUB

$

$

Not available

14

Cub Cadet IH-351386-R11

AXLE, FRONT

Note: (W/TWO BUSHINGS, IH-350758-R1, AND FOUR BUSHINGS, IH-350761-R1)

$

$

Currently unavailable

15

Cub Cadet IH-109454

FITTING, 1/4-28 NS TAPER STR LUB

$

$

Not available

16

Cub Cadet IH-350766-R11

KNUCKLE W/OIL SEAL, IH-350769-R91 AND WASHER, IH-350768-R1, STEERING

Note: (ORDER LH ARM IH-356711-R1, OR RH ARM IH-356712-R1, KNUCKLE IH-356714-R93, KEY IH-383806-R1, NUT IH-271505, SCREW IH-181406 AND WASHER IH-103322. SERIAL NO. 138484 & BELOW)

$

$

Currently unavailable

16

Cub Cadet IH-356714-R93

KNUCKLE W/OIL SEAL, IH-350769-R91 AND WASHER, IH-350768-R1, STEERING

Note: (ALSO ORDER KEY, IH-383806-R1; SERIAL NO 138485 & ABOVE)

$

$

Currently unavailable

Cub Cadet IH-103385

PIN, 1/8 X 1 COT.

$

$

Currently unavailable

Cub Cadet IH-102648

NUT, 9/16-18 SLT HEX

$

$

Currently unavailable

Cub Cadet IH-103344

WASHER, 19/32 X 1-3/16 X 13 GA
(Superseded to 936-0272)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet IH-350768-R1

WASHER, FRONT WHEEL FELT

$

$

Currently unavailable

18

Cub Cadet IH-350769-R91

SEAL, FRONT WHEEL OIL

$

$

Currently unavailable

21

Cub Cadet IH-350771-R91

BEARING ASSY, FRONT WHEEL INNER CONE

$

$

Not available

22

Cub Cadet IH-350772-R1

BEARING, FRONT WHEEL INNER CUP

$

$

Not available

23

Cub Cadet IH-350775-R1

BEARING, FRONT WHEEL OUTER CUP

$

$

Not available

24

Cub Cadet IH-350774-R91

BEARING ASSY, FRONT WHEEL, OUTER CONE

$

$

Not available
