Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 224705 - 229999) Fixed Drawbar & Swinging Drawbar - Cub Tractors Parts Diagram

Cub Lo-Boy Tractor

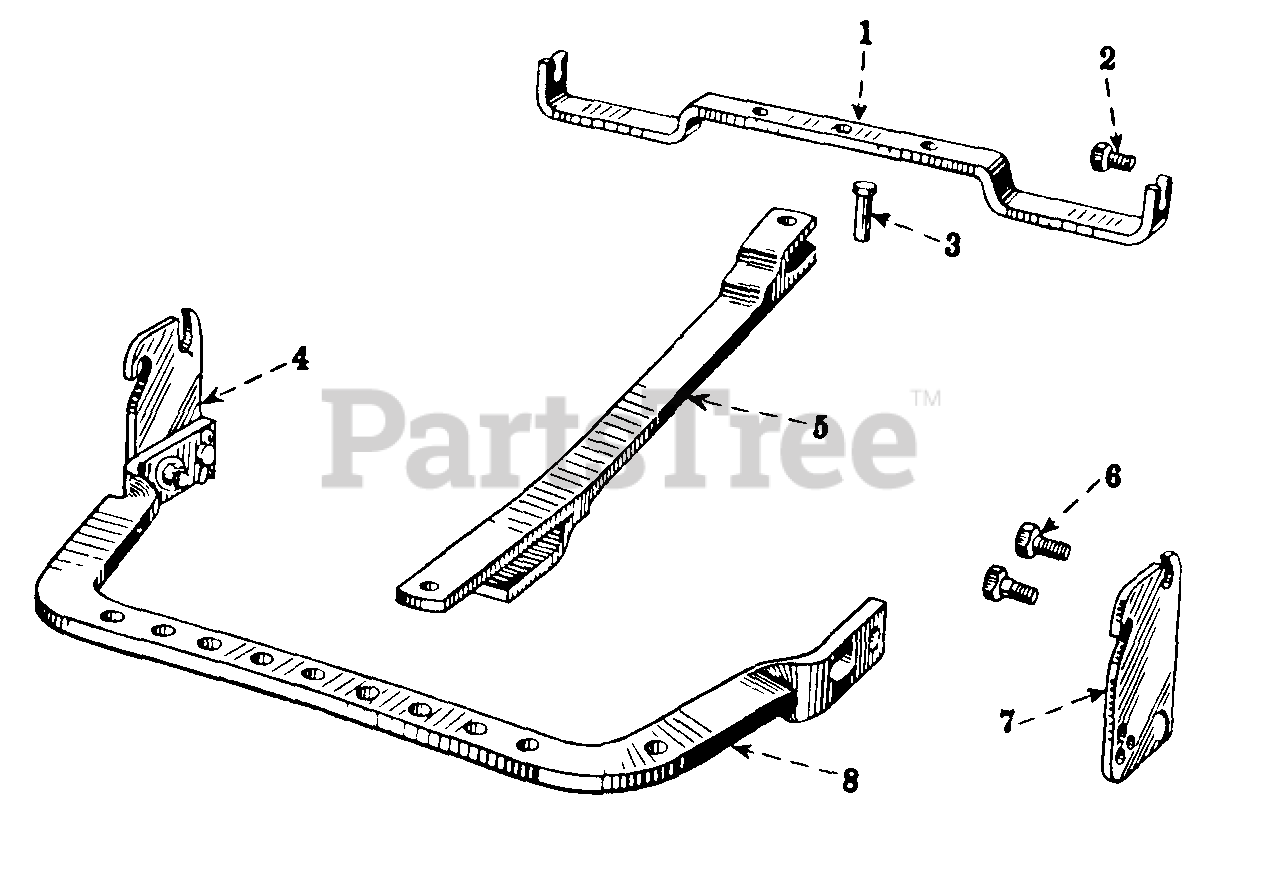

Fixed Drawbar & Swinging Drawbar - Cub Tractors Parts Diagram

  • Title

1

Cub Cadet IH-351133-R1

BAR, SWINGING DRAWBAR ANCHOR

$

$

Currently unavailable

Cub Cadet IH-352714-R1

SPACER, SWINGING DRAWBAR ANCHOR BAR

Note: AS REQUIRED

$

$

Currently unavailable

2

Cub Cadet IH-351679-R1

BOLT, SWINGING DRAWBAR ANCHOR BAR

$

$

Currently unavailable

3

Cub Cadet IH-Q3558

PIN, SWINGING DRAWBAR PIVOT

$

$

Currently unavailable

Cub Cadet IH-103408

PIN, 3/16 X 1-1/4 COT.

$

$

Currently unavailable

4

Cub Cadet IH-350964-R11

BRACKET ASSY, QUICK ATTACHABLE DRAWBAR LH

$

$

Currently unavailable

Cub Cadet IH-103419

PIN 1/4 X 1-1/4 COT.

$

$

Currently unavailable

5

Cub Cadet IH-351430-R11

DRAWBAR ASSY, SWINGING

$

$

Currently unavailable

6

Cub Cadet IH-351879-R1

BOLT, DRAWBAR BRACKET

$

$

Currently unavailable

7

Cub Cadet IH-350985-R11

BRACKET ASSY, QUICK ATTACHABLE DRAWBAR RH

$

$

Currently unavailable

Cub Cadet IH-103419

PIN, 1/4 X 1-1/4 COT

$

$

Currently unavailable

8

Cub Cadet IH-350963-R1

DRAWBAR, QUICK ATTACHABLE

$

$

Currently unavailable

Cub Cadet IH-102637

NUT, 1-2-13 HEX.
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-179887

SCREW, 1/2-13 X 1-3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103323

WASHER, 1/2 MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

Cub Cadet IH-106265

WASHER, 9/16 X 1-3/8 X 12 GA

$

$

Currently unavailable
