Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 224705 - 229999) Final Drive Parts Diagram

Cub Lo-Boy Tractor

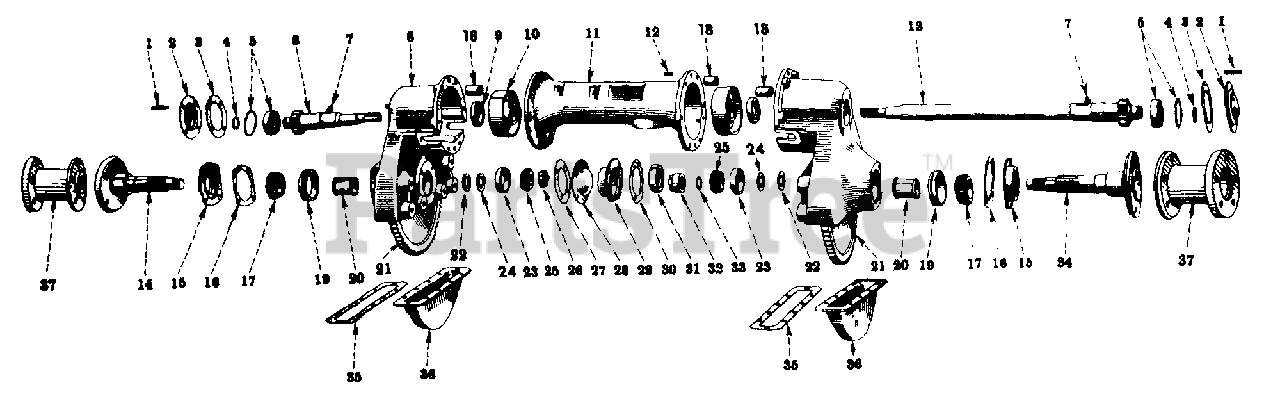

Final Drive Parts Diagram

  • Title

1

Cub Cadet IH-18880D

STUD, DIFFERENTIAL SHAFT OUTER BEARING COVER

Note: CUB TRACTORS W/SERIAL NO. 52199 & BELOW

$

$

Currently unavailable

Cub Cadet IH-102635

NUT, 3/8-16 HEX

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

2

Cub Cadet IH-350803-R1

RETAINER, DIFFERENTIAL SHAFT BEARING

$

$

Currently unavailable

Cub Cadet IH-179835

SCREW, 3/8-16 X 5/8 HEX-HD CAP
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

3

Cub Cadet IH-350804-R1

GASKET, DIFFERENTIAL SHAFT BEARING RETAINER

$

$

Not available

4

Cub Cadet IH-350802-R1

RING, DIFFERENTIAL SHAFT BEARING LOCK

$

$

Currently unavailable

5

Cub Cadet IH-ST364

BEARING, DIFFERENTIAL SHAFT BALL

$

$

Not available

6

Cub Cadet IH-350800-R2

SHAFT, DIFFERENTIAL LH - 12 TEETH

$

$

Currently unavailable

7

Cub Cadet IH-124552

KEY, 3/16 X 1 WOODRUFF NO 13 - BRAKE DRUM

$

$

Not available

8

Cub Cadet IH-350806-R41

HOUSING ASSY, REAR AXLE

Note: CUB TRACTORS W/SERIAL NO. 173600 AND BELOW - ORDER PACKAGE, IH-360043-R91 - COMPOSED OF THE FOLLOWING 4 ITEMS

$

$

Currently unavailable

Cub Cadet IH-ST973

BEARING

$

$

Not available

Cub Cadet IH-350809-R1

BEARING

$

$

Currently unavailable

Cub Cadet IH-350806-R4

HOUSING

Note: NOT AVAILABLE SEPARATELY

$

$

Currently unavailable

Cub Cadet IH-381907-R91

OIL SEAL

$

$

Not available

Cub Cadet IH-102635

NUT, 3/8-16 HEX

$

$

Currently unavailable

Cub Cadet IH-179835

SCREW, 3/8-16 X 5/8 HEX-HD CAP
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

Cub Cadet IH-179839

SCREW, 3/8-16 X 1 HEX-HD CAP

$

$

Not available

Cub Cadet IH-179842

SCREW, 3/8-16 X 1-3/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

8

Cub Cadet IH-350806-R51

HOUSING ASSY, REAR AXLE

Note: CUB TRACTORS W/SERIAL NO. 173601 AND ABOVE ORDER PACKAGE, 360043-R91 - COMPOSED OF THE FOLLOWING 6 ITEMS

$

$

Currently unavailable

Cub Cadet IH-ST973

BEARING

$

$

Not available

Cub Cadet IH-350809-R1

BEARING

$

$

Currently unavailable

Cub Cadet IH-358756-R1

BUSHING

$

$

Currently unavailable

Cub Cadet IH-350806-R5

HOUSING

Note: NOT AVAILABLE SEPARATELY

$

$

Currently unavailable

Cub Cadet IH-381907-R91

OIL SEAL

$

$

Not available

Cub Cadet IH-9409949

PLUG, 3/4-14 AUTO SQ-SOC PIPE

$

$

Currently unavailable

Cub Cadet IH-102635

NUT, 3/8-16 HEX

$

$

Currently unavailable

Cub Cadet IH-179839

SCREW, 3/8-16 X 1 HEX-HD CAP

$

$

Not available

Cub Cadet IH-179843

SCREW, 3/8-16 X 1-1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

8

Cub Cadet IH-364026-R31

HOUSING ASSY, REAR AXLE LH

Note: CUB LO-BOY TRACTORS - COMPOSED OF THE FOLLOWING 6 ITEMS

$

$

Currently unavailable

Cub Cadet IH-ST973

BEARING

$

$

Not available

Cub Cadet IH-350809-R1

BEARING

$

$

Currently unavailable

Cub Cadet IH-358756-R1

BUSHING

$

$

Currently unavailable

Cub Cadet IH-364026-R3

HOUSING

Note: NOT AVAILABLE SEPARATELY

$

$

Currently unavailable

Cub Cadet IH-381907-R91

OIL SEAL

$

$

Not available

Cub Cadet IH-445751

PLUG, 1/2 SQ -SOCKET STEEL PIPE

$

$

Currently unavailable

Cub Cadet IH-179843

SCREW, 3/8-16 X 1-1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-138244

SCREW, 3/8-16 X 1-1/2 HEX-SOC-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

8

Cub Cadet IH-364027-R31

HOUSING ASSY, REAR AXLE RH

Note: CUB LO-BOY TRACTORS - COMPOSED OF THE FOLLOWING 6 ITEMS

$

$

Currently unavailable

Cub Cadet IH-ST973

BEARING

$

$

Not available

Cub Cadet IH-350809-R1

BEARING

$

$

Currently unavailable

Cub Cadet IH-358756-R1

BUSHING

$

$

Currently unavailable

Cub Cadet IH-364027-R3

HOUSING

Note: NOT AVAILABLE SEPARATELY

$

$

Currently unavailable

Cub Cadet IH-381907-R91

OIL SEAL

$

$

Not available

Cub Cadet IH-445751

PLUG, 1/2 SQ-SOCKET STEEL PIPE

$

$

Currently unavailable

Cub Cadet IH-102635

NUT, 3/8-16 HEX

$

$

Currently unavailable

Cub Cadet IH-179846

SCREW, 3/8-16 X 1-7/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

9

Cub Cadet IH-381907-R91

SEAL, DIFFERENTIAL SHAFT PINION OIL

$

$

Not available

10

Cub Cadet IH-350805-R2

DRUM BRAKE

$

$

Currently unavailable

Cub Cadet IH-102634

NUT, 5/16-18 HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-360270-R1

SCREW, LOCK

$

$

Not available

11

Cub Cadet IH-350798-R21

HOUSING ASSY, DIFFERENTIAL SHAFT

Note: COMPOSED OF 1 BUSHING 358756-R1, 2 DOWEL 350799-R1 & 1 HOUSING 350798-R2

$

$

Currently unavailable

Cub Cadet IH-179840

SCREW, 3/8-16 X 1-1/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

12

Cub Cadet IH-350799-R1

DOWEL, DIFFERENTIAL SHAFT HOUSING

$

$

Not available

13

Cub Cadet IH-350801-R2

SHAFT, DIFFERENTIAL RH - 12 TEETH

$

$

Not available

14

Cub Cadet IH-350815-R2

AXLE, LH REAR

$

$

Currently unavailable

15

Cub Cadet IH-350822-R91

SEAL, REAR AXLE OIL

$

$

Currently unavailable

Cub Cadet IH-179835

SCREW, 3/8-16 X 5/8 HEX-HD CAP
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

16

Cub Cadet IH-350823-R1

GASKET, REAR AXLE OIL SEAL

$

$

Currently unavailable

17

Cub Cadet IH-ST2047

BEARING ASSY, REAR AXLE OUTER CONE

$

$

Not available

18

Cub Cadet IH-358756-R1

BUSHING, ACTUATING TOGGLE

Note: CUB TRACTORS W/SERIAL NO. 173601 & ABOVE, ALL CUB LO-BOY TRACTORS

$

$

Currently unavailable

19

Cub Cadet IH-ST973

BEARING, REAR AXLE OUTER CUP

$

$

Not available

20

Cub Cadet IH-350813-R1

SPACER, REAR AXLE BEARING

Note: CUB TRACTORS W/SERIAL NO. 19350 AND BELOW

$

$

Currently unavailable

Cub Cadet IH-353162-R1

SPACER, REAR AXLE BEARING

Note: CUB TRACTORS W/SERIAL NO. 19351 & ABOVE, ALL CUB LO-BOY TRACTORS

$

$

Currently unavailable

21

Cub Cadet IH-350824-R2

GEAR REAR AXLE DRIVE -70 TEETH

$

$

Currently unavailable

22

Cub Cadet IH-350825-R1

SPACER, REAR AXLE DRIVE GEAR

Note: CUB TRACTORS W/SERIAL NO. 19350 AND BELOW

$

$

Currently unavailable

Cub Cadet IH-353163-R3

SPACER, REAR AXLE DRIVE GEAR

Note: CUB TRACTORS W/SERIAL NO 19351 & ABOVE, ALL CUB LO-BOY TRACTORS

$

$

Currently unavailable

23

Cub Cadet IH-350809-R1

BEARING, REAR AXLE INNER CUP

$

$

Currently unavailable

24

Cub Cadet IH-353164-R1

SHIM, REAR AXLE DRIVE GEAR

Note: LIGHT - 004 - AS REQUIRED

$

$

Not available

Cub Cadet IH-353165-R1

SHIM, REAR AXLE DRIVE GEAR

Note: MEDIUM - 008 - AS REQUIRED

$

$

Not available

Cub Cadet IH-353166-R1

SHIM, REAR AXLE DRIVE GEAR

Note: HEAVY - 015 - AS REQUIRED

$

$

Not available

Cub Cadet IH-353167-R1

SHIM, REAR AXLE DRIVE GEAR

Note: EXTRA HEAVY - 030 - AS REQUIRED

$

$

Not available

25

Cub Cadet IH-350808-R91

BEARING ASSY, REAR AXLE INNER CONE

$

$

Not available

26

Cub Cadet IH-350817-R1

NUT, 9/16 LH REAR AXLE

$

$

Not available

Cub Cadet IH-103387

PIN, 1/8 X 1-1/2 COT.

$

$

Currently unavailable

27

Cub Cadet IH-350820-R1

GASKET, LH REAR AXLE BEARING CAP

$

$

Currently unavailable

28

Cub Cadet IH-350821-R1

CAP, IH REAR AXLE BEARING

$

$

Currently unavailable

Cub Cadet IH-179814

SCREW, 5/16-18 X 5/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

29

Cub Cadet IH-350819-R11

RETAINER W/OIL SEAL, 382220-R91, REAR AXLE NUT RH

$

$

Currently unavailable

Cub Cadet IH-350821-R1

CAP, REAR AXLE BEARING RH

Note: CUB LO-BOY TRACTORS

$

$

Currently unavailable

Cub Cadet IH-179814

SCREW, 5/16-18 X 5/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

30

Cub Cadet IH-350820-R1

GASKET, OIL SEAL RETAINER OR RH BRG CAP

$

$

Currently unavailable

31

Cub Cadet IH-382220-R91

SEAL, REAR AXLE NUT RH RETAINER OIL

Note: CUB TRACTORS

$

$

Not available

32

Cub Cadet IH-350816-R1

NUT, 1-1/8 THICK RH REAR AXLE

$

$

Currently unavailable

Cub Cadet IH-350817-R1

NUT, 9/16 THICK RH REAR AXLE

Note: CUB LO-BOY TRACTORS

$

$

Not available

Cub Cadet IH-103387

PIN, 1/8 X 1-1 2 COT

$

$

Currently unavailable

33

Cub Cadet IH-350818-R1

RING, REAR AXLE NUT RH SEAL

Note: CUB TRACTORS

$

$

Not available

34

Cub Cadet IH-350814-R2

AXLE, RH REAR - CUB TRACTORS

$

$

Currently unavailable

Cub Cadet IH-350815R

AXLE, RH REAR - CUB LO-BOY TRACTORS

$

$

Currently unavailable

35

Cub Cadet IH-350827-R1

GASKET, REAR AXLE HOUSING PAN

$

$

Not available

36

Cub Cadet IH-350826-R1

PAN, REAR AXLE HOUSING

$

$

Currently unavailable

Cub Cadet IH-179812

SCREW, 5/16-18 X 1/1 HEX HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

37

Cub Cadet IH-355066-R1

EXTENSION, REAR AXLE

Note: CUB TRACTORS W/HIGH CLEARANCE ATTACHMENT

$

$

Currently unavailable

Cub Cadet IH-355065-R1

BOLT, REAR AXLE EXTENSION

$

$

Currently unavailable

Cub Cadet IH-103323

WASHER, 1/2 MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

Cub Cadet IH-360043-R91

PACKAGE, REAR AXLE HOUSING SERVICE

Note: CUB TRACTORS WILL WORK FOR 340806-R41. 350806-R51 AND 353834-R92 FARMALL CUB 501 TO 173600 CONSISTS OF THE FOLLOWING 11 ITEMS

$

$

Currently unavailable

Cub Cadet IH-ST973

BEARING

$

$

Not available

Cub Cadet IH-350809-R1

BEARING

$

$

Currently unavailable

Cub Cadet IH-35B756-R1

BUSHING

$

$

Currently unavailable

Cub Cadet IH-350806-R5

HOUSING

$

$

Currently unavailable

Cub Cadet IH-381907-R91

OIL SEAL

$

$

Not available

IH-360040-R1

PIN

$

$

Not available

Cub Cadet IH-359865-R1

PIN

$

$

Not available

Cub Cadet IH-9409949

PLUG

$

$

Currently unavailable

Cub Cadet IH-179835

SCREW
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

Cub Cadet IH-57406H

SPACER

$

$

Currently unavailable
