Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 224705 - 229999) Engine Hour Meter Parts Diagram

Cub Lo-Boy Tractor

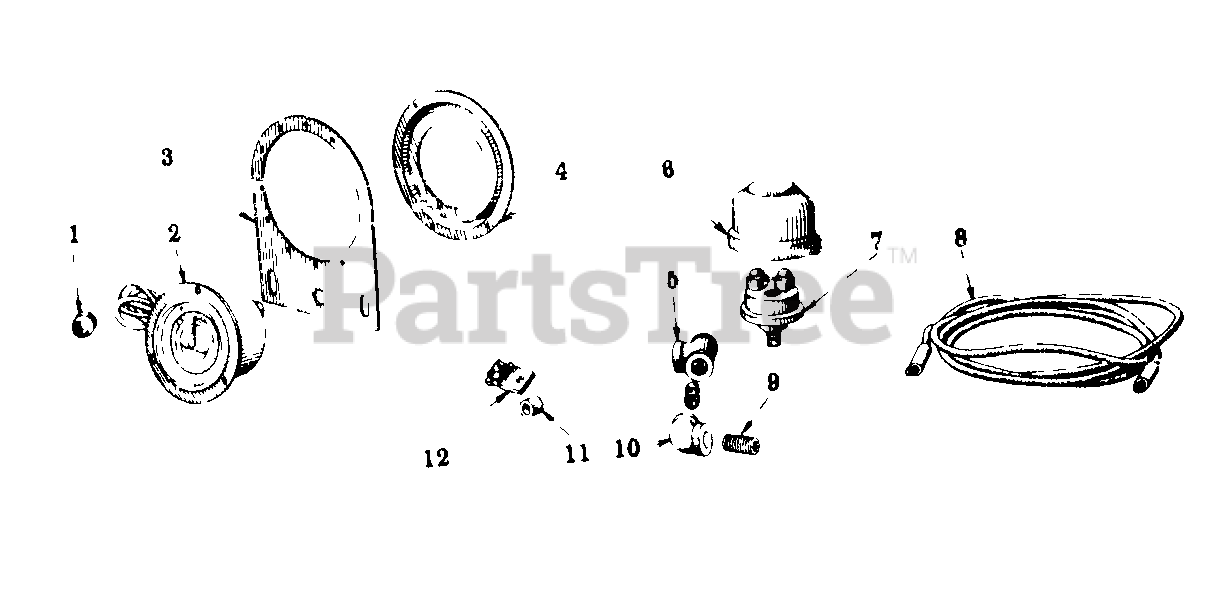

Engine Hour Meter Parts Diagram

  • Title

1

Cub Cadet IH-187540

GROMMET, RUBBER

$

$

Currently unavailable

2

Cub Cadet IH-356741-R92

METER ASSY, HOUR

$

$

Currently unavailable

Cub Cadet IH-132705

SCREW, 6-32 X 1/2 C-Z SLT-RD-HD MACH

$

$

Currently unavailable

Cub Cadet IH-138526

WASHER, NO. 6 C-Z INT-TOOTH LOCK

$

$

Currently unavailable

3

Cub Cadet IH-356738-R1

BRACKET, HOUR METER MOUNTING

$

$

Currently unavailable

Cub Cadet IH-171589

SCREW, 12-24 X 1/2 C-Z SLT-RD-HD SELF TAP

$

$

Currently unavailable

Cub Cadet IH-125751

WASHER, No. 12 C-Z EXT-TOOTH LOCK

$

$

Currently unavailable

Cub Cadet IH-446179

WASHER, 1/4 x 1/2 X .036 ZND

$

$

Currently unavailable

4

Cub Cadet IH-264674-R91

DAMPER, HOUR METER VIBRATION

Note: WILL WORK FOR IH-356737-R91-

$

$

Currently unavailable

Cub Cadet IH-132705

SCREW, 6-32 X 1/2 C-Z SLT-RD-HD MACH

$

$

Currently unavailable

Cub Cadet IH-138526

WASHER, NO. 6 C-Z INT-TOOTH LOCK

$

$

Currently unavailable

5

Cub Cadet IH-105416

TEE, 1/8 PIPE

$

$

Currently unavailable

6

Cub Cadet IH-354558-R1

SHIELD, PRESSURE SWITCH

$

$

Currently unavailable

7

Cub Cadet IH-132244-R91

SWITCH, HOUR METER PRESSURE

$

$

Not available

8

Cub Cadet IH-358581-R91

CABLE, PRESSURE SWITCH TO JUNCTION BLOCK

Note: -REPLACES IH-70261D-

$

$

Currently unavailable

9

Cub Cadet IH-144580

NIPPLE, 1/8 X 7/8 PIPE - LONG

$

$

Currently unavailable

10

Cub Cadet IH-105412

ELBOW, 1/8 X 90 DEG STREET

$

$

Currently unavailable

11

Cub Cadet IH-354260-R1

SPACER, JUNCTION BLOCK

$

$

Currently unavailable

12

Cub Cadet IH-42915D

BLOCK, JUNCTION

$

$

Currently unavailable

Cub Cadet IH-120614

NUT, 10-32 C-Z HEX, MACH SCREW
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

Cub Cadet IH-132919

SCREW, 10-32 X 7/8 C-Z SLT-RD-HD MACH

$

$

Currently unavailable

Cub Cadet IH-120217

WASHER, NO. 10 C-Z MED LOCK
(Superseded to 736-0722)

$6.99

$

Usually ships in 3-6 days

0
