Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 224705 - 229999) Distributor - Prestolite Parts Diagram

Cub Lo-Boy Tractor

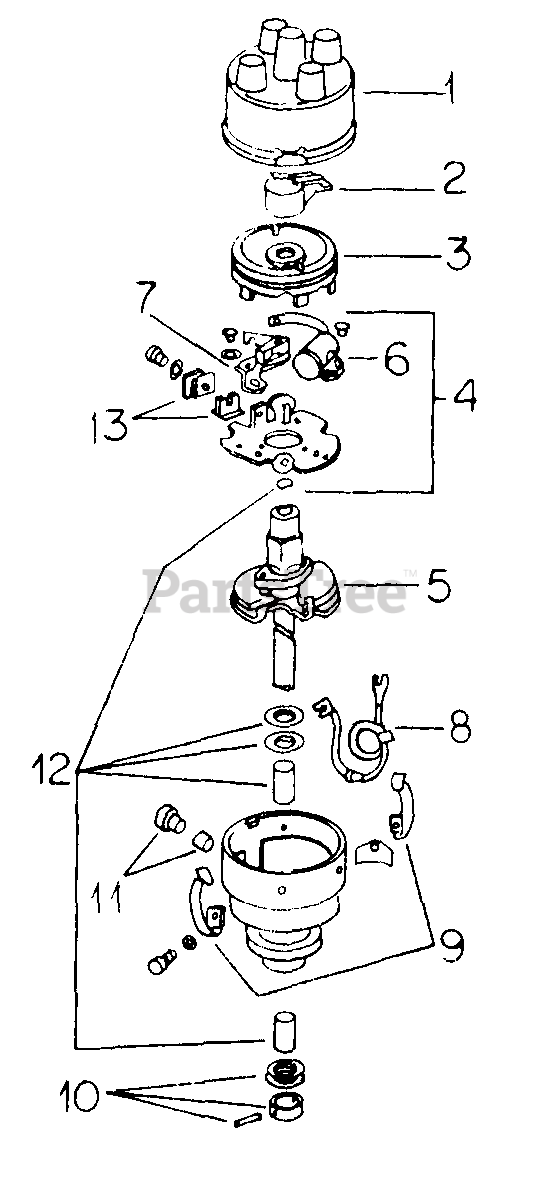

Distributor - Prestolite Parts Diagram

  • Title

Cub Cadet IH-107573-C91

DISTRIBUTOR ASSY

$

$

Not available

1

Cub Cadet IH-71907-C1

CAP, DISTRIBUTOR

$

$

Currently unavailable

2

Cub Cadet IH-71908-C1

ROTOR, DISTRIBUTOR

$

$

Not available

3

Cub Cadet IH-531449-R1

COVER ASSY, DUST

$

$

Currently unavailable

4

Cub Cadet IH-531453-R92

PLATE ASSY, BREAKER

Note: (COMPOSED OF REF NOS 6, 7 AND 13)

$

$

Currently unavailable

5

Cub Cadet IH-64858-C1

SHAFT ASSY, WEIGHT SPRING AND CAM

$

$

Currently unavailable

6

Cub Cadet IH-531455-R1

PACKAGE, CONDENSOR

$

$

Not available

7

Cub Cadet IH-531456-R1

PACKAGE, CONTACT BREAKER

$

$

Currently unavailable

8

Cub Cadet IH-531445-R1

LEAD ASSY, PRIMARY

$

$

Currently unavailable

9

Cub Cadet IH-531446-R91

PACKAGE, CAP CLAMP SPRING AND HINGE

$

$

Currently unavailable

10

Cub Cadet IH-531461-R91

PACKAGE, DRIVE GEAR

$

$

Not available

11

$

$

Currently unavailable

12

Cub Cadet IH-531459-R91

PACKAGE, SHAFT BEARING

$

$

Currently unavailable

13

Cub Cadet IH-539933-R1

PACKAGE, CLIP AND INSULATOR

$

$

Currently unavailable
