Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 224705 - 229999) Carburetor - S/N 312390 & Above Parts Diagram

Cub Lo-Boy Tractor

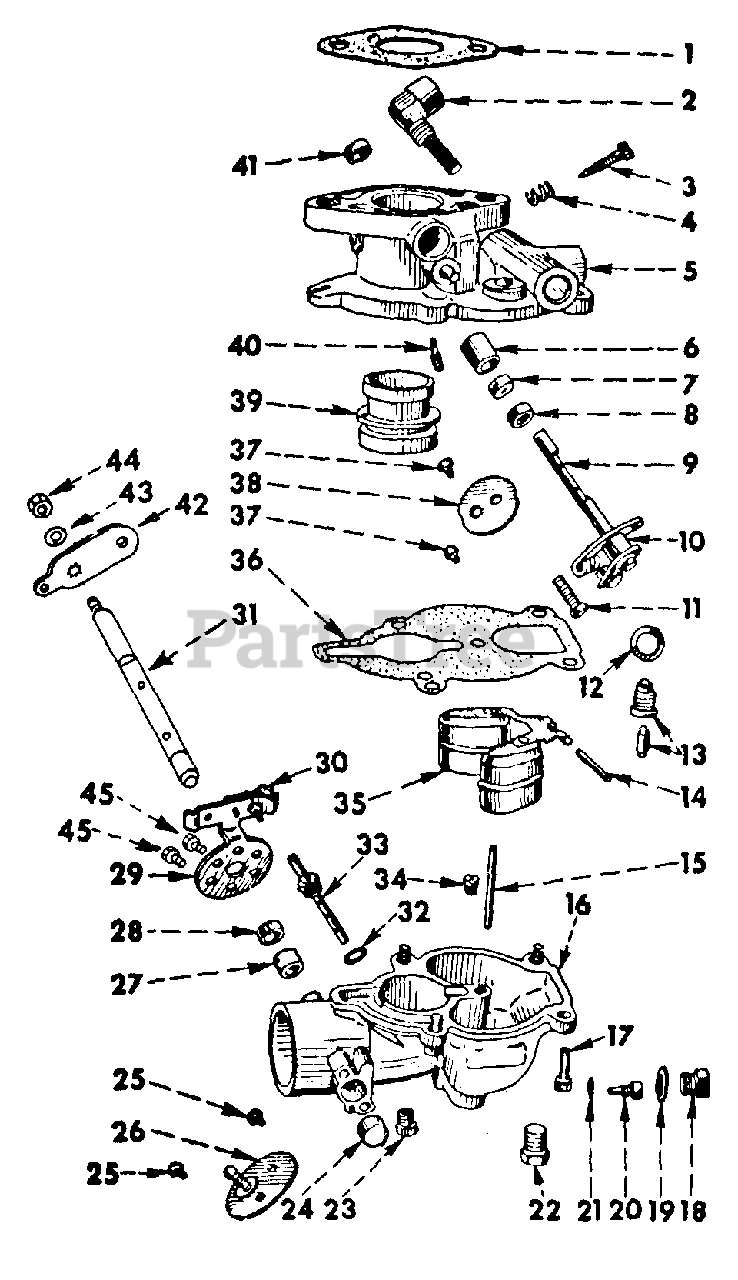

Carburetor - S/N 312390 & Above Parts Diagram

  • Title

Cub Cadet IH-71523-C92

CARBURETOR ASSY
(Superseded to IH-71523-C94)

$778.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-179796

SCREW, 1/4-20 X 7/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER, 1/4 MED LOCK

$

$

Currently unavailable

1

Cub Cadet IH-251235-R1

GASKET, CARBURETOR

Note: NOT INCLUDED WITH CARBURETOR ASSY

$

$

Not available

2

Cub Cadet IH-53796D

ELBOW AND STRAINER ASSY

$

$

Currently unavailable

3

Cub Cadet IH-13873D

NEEDLE, IDLE ADJUSTING SCREW

$

$

Not available

4

Cub Cadet IH-12472D

SPRING, IDLE ADJUSTING NEEDLE VALVE SCREW

$

$

Currently unavailable

5

BODY

Note: NOT SERVICED SEPARATELY

$

$

Not available

6

Cub Cadet IH-368360-R1

BUSHING, THROTTLE

$

$

Currently unavailable

7

Cub Cadet IH-368358-R2

SEAL, THROTTLE SHAFT

$

$

Not available

8

Cub Cadet IH-376139-R1

RETAINER, THROTTLE SHAFT SEAL

$

$

Currently unavailable

9

Cub Cadet IH-71311-C1

LEVER AND SHAFT W/SCREW ASSY, THROTTLE LEVER

$

$

Not available

10

Cub Cadet IH-135645H

PIN, THROTTLE LEVER TAPER

$

$

Currently unavailable

11

Cub Cadet IH-19509-R1

SCREW, 8-36 X 5/8 C-Z SLT-HEX HD MACH

Note: THROTTLE STOP

$

$

Currently unavailable

12

Cub Cadet IH-53792D

WASHER, FUEL VALVE SEAT

$

$

Currently unavailable

13

Cub Cadet IH-73238-C1

VALVE AND SEAT ASSY, FUEL

$

$

Not available

14

Cub Cadet IH-35514D

AXLE, FLOAT

$

$

Currently unavailable

15

TUBE

Note: NOT SERVICED SEPARATELY

$

$

Not available

16

BOWL

Note: NOT SERVICED SEPARATELY

$

$

Not available

17

Cub Cadet IH-19270-R91

SCREW W/WASHER, 10-32 X 5/8 ZND SLT-FIL HEAD MACH

Note: BOWL TO BODY

$

$

Currently unavailable

18

Cub Cadet IH-31860D

PLUG, LOWER

Note: MAIN JET PASSAGE

$

$

Currently unavailable

19

Cub Cadet IH-12433D

WASHER, MAIN PASSAGE PLUG

$

$

Currently unavailable

20

Cub Cadet IH-55594D

JET, MAIN

Note: REPLACES IH-62177D

$

$

Currently unavailable

21

Cub Cadet IH-12435D

WASHER, MAIN JET

$

$

Currently unavailable

22

Cub Cadet IH-444613

PLUG, 1/8-27 AUTO HEX-HD PIPE DRAIN

$

$

Currently unavailable

23

Cub Cadet IH-384327-R91

FILTER ASSY, DRIP PLUG

$

$

Currently unavailable

24

Cub Cadet IH-377798-R1

PLUG, CHOKE SHAFT HOLE

$

$

Currently unavailable

25

Cub Cadet IH-454415

SCREW ASSY, CHOKE VALVE PLATE

$

$

Currently unavailable

26

Cub Cadet IH-368355-R91

PLATE ASSY, CHOKE LEAVE

$

$

Currently unavailable

27

Cub Cadet IH-21210D

WASHER, CHOKE SHAFT PACKING

$

$

Currently unavailable

28

Cub Cadet IH-42191D

RETAINER, CHOKE SHAFT PACKING

$

$

Currently unavailable

29

Cub Cadet IH-369885-R91

BRACKET ASSY, CHOKE VALVE

$

$

Currently unavailable

30

Cub Cadet IH-369886-R1

CLAMP, CHOKE VALVE BRACKET

$

$

Currently unavailable

Cub Cadet IH-19404-R1

NUT, 8-36 C-Z SQ MACH SCREW

$

$

Currently unavailable

Cub Cadet IH-19403-R1

SCREW, 8-36 X 1/2 C-Z SLT-HEX-HD MACH

$

$

Currently unavailable

31

Cub Cadet IH-71310-C1

SHAFT, CHOKE

$

$

Currently unavailable

32

WASHER, DISCHARGE JET FIBRE

Note: NOT SERVICED SEPARATELY; PART OF GASKET PACKAGE IH-368357-R91

$

$

Not available

33

Cub Cadet IH-368354-R91

JET ASSY, DISCHARGE

$

$

Currently unavailable

34

Cub Cadet IH-97465H

JET WELL VENT

Note: REPLACES IH-64033D

$

$

Currently unavailable

35

Cub Cadet IH-53783D

FLOAT ASSY

$

$

Currently unavailable

36

Cub Cadet IH-368362-R1

GASKET, BOWL TO BODY

$

$

Not available

37

Cub Cadet IH-454415

SCREW ASSY, THROTTLE VALVE PLATE

$

$

Currently unavailable

38

PLATE THROTTLE VALVE

Note: NOT SERVICED SEPARATELY

$

$

Not available

39

Cub Cadet IH-368350-R1

VENTURI

$

$

Currently unavailable

40

Cub Cadet IH-384863-R1

JET, IDLING - REPLACES IH-68550-C1

$

$

Currently unavailable

41

Cub Cadet IH-53797D

PLUG, THROTTLE SHAFT HOLE

$

$

Currently unavailable

42

Cub Cadet IH-71309-C1

LEVER, CHOKE SHAFT

$

$

Currently unavailable

43

Cub Cadet IH-115707

WASHER, CHOKE SHAFT LEVER

$

$

Currently unavailable

44

Cub Cadet IH-426915

NUT, CHOKE SHAFT LEVER

$

$

Currently unavailable

45

Cub Cadet IH-455381

SCREW, 8-32 X 5/8 SLT-FIL-HD MACH

$

$

Currently unavailable

Cub Cadet IH-395320-R92

PACKAGE, CARBURETOR REPAIR

Note: INCLUDES REF NOS 1, 3, 7, 8, 14, 27, 28 AND 41

$

$

Not available

Cub Cadet IH-368357-R91

PACKAGE, CARBURETOR GASKET

Note: INCLUDES REF NOS 12, 19, 21, 32 AND 36

$

$

Not available
