Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 224705 - 229999) Carburetor S/N 312389 And Below Parts Diagram

Cub Lo-Boy Tractor

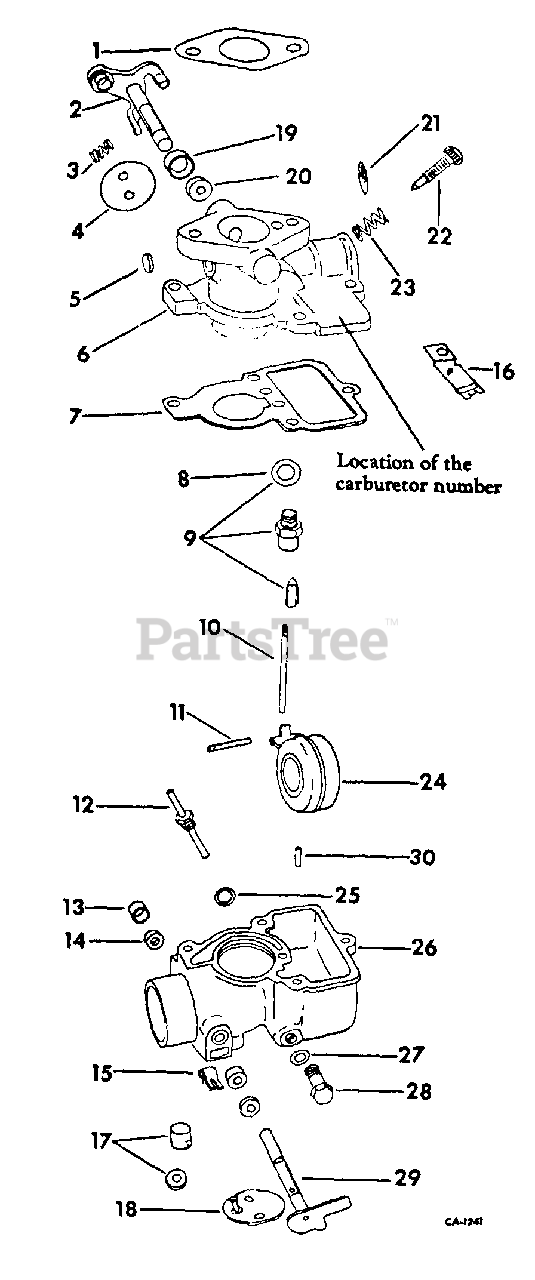

Carburetor S/N 312389 And Below Parts Diagram

  • Title

Cub Cadet IH-251234-R94

CARBURETOR ASSY, 3/4 UPDRAFT
(Superseded to IH-63349-C91)

Note: FARMALL CUB- -ORDER CARBURETOR ASSY. IH-63349-C91

$

$

Not available

Cub Cadet IH-364579-R91

CARBURETOR ASSY, 3/4 UPDRAFT
(Superseded to IH-63349-C91)

Note: INTERNATIONAL CUB AND CUB LO-BOY TRACTORS- -ORDER CARBURETOR ASSY IH-63349-C91

$

$

Not available

Cub Cadet IH-63349-C91

CARBURETOR ASSY, 3/4 UPDRAFT

$

$

Not available

1

Cub Cadet IH-251235-R1

GASKET, CARBURETOR

$

$

Not available

2

Cub Cadet IH-351845-R11

LEVER AND SHAFT ASSY, THROTTLE

$

$

Currently unavailable

3

Cub Cadet IH-251289-R1

SPRING, IDLE SET SCREW RETAINER

$

$

Currently unavailable

4

Cub Cadet IH-251290-R1

BUTTERFLY, THROTTLE

$

$

Currently unavailable

Cub Cadet IH-147754

SCREW, 5-40 X 1/4 C-Z SLT-RD-HD MACH

$

$

Currently unavailable

5

Cub Cadet IH-37417D

PLUG, THROTTLE BODY EXPANSION

$

$

Currently unavailable

6

Cub Cadet IH-351874-R91

BODY ASSY, THROTTLE

Note: -USED W/CARBURETOR ASSEMBLY, IH-251234-R94 AND IH-364579-R91

$

$

Currently unavailable

6

Cub Cadet IH-355713-R92

BODY ASSY, THROTTLE

Note: -USED W/CARBURETOR ASSEMBLY IH-63349-C91

$

$

Currently unavailable

Cub Cadet IH-131899

SCREW, 6-32 X 1/2 C-Z SLT-FIL-HD MACH

$

$

Currently unavailable

Cub Cadet IH-26668-R1

SCREW, 10-24 X 9/16 SLT-HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-120217

WASHER, NO. 10 C-Z REG LOCK
(Superseded to 736-0722)

$6.99

$

Usually ships in 3-6 days

0

7

Cub Cadet IH-251337-R3

GASKET, FUEL BOWL

$

$

Not available

8

Cub Cadet IH-251948D

GASKET, FLOAT NEEDLE VALVE CAGE

$

$

Currently unavailable

9

Cub Cadet IH-251300-R21

CAGE ASSY, FLOAT NEEDLE VALVE

$

$

Not available

10

Cub Cadet IH-251331-R1

TUBE, IDLE

$

$

Not available

11

Cub Cadet IH-251299-R1

PIVOT FLOAT LEVER

$

$

Currently unavailable

12

Cub Cadet IH-352138-R31

NOZZLE, DISCHARGE

Note: -WILL WORK FOR IH-251332-R11 -USED WITH CARBURETOR ASSEMBLY, IH-251234-R94

$

$

Currently unavailable

12

Cub Cadet IH-355717-R11

NOZZLE ASSY, DISCHARGE

Note: -USED WITH CARBURETOR ASSEMBLY, IH-364579-R91 AND IH-63349-C91

$

$

Currently unavailable

13

Cub Cadet IH-251306-R1

RETAINER, CHOKE VALVE SHAFT DUST SEAL

Note: -USED WITH CARBURETOR ASSEMBLY, IH-251234-R91

$

$

Currently unavailable

13

Cub Cadet IH-45148D

RETAINER, STARTING SHUTTER SHAFT DUST

Note: -2 USED WITH CARBURETOR ASSEMBLY, IH-251234-R92 THRU R94, IH-364579-R91 -2 USED W/CARBURETOR IH-63349-C91

$

$

Not available

14

Cub Cadet IH-251305-R1

SEAL, BUTTERFLY SHAFT DUST

Note: -USED WITH CARBURETOR ASSEMBLY IH-251234-R91

$

$

Currently unavailable

14

Cub Cadet IH-45149DA

SEAL, BUTTERFLY SHAFT DUST

Note: -2 USED WITH CARBURETOR ASSEMBLY, IH-251234-R92 THRU R94, IH-364579-R91 -2 USED W/CARBURETOR IH-63349-C91

$

$

Not available

15

Cub Cadet IH-251308-R1

SPRING, STARTING SHUTTER FRICTION

$

$

Currently unavailable

16

NOT USED IN THIS APPLICATION

$

$

Not available

17

Cub Cadet IH-354263-R91

PACKAGE, DRIP HOLE FILLER REPLACEMENT

$

$

Currently unavailable

18

Cub Cadet IH-251312-R11

SHUTTER ASSY, STARTING

$

$

Currently unavailable

Cub Cadet IH-132622

SCREW, 4-40 X 3/16 SLT-RD-HD C-Z

$

$

Currently unavailable

19

Cub Cadet IH-45148D

RETAINER BUTTERFLY SHAFT DUST SEAL

$

$

Not available

20

Cub Cadet IH-45149DA

SEAL, STARTING SHUTTER SHAFT DUST

$

$

Not available

21

Cub Cadet IH-251294-R1

SCREEN, STRAINER

$

$

Currently unavailable

22

Cub Cadet IH-351958-R1

SCREW, IDLE ADJUSTING

$

$

Currently unavailable

23

Cub Cadet IH-351959-R1

SPRING, IDLE ADJUSTING SCREW RETAINER

$

$

Not available

24

Cub Cadet IH-251293-R91

FLOAT AND LEVER ASSY

$

$

Currently unavailable

25

Cub Cadet IH-47401D

GASKET, DISCHARGE NOZZLE

$

$

Currently unavailable

26

Cub Cadet IH-352593-R93

BOWL ASSY, FUEL

Note: WILL WORK FOR IH-251336-R21; USED WITH CARBURETOR ASSEMBLY, IH-251234-R91; COMPOSED OF THE FOLLOWING 3 ITEMS.

$

$

Currently unavailable

Cub Cadet IH-251336-R32

BOWL

$

$

Currently unavailable

Cub Cadet IH-47401D

GASKET

$

$

Currently unavailable

Cub Cadet IH-352562-R12

SHAFT

$

$

Currently unavailable

26

Cub Cadet IH-251336-R32

BOWL ASSY, FUEL

Note: USED WITH CARBURETOR ASSEMBLY, IH-251234-R92 THRU R94; COMPOSED OF THE FOLLOWING 6 ITEMS.

$

$

Currently unavailable

Cub Cadet IH-354516-R1

BLEED

$

$

Currently unavailable

BOWL

$

$

Not available

FILLER

$

$

Not available

PLUG

$

$

Not available

Cub Cadet IH-45148D

RETAINER

$

$

Not available

Cub Cadet IH-45149DA

SEAL

$

$

Not available

26

Cub Cadet IH-364611-R91

BOWL ASSY, FUEL

Note: USED W/CARBURETOR ASSEMBLY, IH-364579-R91; COMPOSED OF THE FOLLOWING 6 ITEMS.

$

$

Currently unavailable

Cub Cadet IH-364761-R1

BLEED

$

$

Currently unavailable

BOWL

$

$

Not available

FILLER

$

$

Not available

PLUG

$

$

Not available

Cub Cadet IH-45148D

RETAINER

$

$

Not available

Cub Cadet IH-45149DA

SEAL

$

$

Not available

26

Cub Cadet IH-352065-R21

BOWL ASSY FUEL

Note: USED W/CARBURETOR IH-63349-C91; COMPOSED OF THE FOLLOWING 6 ITEMS.

$

$

Currently unavailable

Cub Cadet IH-353575-R1

BLEED

$

$

Currently unavailable

BOWL

$

$

Not available

FILLER

$

$

Not available

PLUG

$

$

Not available

Cub Cadet IH-45148D

RETAINER

$

$

Not available

Cub Cadet IH-45149DA

SEAL

$

$

Not available

Cub Cadet IH-444571

PLUG, 1/8-27 AUTO SQ-HD PIPE

$

$

Currently unavailable

27

Cub Cadet IH-47401D

GASKET, MAIN METERING JET

$

$

Currently unavailable

28

Cub Cadet IH-354192-R91

JET, MAIN METERING

Note: WILL WORK FOR IH-351804-R1- -FARMALL CUB ENGINE SERIAL NO. 501 TO 172438

$

$

Currently unavailable

28

Cub Cadet IH-359551-R91

JET, MAIN METERING

Note: FARMALL CUB ENGINE SERIAL NO 172439 TO 196899

$

$

Currently unavailable

28

Cub Cadet IH-364610-R91

JET ASSY, MAIN METERING

Note: USED W/CARBURETOR ASSEMBLY, IH-364579-R91

$

$

Currently unavailable

28

Cub Cadet IH-404945-R1

JET ASSY, MAIN METERING

Note: USED W/CARBURETOR ASSEMBLY IH-63349-C91

$

$

Currently unavailable

29

Cub Cadet IH-251309-R12

SHAFT, CHOKE VALVE

Note: USED WITH CARBURETOR ASSEMBLY, IH-251234-R91

$

$

Currently unavailable

29

Cub Cadet IH-352562-R12

SHAFT, CHOKE VALVE

Note: USED WITH CARBURETOR ASSEMBLY, IH-251234-R92 THRU R94, IH-364579-R91 AND IH-63349-C91

$

$

Currently unavailable

30

Cub Cadet IH-352442-R1

BLEED, MAIN AIR

Note: USED WITH CARBURETOR ASSEMBLY, IH-251234-R91 THRU R92

$

$

Currently unavailable

30

Cub Cadet IH-354516-R1

BLEED, MAIN AIR

Note: USED WITH CARBURETOR ASSEMBLY, 251234-H91 AND R94

$

$

Currently unavailable

30

Cub Cadet IH-364761-R1

BLEED, MAIN AIR

Note: USED W/CARBURETOR ASSEMBLY, IH-364579-R91 AND IH-63349-C91

$

$

Currently unavailable

Cub Cadet IH-352070-R1

TUBE DISCHARGE

$

$

Currently unavailable

Cub Cadet IH-354454-R92

PACKAGE, CARBURETOR OVERHAUL

Note: FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF SERVICE PACKAGES

$150.99

$

Usually ships in 3-6 days

0
