Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 224705 - 229999) Alternator Generator - Delco Remy W/Integral Solid State Voltage Reg. Parts Diagram

Cub Lo-Boy Tractor

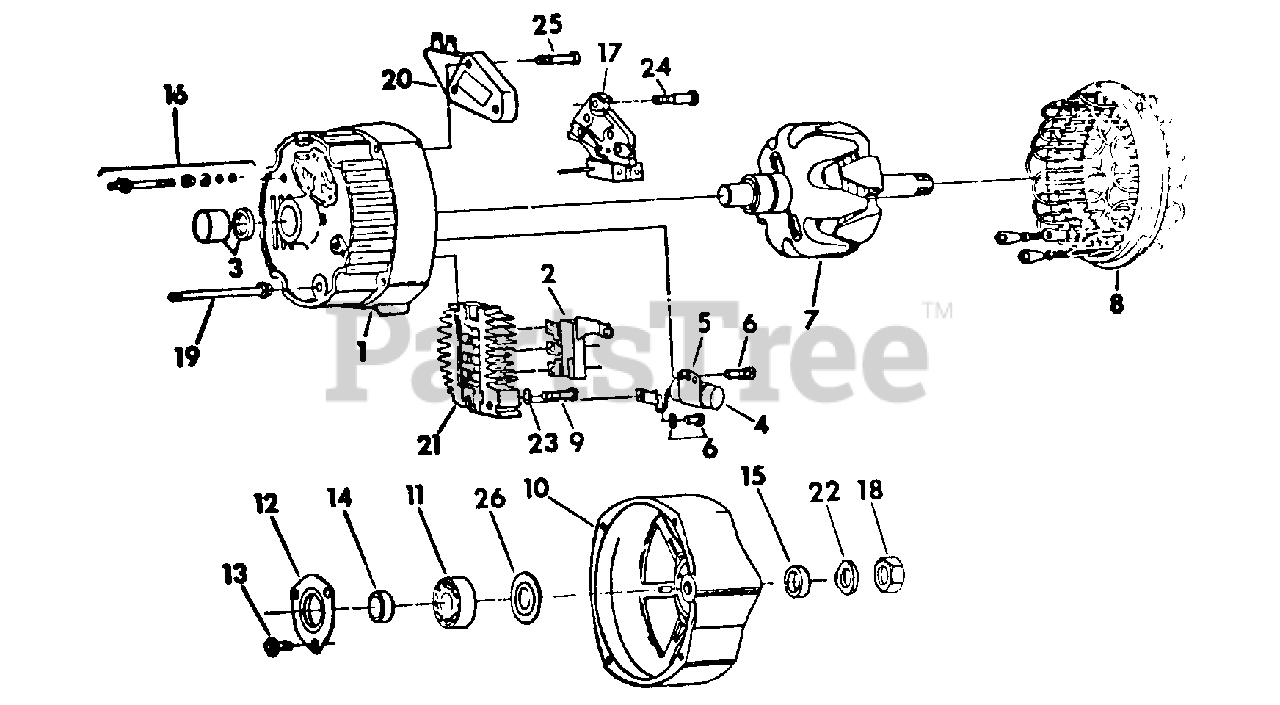

Alternator Generator - Delco Remy W/Integral Solid State Voltage Reg. Parts Diagram

  • Title

Cub Cadet IH-1100578

ALTERNATOR GENERATOR ASSY - 37 AMPERE

Note: (ORDER IH-1103171)

$

$

Currently unavailable

Cub Cadet IH-1100583

ALTERNATOR GENERATOR ASSY - 42 AMPERE

Note: (ORDER IH-1103171)

$

$

Currently unavailable

1

Cub Cadet IH-1852101

FRAME, SLIP RING END

$

$

Currently unavailable

2

Cub Cadet IH-1971528

DIODE TRIO, NEGATIVE

$

$

Currently unavailable

3

Cub Cadet IH-423649-C91

BEARING, SLIP RING END

$

$

Currently unavailable

4

Cub Cadet IH-801824

CAPACITOR

$

$

Currently unavailable

5

Cub Cadet IH-1869573

BRACKET, CAPACITOR ATTACHING

$

$

Currently unavailable

6

Cub Cadet IH-1851612

SCREW, CAPACITOR BRACKET

$

$

Currently unavailable

7

Cub Cadet IH-1891598

ROTOR ASSY

Note: (REPLACES IH-1846657

$

$

Currently unavailable

8

Cub Cadet IH-1971986

STATOR ASSY

$

$

Currently unavailable

9

Cub Cadet IH-1970145

SCREW, RECTIFIER BRIDGE ATTACHING

$

$

Currently unavailable

10

Cub Cadet IH-1976808

PACKAGE, DRIVE END FRAME

Note: (REPLACES IH-1970525 & IH-1976137; CONSISTS OF FRAME, BOLT, SLEEVE & INSTRUCTIONS)

$

$

Currently unavailable

11

Cub Cadet IH-539103-R91

BEARING, DRIVE END BALL

$

$

Not available

12

Cub Cadet IH-1971993

PLATE, DRIVE END BALL BEARING RETAINER 1

$

$

Currently unavailable

13

Cub Cadet IH-1965104

SCREW, RETAINER PLATE ATTACHING

$

$

Currently unavailable

14

Cub Cadet IH-1963139

COLLAR, INSIDE DRIVE END

$

$

Currently unavailable

15

Cub Cadet IH-1976138

COLLAR, DRIVE END SHAFT - OUTSIDE 1 IN. OD

Note: (USE W/FRAME IH-1976137 & IH-1976808)

$

$

Currently unavailable

15

Cub Cadet IH-1959991

COLLAR, DRIVE END SHAFT - OUTSIDE

Note: (USE W/FRAME IH-1970525)

$

$

Not available

16

Cub Cadet IH-1975471

PACKAGE, BATTERY OUTPUT TERMINAL

Note: (REPLACES IH-1846900)

$

$

Currently unavailable

17

Cub Cadet IH-1876873

BRUSH HOLDER & BRUSH ASSY

$

$

Currently unavailable

18

Cub Cadet IH-1915172

NUT, DRIVE END SHAFT

$

$

Currently unavailable

19

Cub Cadet IH-1956975

BOLT, THRU

$

$

Currently unavailable

20

Cub Cadet IH-1116387

REGULATOR, VOLTAGE SOLID STATE

$

$

Currently unavailable

21

Cub Cadet IH-1875627

BRIDGE, POSITIVE RECTIFIER

$

$

Currently unavailable

22

Cub Cadet IH-1941978

WASHER, DRIVE END SHAFT NUT LOCK

$

$

Not available

23

Cub Cadet IH-1847933

WASHER, RECTIFIER BRIDGE NUT SPRING SCREW SPRING

$

$

Currently unavailable

24

Cub Cadet IH-1846864

SCREW, INSULATED BRUSH HOLDER

$

$

Currently unavailable

25

Cub Cadet IH-1971519

SCREW, GROUND BRUSH HOLDER

$

$

Currently unavailable

26

Cub Cadet IH-800832

WASHER, DRIVE END GREASE SLINGER

$

$

Currently unavailable

Cub Cadet IH-1894976

PACKAGE, ALTERNATOR GENERATOR CONVERSION

Note: (CONSISTS OF CABLE ASSY. AND FOLLOWING ITEMS)

$

$

Currently unavailable

Cub Cadet IH-1894559

HOLDER ASSY, BRUSH & BRUSH

$

$

Currently unavailable

Cub Cadet IH-1894570

FRAME ASSY, SLIP RING END

$

$

Currently unavailable

Cub Cadet IH-9430831

BEARING, SLIP RING END FRAME

$

$

Currently unavailable

Cub Cadet IH-1961323

SEAL, OIL

$

$

Currently unavailable

Cub Cadet IH-1894586

SCREW ASSY, REG GROUND

$

$

Currently unavailable

Cub Cadet IH-1974020

SCREW BRUSH HOLDER PIVOT

$

$

Currently unavailable

Cub Cadet IH-1894568

TERMINAL, RELAY, CONNECTOR & INSTRUCTIONS

$

$

Currently unavailable

CONNECTOR

Note: (NOT AVAILABLE SEPARATELY)

$

$

Not available

INSTRUCTIONS

Note: (NOT AVAILABLE SEPARATELY)

$

$

Not available

Cub Cadet IH-1876681

SCREW ASSY, BRUSH HOLDER

Note: INSULATED TERMINAL, STUD, INSULATOR & NUT ASSY.

$

$

Currently unavailable
