Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 224705 - 229999) Adjusting Lever W/Quadrant Brace, Hitches W/Depth Adjusting Lever Parts Diagram

Cub Lo-Boy Tractor

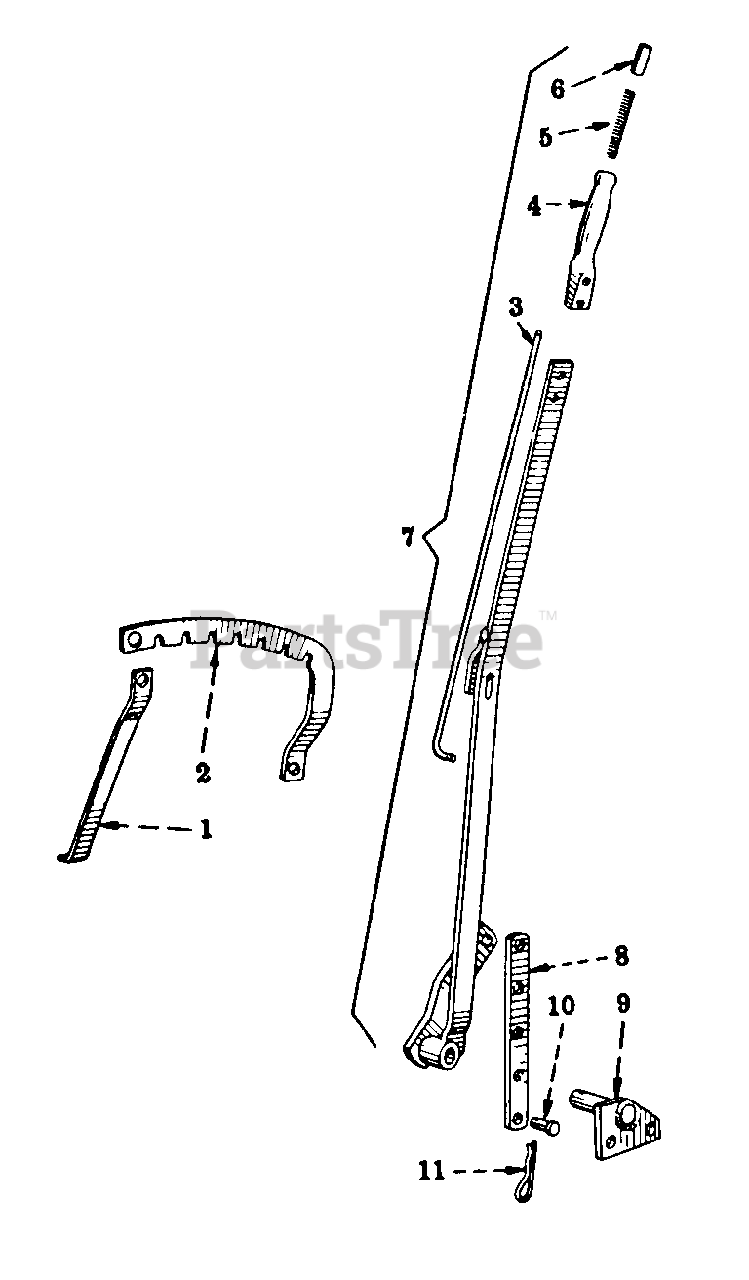

Adjusting Lever W/Quadrant Brace, Hitches W/Depth Adjusting Lever Parts Diagram

  • Title
1

Cub Cadet IH-520159-R1

BRACE, QUADRANT

$

$

Currently unavailable

Cub Cadet IH-17426-R1

BOLT, 3/8-16 X 1 HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-17428-R1

BOLT, 1/2-13 X 1 HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-17448-R1

BOLT, 1/2-13 X 1-1/4 HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-102635

NUT, 3/8-16 HEX.

$

$

Currently unavailable

Cub Cadet IH-102637

NUT, 1/2-13 HEX.
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

Cub Cadet IH-103323

WASHER, 1/2 MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

Cub Cadet IH-120389

WASHER, 17/32 X 1-1/8 X 16 GA ZND

$

$

Currently unavailable

2

Cub Cadet IH-520156-R1

QUADRANT, ADJUSTING LEVER

$

$

Currently unavailable

3

$

$

Currently unavailable

Cub Cadet IH-13042-R1

PIN, 1/8 X 3/4 SELF-OPENING COT.

$

$

Currently unavailable

Cub Cadet IH-Q1505

WASHER, 13/32 X 1 X 16 GA

$

$

Currently unavailable

4

Cub Cadet IH-511962-R1

HANDLE, ADJUSTING LEVER

$

$

Currently unavailable

Cub Cadet IH-104182

RIVET, 5/16 X 7/8 CKS

$

$

Currently unavailable

Cub Cadet IH-446363

WASHER, 13/32 X 3/4 X 16 GA
(Superseded to 936-0159)

$

$

Not available

5

Cub Cadet IH-2067A

SPRING, PUSH BUTTON

$

$

Currently unavailable

6

Cub Cadet IH-511964-R1

BUTTON, PUSH

$

$

Currently unavailable

Cub Cadet IH-142485

PIN, 1/8 X 5/8 GROOVE

$

$

Not available

7

Cub Cadet IH-520164-R91

LEVER ASSY, ADJUSTING -COMPOSED OF THE FOLLOWING 10 PARTS

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Not available

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

Cub Cadet IH-446363

WASHER
(Superseded to 936-0159)

$

$

Not available

8

Cub Cadet IH-520158-R1

LINK, LEVER ARM

$

$

Currently unavailable

Cub Cadet IH-520161-R1

PIN, LEVER LINK UPPER

$

$

Currently unavailable

Cub Cadet IH-460309-R1

PIN, 11/64 QUICK-ATTACHABLE COT.

$

$

Currently unavailable

9

Cub Cadet IH-520145-R11

PLATE ASSY, LEVER PIVOT

$

$

Currently unavailable

Cub Cadet IH-17450-R1

BOLT, 5/8-11 X 1-1/4 HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-13121-R1

PIN, 1/4 X 1-1/2 SELF-OPENING COT.

$

$

Currently unavailable

Cub Cadet IH-103325

WASHER, 5/8 MED LOCK

$

$

Currently unavailable

Cub Cadet IH-Q5036

WASHER, 1-1/32 X 1-3/4 X 16 GA

$

$

Currently unavailable

10

Cub Cadet IH-520161-R1

PIN, LEVER LINK LOWER

$

$

Currently unavailable

11

Cub Cadet IH-520175-R1

PIN, 3/16 QUICK-ATTACHABLE COT.

$

$

Not available
