Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 17201 - 17999) Hand Lubricator (Obsolete) Parts Diagram

Cub Lo-Boy Tractor

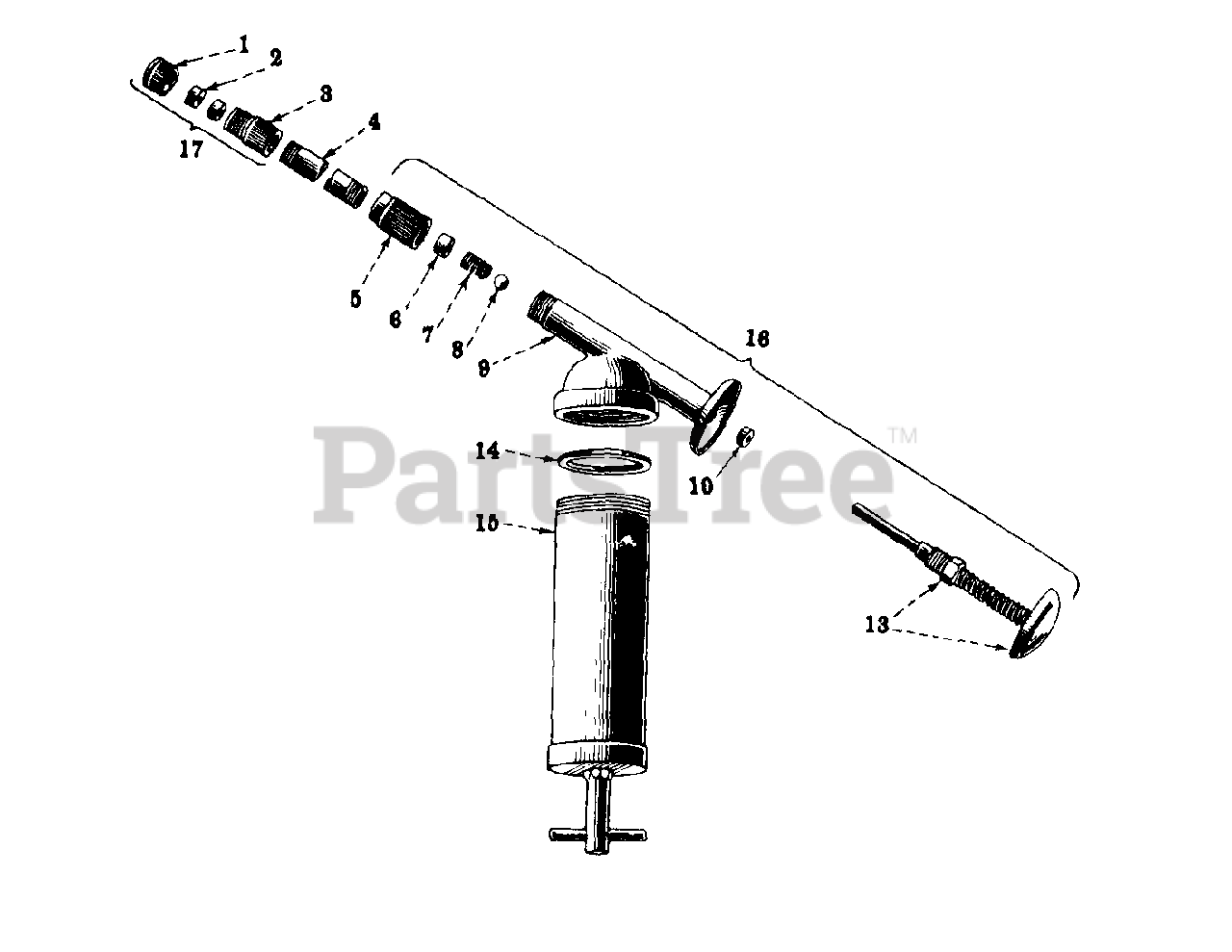

Hand Lubricator (Obsolete) Parts Diagram

  • Title

Cub Cadet IH-Q3803

LUBRICATOR 3-OUNCE CAPACITY

Note: (ORDER IH-QA3803 FOR SERVICE)

$

$

Currently unavailable

1

CAP

Note: (FOR SERVICE ON PARTS ORDER DIRECTLY FROM LINCOLN ENGINEERING COMPANY)

$

$

Not available

2

WASHER SET OF TWO

Note: (FOR SERVICE ON PARTS ORDER DIRECTLY FROM LINCOLN ENGINEERING COMPANY)

$

$

Not available

3

BODY NOZZLE

Note: (FOR SERVICE ON PARTS ORDER DIRECTLY FROM LINCOLN ENGINEERING COMPANY)

$

$

Not available

4

PIPE 1/8 X 3 STANDARD

Note: (FOR SERVICE ON PARTS ORDER DIRECTLY FROM LINCOLN ENGINEERING COMPANY)

$

$

Not available

5

ADAPTER W/INSERT

Note: (FOR SERVICE ON PARTS ORDER DIRECTLY FROM LINCOLN ENGINEERING COMPANY)

$

$

Not available

6

PACKING ADAPTER

Note: (FOR SERVICE ON PARTS ORDER DIRECTLY FROM LINCOLN ENGINEERING COMPANY)

$

$

Not available

7

SPRING

Note: (FOR SERVICE ON PARTS ORDER DIRECTLY FROM LINCOLN ENGINEERING COMPANY)

$

$

Not available

8

BALL, CHECK

Note: (FOR SERVICE ON PARTS ORDER DIRECTLY FROM LINCOLN ENGINEERING COMPANY)

$

$

Not available

9

BODY

Note: (FOR SERVICE ON PARTS ORDER DIRECTLY FROM LINCOLN ENGINEERING COMPANY)

$

$

Not available

10

PACKING, PLUNGER

Note: (FOR SERVICE ON PARTS ORDER DIRECTLY FROM LINCOLN ENGINEERING COMPANY)

$

$

Not available

13

PLUNGER

Note: (FOR SERVICE ON PARTS ORDER DIRECTLY FROM LINCOLN ENGINEERING COMPANY)

$

$

Not available

14

GASKET

Note: (FOR SERVICE ON PARTS ORDER DIRECTLY FROM LINCOLN ENGINEERING COMPANY)

$

$

Not available

15

CONTAINER

Note: (FOR SERVICE ON PARTS ORDER DIRECTLY FROM LINCOLN ENGINEERING COMPANY)

$

$

Not available

16

HEAD ASSY

Note: (FOR SERVICE ON PARTS ORDER DIRECTLY FROM LINCOLN ENGINEERING COMPANY)

$

$

Not available

17

NOZZLE W/CAP AND WASHERS

Note: (FOR SERVICE ON PARTS ORDER DIRECTLY FROM LINCOLN ENGINEERING COMPANY)

$

$

Not available
