Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 17201 - 17999) Front Axle and Steering Knuckle Parts Diagram

Cub Lo-Boy Tractor

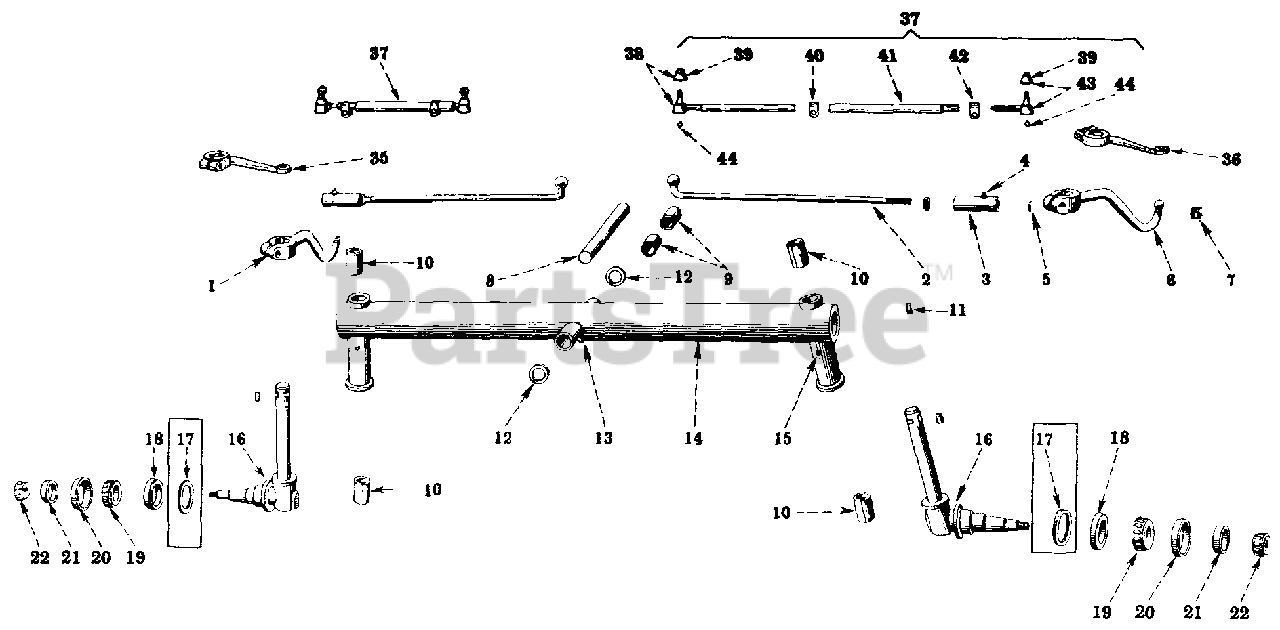

Front Axle and Steering Knuckle Parts Diagram

  • Title

1

Cub Cadet IH-356711-R1

ARM, STEERING KNUCKLE LH

$

$

Currently unavailable

Cub Cadet IH-271505

NUT, 7/16-20 HEX

$

$

Currently unavailable

Cub Cadet IH-181406

SCREW, 7/16-20 X 2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103322

WASHER, 7/16 MED LOCK

$

$

Currently unavailable

2

Cub Cadet IH-364012-R11

TIE ROD ASSY 17-9/32 IN. LONG

Note: (SERIAL NO. 4801 & BELOW)

$

$

Currently unavailable

2

Cub Cadet IH-368087-R11

TIE ROD ASSY 18-7/16 IN. LONG

Note: (SERIAL NO. 4802 & ABOVE)

$

$

Currently unavailable

Cub Cadet IH-114496

NUT, 1/2-20 HEX JAM

$

$

Currently unavailable

3

Cub Cadet IH-350779-R1

END, TIE ROD ADJUSTABLE

$

$

Not available

Cub Cadet IH-108641

PIN 1/8 X 1-3/8 COT.

$

$

Currently unavailable

4

Cub Cadet IH-109454

FITTING, 1/4-28 NS TAPER STR LUB

$

$

Not available

5

Cub Cadet IH-350780-R1

SEAT TIE ROD BALL

$

$

Not available

6

Cub Cadet IH-356712-R1

ARM, STEERING KNUCKLE RH

$

$

Currently unavailable

Cub Cadet IH-271505

NUT, 7/16-20 HEX

$

$

Currently unavailable

Cub Cadet IH-181406

SCREW, 7/16 20 X 2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103322

WASHER, 7/16 MED LOCK

$

$

Currently unavailable

7

Cub Cadet IH-350781-R1

SEAT, TIE ROD ADJUSTABLE BAIL

$

$

Not available

8

Cub Cadet IH-350765-R1

SHAFT, FRONT AXLE PIVOT

$

$

Currently unavailable

9

Cub Cadet IH-350758-R1

BUSHING, FRONT AXLE PIVOT

$

$

Currently unavailable

10

Cub Cadet IH-350761-R1

BUSHING, STEERING KNUCKLE POST TUBE

$

$

Currently unavailable

11

Cub Cadet IH-383806-R1

KEY, .25 X .88 SQ. PARALLEL

$

$

Currently unavailable

12

Cub Cadet IH-351957-R1

WASHER, FRONT AXLE PIVOT THRUST

$

$

Not available

13

Cub Cadet IH-109454

FITTING, 1/4-28 NS TAPER STR LUB

$

$

Not available

14

Cub Cadet IH-364007-R11

AXLE, FRONT

Note: (W/TWO BUSHINGS, IH-350-758-R1, AND FOUR BUSHINGS, IH-350761-R1)

$

$

Currently unavailable

15

Cub Cadet IH-109454

FITTING, 1/4-28 NS TAPER STR LUB STEERING KNUCKLE POST

$

$

Not available

16

Cub Cadet IH-364009-R92

KNUCKLE, STEERING LH

Note: (W/OIL SEAL, IH-350769-R91 AND WASHER, IH-350768-R1, ALSO ORDER KEY IH-383806-R11)

$

$

Currently unavailable

16

Cub Cadet IH-378964-R92

KNUCKLE, STEERING LH

Note: (W/OIL SEAL, IH-350769-R91 AND WASHER, IH-350768-R1, ALSO ORDER KEY IH-383806-R1 TRACTORS WITH 105 MOWER)

$

$

Currently unavailable

16

Cub Cadet IH-364010-R92

KNUCKLE, STEERING RH

Note: (W/OIL SEAL, IH-350769-R91 AND IH-965-R92 WASHER, IH-350768-R1, ALSO ORDER KEY IH-383806-R1)

$

$

Currently unavailable

16

Cub Cadet IH-378965-R92

KNUCKLE, STEERING RH

Note: (W/OIL SEAL, IH-350769-R91 AND WASHER, IH-350768-R1, ALSO ORDER KEY IH-383806-R1 TRACTORS WITH 105 MOWER)

$

$

Currently unavailable

Cub Cadet IH-103385

PIN, 1/8 X 1 COT.

$

$

Currently unavailable

Cub Cadet IH-102648

NUT, 9/16-18 SLT HEX

$

$

Currently unavailable

Cub Cadet IH-103344

WASHER, 19/32 X 1-3/16 X 13 GA
(Superseded to 936-0272)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet IH-350768-R1

WASHER, FRONT WHEEL FELT

$

$

Currently unavailable

18

Cub Cadet IH-350769-R91

SEAL, FRONT WHEEL OIL

$

$

Currently unavailable

19

Cub Cadet IH-350771-R91

BEARING ASSY, FRONT WHEEL INNER CONE

$

$

Not available

20

Cub Cadet IH-350772-R1

BEARING, FRONT WHEEL INNER CUP

$

$

Not available

21

Cub Cadet IH-350775-R1

BEARING, FRONT WHEEL OUTER CUP

$

$

Not available

22

Cub Cadet IH-350774-R91

BEARING ASSY, FRONT WHEEL OUTER CONE

$

$

Not available

?23

Cub Cadet IH-364081-R11

TUBE, TIE ROD 13-5/8 IN. LONG

Note: (SERIAL NO. 4801 & BELOW)

$

$

Currently unavailable

?23

Cub Cadet IH-368094-R91

TUBE, TIE ROD 14-3/4 IN. LONG

Note: (SERIAL NO. 4302 & ABOVE)

$

$

Not available

?24

Cub Cadet IH-350784-R1

CLAMP, TIE ROD

$

$

Not available

Cub Cadet IH-103026

NUT, 3/8-24 HEX
(Superseded to 912-0121)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-181370

SCREW, 3/8-24 X 1-1/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER 3/8 MED LOCK

$

$

Currently unavailable

?25

Cub Cadet IH-364080-R1

TIE ROD

$

$

Currently unavailable

Cub Cadet IH-114496

NUT, 1/2-20 HEX JAM

$

$

Currently unavailable

?26

Cub Cadet IH-350758-R1

BUSHING, FRONT AXLE PIVOT

$

$

Currently unavailable

?27

Cub Cadet IH-350764-R1

PIN, FRONT AXLE CLAMP

$

$

Currently unavailable

Cub Cadet IH-108630

PIN, 1/8 X 7/8 COT.

$

$

Not available

?28

Cub Cadet IH-350761-R1

BUSHING, STEERING KNUCKLE POST

$

$

Currently unavailable

?29

Cub Cadet IH-20167-R1

SCREW, 1/2-20 X 3 HEX-HD CAP FRONT AXLE CLAMP

$

$

Currently unavailable

Cub Cadet IH-103028

NUT 1/2-20 HEX

$

$

Currently unavailable

Cub Cadet IH-103323

WASHER, 1/2 MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

?30

Cub Cadet IH-350756-R11

AXLE, FRONT

Note: (W/TWO BUSHINGS IH-350758-R1)

$

$

Currently unavailable

?31

Cub Cadet IH-109454

FITTING, 1/4-28 NS TAPER STR LUB

$

$

Not available

?32

Cub Cadet IH-350762-R1

CLAMP, FRONT AXLE

$

$

Currently unavailable

?33

Cub Cadet IH-364082-R92

EXTENSION, FRONT AXLE

Note: (W/TWO BUSHINGS, IH-350761-R1)

$

$

Currently unavailable

?34

Cub Cadet IH-109454

FITTING, 1/4-28 NS TAPER STR LUB STEERING KNUCKLE POST

$

$

Not available

35

Cub Cadet IH-378969-R1

ARM, STEERING KNUCKLE LH

Note: (TRACTORS WITH 105 MOWER)

$

$

Currently unavailable

Cub Cadet IH-271505

NUT, 7/16-20 HEX

$

$

Currently unavailable

Cub Cadet IH-181408

SCREW, 7/16-20 X 2-1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103322

WASHER, 7/16 MED LOCK

$

$

Currently unavailable

36

Cub Cadet IH-378970-R1

ARM, STEERING KNUCKLE RH

Note: (TRACTORS WITH 105 MOWER)

$

$

Currently unavailable

Cub Cadet IH-271505

NUT, 7/16-20 HEX

$

$

Currently unavailable

Cub Cadet IH-181408

SCREW, 7/16-20 X 2-1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103322

WASHER, 7/16 MED LOCK

$

$

Currently unavailable

37

Cub Cadet IH-356539-R93

TIE ROD ASSY

Note: (TRACTORS W/105 MOWER)

$

$

Currently unavailable

38

Cub Cadet IH-360412-R11

END ASSY, TIE ROD

Note: (TRACTORS WITH 105 MOWER)

$

$

Currently unavailable

Cub Cadet IH-102647

NUT, 1/2-20 SLT HEX TIE ROD END

$

$

Currently unavailable

Cub Cadet IH-103385

PIN, 1/8 X 1 COT.

$

$

Currently unavailable

39

Cub Cadet IH-358209-R1

COVER, TIE ROD END DUST

$

$

Currently unavailable

40

Cub Cadet IH-43747D

CLAMP, TIE ROD

$

$

Currently unavailable

Cub Cadet IH-271505

NUT, 7/16-20 HEX

$

$

Currently unavailable

Cub Cadet IH-181403

SCREW, 7/16-20 x 1-3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-114607

WASHER, 7/16 EXT-TOOTH LOCK

$

$

Currently unavailable

41

Cub Cadet IH-360411-R1

TUBE, TIE ROD

$

$

Currently unavailable

42

Cub Cadet IH-356543-R1

CLAMP, TIE ROD

$

$

Currently unavailable

Cub Cadet IH-103026

NUT, 3/8-24 HEX
(Superseded to 912-0121)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-181376

SCREW, 3/8-24 X 1-5/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-114606

WASHER, 3/8 EXT-TOOTH LOCK
(Superseded to 736-0148)

$3.99

$

In Stock, only 3 left!

0

43

Cub Cadet IH-356540-R91

END ASSY, TIE ROD

$

$

Currently unavailable

Cub Cadet IH-102647

NUT, 1/2-20 SLT HEX. TIE ROD END

$

$

Currently unavailable

Cub Cadet IH-103385

PIN 1/8 X 1 COT.

$

$

Currently unavailable

44

Cub Cadet IH-109454

FITTING, 1/4-28 NS TAPER STR LUB

$

$

Not available
