Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 17201 - 17999) Cranking Motor - Delco Remy 12 Volt Parts Diagram

Cub Lo-Boy Tractor

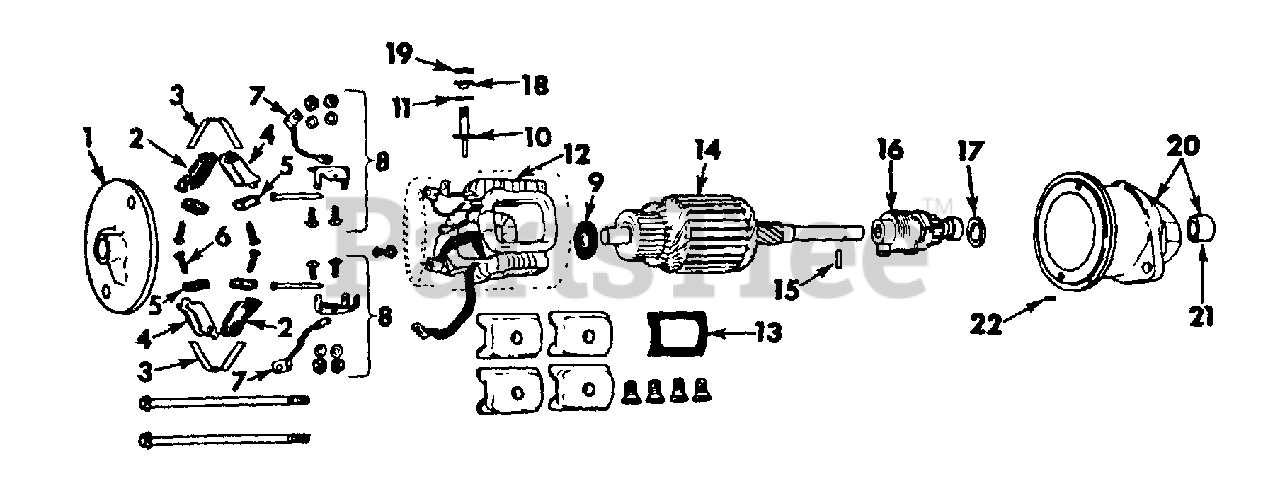

Cranking Motor - Delco Remy 12 Volt Parts Diagram

  • Title

Cub Cadet IH-1107327

MOTOR ASSY, CRANKING - 12 VOLT

Note: ORDER 1 109 352--CUB TRACTORS W/SERIAL NO 224401 TO 321481 5 CUB LO-BOY W/SERIAL NO 18701 AND ABOVE.

$

$

Currently unavailable

Cub Cadet IH-1109352

MOTOR ASSY, CRANKING CUB TRACTORS

Note: W/SERIAL NO 321482 AND ABOVE.

$

$

Currently unavailable

Cub Cadet IH-179839

SCREW, 3/8-16 X 1 HEX-HD CAP

$

$

Not available

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

1

Cub Cadet IH-1928966

FRAME, COMMUTATOR END

Note: USED W/1107327

$

$

Currently unavailable

Cub Cadet IH-1977477

FRAME, COMMUTATOR END

Note: USED W/1109352

$

$

Currently unavailable

2

Cub Cadet IH-1926618

HOLDER, INSULATED BRUSH

$

$

Currently unavailable

3

Cub Cadet IH-1926622

SPRING, BRUSH

$

$

Currently unavailable

4

Cub Cadet IH-1940477

HOLDER, GROUND BRUSH

$

$

Currently unavailable

$

$

Not available

6

Cub Cadet IH-131977

SCREW, BRUSH ATTACHING

Note: USED W/1107327

$

$

Currently unavailable

Cub Cadet IH-1967747

SCREW, COMMUTATOR BRUSH GROUND

Note: USED W/1109352

$

$

Currently unavailable

Cub Cadet IH-443527

SCREW,COMMUTATOR BRUSH GROUND HOLDER

Note: USED W/1109352

$

$

Currently unavailable

7

Cub Cadet IH-1960864

LEAD, BRUSH GROUND

$

$

Currently unavailable

8

Cub Cadet IH-1928015

KIT, BRUSH HOLDER SUPPORT

$

$

Currently unavailable

9

Cub Cadet IH-1914842

WASHER, COMMUTATOR END BRAKE

$

$

Currently unavailable

10

Cub Cadet IH-1956246

STUD, TERMINAL

$

$

Currently unavailable

11

Cub Cadet IH-1961386

WASHER, INSULATED TERMINAL STUD

$

$

Currently unavailable

12

Cub Cadet IH-1928969

COIL ASSY, FIELD 4 COILS

Note: USED W/1 107327

$

$

Currently unavailable

Cub Cadet IH-1974435

COIL ASSY, FIELD 4 COILS

Note: USED W/1109352

$

$

Currently unavailable

13

Cub Cadet IH-1927853

INSULATION, FIELD COIL

$

$

Currently unavailable

14

$

$

Currently unavailable

15

Cub Cadet IH-1963637

PIN, ARMATURE SHAFT

$

$

Currently unavailable

16

Cub Cadet IH-1963642

DRIVE ASSY, MOTOR

$

$

Currently unavailable

17

Cub Cadet IH-1853917

WASHER, DRIVE END SPACE

$

$

Currently unavailable

18

Cub Cadet IH-1950245

BUSHING, INSULATED TERMINAL STUD

Note: USED W/1107327

$

$

Currently unavailable

Cub Cadet IH-1961381

BUSHING, INSULATED TERMINAL STUD

Note: USED W/1109352

$

$

Currently unavailable

19

Cub Cadet IH-805613

WASHER, INSULATED TERMINAL STUD

$

$

Currently unavailable

20

Cub Cadet IH-1963640

HOUSING ASSY, DRIVE END

$

$

Currently unavailable

21

Cub Cadet IH-810620

BUSHING, DRIVE END HOUSING

$

$

Currently unavailable

22

Cub Cadet IH-809593

PIN, DRIVE END DOWEL

Note: USED 1107327 MOTOR ONLY

$

$

Currently unavailable

Cub Cadet IH-939970

BOLT, THRU

$

$

Currently unavailable
