Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 10001 - 17200) Tail Light Parts Diagram

Cub Lo-Boy Tractor

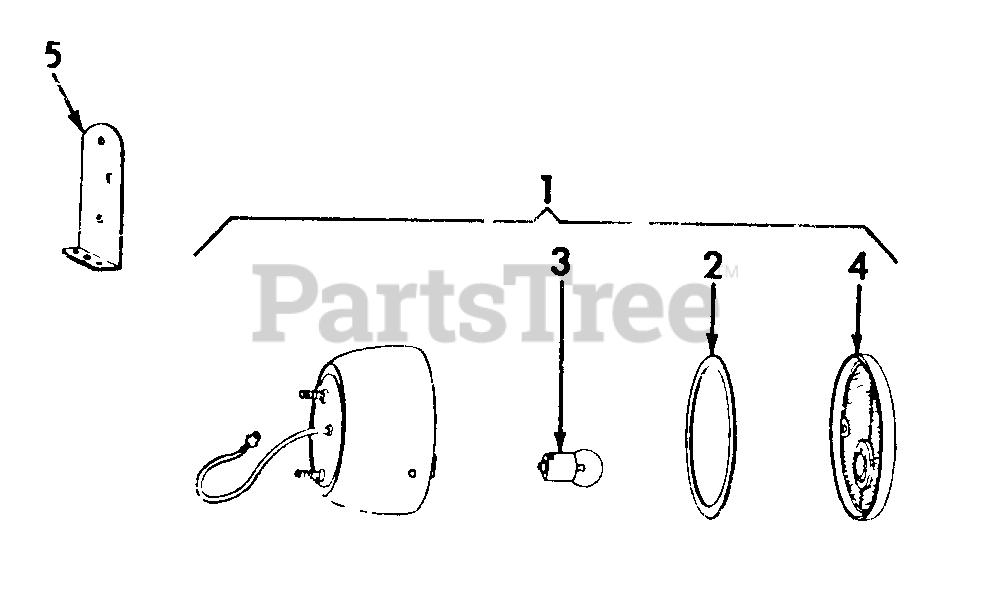

Tail Light Parts Diagram

  • Title

1

Cub Cadet IH-370716-R91

LIGHT ASSY, TAIL

Note: 6 VOLT

$

$

Currently unavailable

Cub Cadet IH-121846-C91

LIGHT ASSY, TAIL

Note: 12 VOLT, REPLACES 376850-R91

$

$

Currently unavailable

Cub Cadet IH-109084

NUT, 1/4-20 HEX

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER, 1/4 MED LOCK

$

$

Currently unavailable

2

Cub Cadet IH-81714-R1

GASKET, TAIL LIGHT LENS

Note: USED ONLY WITH LIGHTS, 370716-R91 & 376850-R91.

$

$

Currently unavailable

3

Cub Cadet IH-142303

LAMP, NO 63 -6 VOLT

$

$

Currently unavailable

Cub Cadet IH-142450

LAMP, NO 57 -12 VOLT

$

$

Not available

4

Cub Cadet IH-157729-R1

LENS, TAIL LIGHT

Note: USED ONLY W/LIGHTS, 370716-R91 AND 376850-R91

$

$

Currently unavailable

Cub Cadet IH-132764

SCREW, 8-32 X 5/8 C-Z SLT-RD-HD MACH

$

$

Currently unavailable

Cub Cadet IH-124228-C1

LENS TAIL LIGHT

Note: USED ONLY WITH LIGHT, 121846-C91.

$

$

Currently unavailable

5

NOT USED IN THIS APPLICATION

$

$

Not available
