Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 10001 - 17200) Rockshaft & Supports Parts Diagram

Cub Lo-Boy Tractor

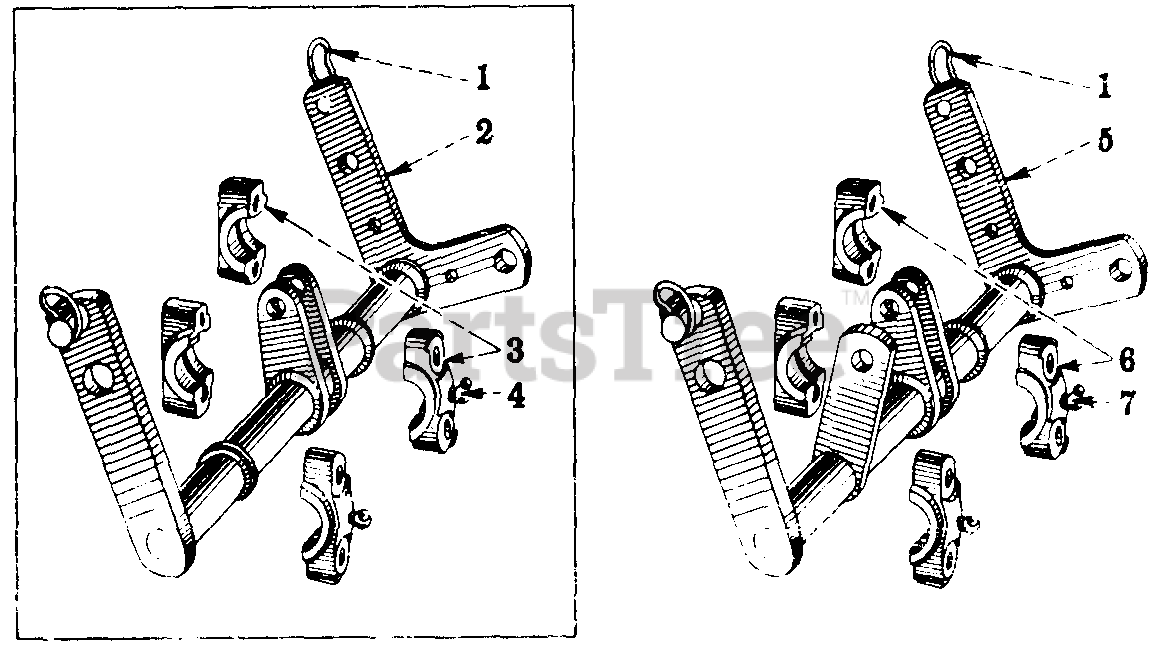

Rockshaft & Supports Parts Diagram

  • Title

1

Cub Cadet IH-460309-R1

PIN, QUICK ATTACHABLE COT

$

$

Currently unavailable

2

Cub Cadet IH-351990-R91

ROCKSHAFT ASSY

Note: W/O HELPER SPRING ARM- -ORDER PACKAGE, IH-362894-R91- -CUB TRACTORS W/SERIAL NO 185000 AND BELOW

$

$

Currently unavailable

3

Cub Cadet IH-352130-R91

BEARING ASSY, ROCKSHAFT

Note: USED UNIT WITH ROCKSHAFT, IH-351990-R91- -CUB TRACTORS W/SERIAL NO 185000 AND BELOW

$

$

Currently unavailable

4

Cub Cadet IH-109460

FITTING, 1/8 X 67-1/2 DEG ELBOW LUB

$

$

Currently unavailable

5

Cub Cadet IH-362883-R91

ROCKSHAFT ASSY

Note: W/HELPER SPRING ARM

$

$

Currently unavailable

6

Cub Cadet IH-362891-R91

BEARING ASSY, ROCKSHAFT

Note: USED ONLY WITH ROCKSHAFT, IH-362883-R91

$

$

Currently unavailable

Cub Cadet IH-179893

SCREW, 1/2-13 X 3 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103323

WASHER 1/2 MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

7

Cub Cadet IH-273359

FITTING, 3/16 X 65 DEG ELBOW DRIVE TYPE LUB

$

$

Not available

Cub Cadet IH-362894-R91

PACKAGE, SERVICE HYDRAULIC ROCKSHAFT

Note: WILL WORK FOR IH-351990-R91- -CUB TRACTORS W/SERIAL NO 185000 AND BELOW- -CONSISTS OF THE FOLLOWING 3 ITEMS.

$

$

Currently unavailable

Cub Cadet IH-362891-R91

BEARING

$

$

Currently unavailable

Cub Cadet IH-273359

FITTING

$

$

Not available

Cub Cadet IH-362883-R91

ROCKSHAFT

$

$

Currently unavailable
