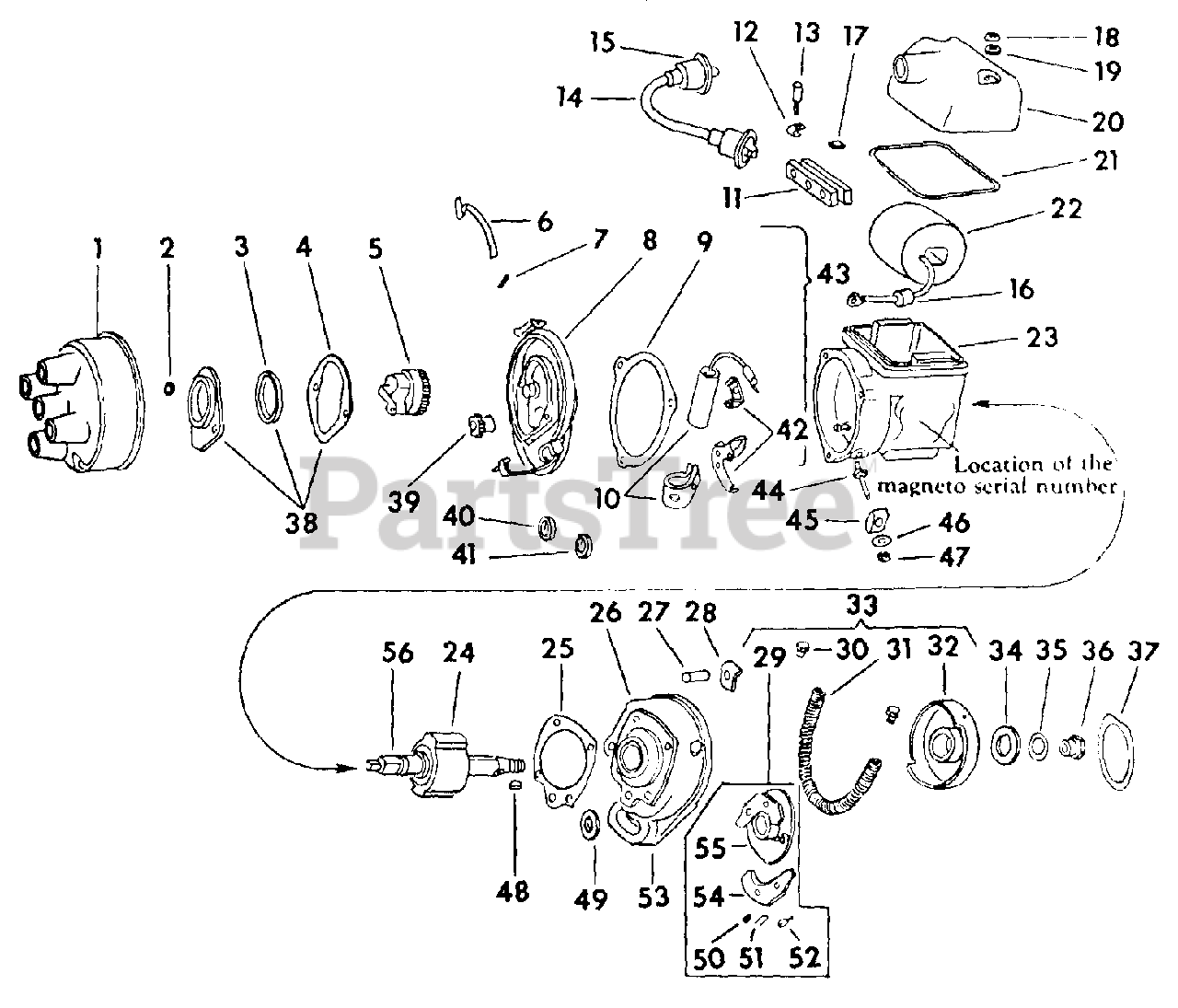

Magneto - International Type J-4 Parts Diagram

  • Title

Cub Cadet IH-251492-R91

MAGNETO, ASSEMBLY

Note: ORDER MAGNETO IH-374869-R91

$

$

Currently unavailable

Cub Cadet IH-374869-R91

MAGNETO

$

$

Currently unavailable

1

Cub Cadet IH-351693-R92

CAP, DISTRIBUTOR
(Superseded to IH-351693-R93)

$35.99

$

Usually ships in 3-6 days

0

2

Cub Cadet IH-38609DA

WASHER, DISTRIBUTOR GEAR COVER

$

$

Currently unavailable

3

Cub Cadet IH-251534-R1

FELT, DISTRIBUTOR GEAR COVER

$

$

Currently unavailable

4

Cub Cadet IH-251532-R1

GASKET, DISTRIBUTOR GEAR COVER

$

$

Currently unavailable

5

Cub Cadet IH-351692-R91

ROTOR, DISTRIBUTOR

$

$

Not available

6

Cub Cadet IH-51666D

SPRING, DISTRIBUTOR CAP

$

$

Currently unavailable

7

Cub Cadet IH-51667D

PIN, DISTRIBUTOR CAP SPRING

$

$

Currently unavailable

8

Cub Cadet IH-353451-R91

BODY ASSEMBLY, DISTRIBUTOR

Note: WILL WORK FOR IH-351694-R92-CONSISTS OF 1 BODY, 1 FELT IH-49423D, 1 GASKET IH-251530-R1, 2 PIN IH-51667D, 1 RETAINER IH-49424D, 3 SCREW IH-435429, 2 SPRING IH-51666D, 3 WASHER IH-120217

$

$

Currently unavailable

BODY

$

$

Not available

Cub Cadet IH-49423D

FELT

$

$

Currently unavailable

Cub Cadet IH-251530-R1

GASKET

$

$

Not available

Cub Cadet IH-51667D

PIN

$

$

Currently unavailable

Cub Cadet IH-49424D

RETAINER

$

$

Currently unavailable

Cub Cadet IH-435429

SCREW

$

$

Currently unavailable

Cub Cadet IH-51666D

SPRING

$

$

Currently unavailable

Cub Cadet IH-120217

WASHER
(Superseded to 736-0722)

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-435429

SCREW, NO. 10-32 X 9/16 CD-PLTD SLT-RD-HD MACH

$

$

Currently unavailable

Cub Cadet IH-120217

WASHER, NO. 10 CD-PLTD MED LOCK
(Superseded to 736-0722)

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet IH-251530-R1

GASKET, DISTRIBUTOR BODY

$

$

Not available

10

Cub Cadet IH-354136-R92

CONDENSER, W/CLAMP

Note: WILL WORK FOR IH-251539-R91; MAGNETO 501 TO 81410

$

$

Currently unavailable

Cub Cadet IH-131954

SCREW, NO. 8-32 X 5/16 CD-PLTD SLT-FIL-HD MACH

$

$

Not available

Cub Cadet IH-121841

WASHER, NO. 8 LOCK

$

$

Not available

10

Cub Cadet IH-353903-R92

CONDENSER ASSEMBLY
(Superseded to IH-353903-R93)

Note: MAGNETO 81411 AND ABOVE

$

$

Not available

Cub Cadet IH-131958

SCREW, NO. 8-32 x 5/16 CD-PLTD

$

$

Currently unavailable

Cub Cadet IH-121841

SLT-FIL-HD MACH WASHER, NO. 8 CD PLTD MED LOCK

$

$

Not available

11

Cub Cadet IH-251508-R91

CORE, COIL

$

$

Currently unavailable

12

Cub Cadet IH-251512-R1

CLIP, COIL CORE

$

$

Currently unavailable

13

Cub Cadet IH-251513-R1

SCREW, COIL CORE HOLD-DOWN

$

$

Currently unavailable

Cub Cadet IH-121841

WASHER, NO. 8 CD-PLTD MED LOCK

$

$

Not available

14

Cub Cadet IH-356686-R92

CABLE-W/TWO NIPPLES, COIL TO DISTRIBUTOR

Note: WILL WORK FOR IH-49125D

$

$

Not available

15

Cub Cadet IH-251553-R1

NIPPLE, COIL TO DISTRIBUTOR CAP

$

$

Not available

16

Cub Cadet IH-251565-R1

TUBE, PRIMARY LEADOUT SEALING

$

$

Currently unavailable

17

Cub Cadet IH-251552-R1

WEDGE, COIL

$

$

Currently unavailable

18

Cub Cadet IH-38609DA

WASHER, COIL COVER SCREW

$

$

Currently unavailable

19

Cub Cadet IH-251503-R1

WASHER, COIL COVER SEAL

$

$

Currently unavailable

20

Cub Cadet IH-251502-R11

COVER, COIL

$

$

Currently unavailable

Cub Cadet IH-132760

SCREW, NO. 8-32 X 1/2 CD-PLTD SL-RD-HD MACH

$

$

Currently unavailable

21

Cub Cadet IH-251507-R1

GASKET, COIL COVER

$

$

Currently unavailable

22

Cub Cadet IH-352355-R91

COIL,

Note: W/TWO WEDGES IH-251552-R1-AND ONE SEALING TUBE IH-251565-R1; WILL WORK FOR IH-251563-R91

$

$

Not available

23

Cub Cadet IH-353046-R91

FRAME-W/CUP, MAGNETO

Note: WILL WORK FOR IH-251551-R91

$

$

Currently unavailable

24

Cub Cadet IH-352354-R91

ROTOR, ASSEMBLY

Note: WILL WORK FOR IH-251522-R91; CONSISTS OF 1 CAM IH-60094-D, 1 KEEPER IH-352356-R11, 1 KEY IH-106749, 1 ROTOR, 4 SHIM IH-352359-R1.

$

$

Currently unavailable

Cub Cadet IH-60094-D

CAM

$

$

Currently unavailable

Cub Cadet IH-352356-R11

KEEPER

$

$

Currently unavailable

Cub Cadet IH-106749

KEY

$

$

Currently unavailable

ROTOR

$

$

Not available

Cub Cadet IH-352359-R1

SHIM

$

$

Currently unavailable

25

Cub Cadet IH-251536-R1

GASKET, MOUNTING FLANGE

$

$

Currently unavailable

26

Cub Cadet IH-353047-R92

FLANGE ASSEMBLY, MOUNTING

Note: WILL WORK FOR IH-251535-R21; CONSISTS OF 1 CUP IH-251498-R1, 1 OILER IH-27311D, 1 PIN IH-47468DA, 4 SCREW IH-426251, 4 WASHER IH-115547.

$

$

Currently unavailable

Cub Cadet IH-251498-R1

CUP

$

$

Currently unavailable

Cub Cadet IH-27311D

OILER

$

$

Currently unavailable

Cub Cadet IH-47468DA

PIN

$

$

Currently unavailable

Cub Cadet IH-426251

SCREW

$

$

Currently unavailable

Cub Cadet IH-115547

WASHER

$

$

Currently unavailable

Cub Cadet IH-113990

SCREW, 1/4-20 X 11/16 SLT-FIL-HD MACH

Note: MAGNETO 501 TO 37717

$

$

Currently unavailable

Cub Cadet IH-426251

SCREW, 1/4-20 X 9/16 SLT-FIL-HD

Note: MAGNETO 37718 AND ABOVE

$

$

Currently unavailable

Cub Cadet IH-114616

WASHER, 1/4 EXTERNAL TOOTH LOCK

Note: MAGNETO 501 TO 37717

$

$

Currently unavailable

Cub Cadet IH-115547

WASHER, 1/4 INTERNAL TOOTH LOCK

Note: MAGNETO 37716 AND ABOVE

$

$

Currently unavailable

27

Cub Cadet IH-47468DA

PIN, IMPULSE COUPLING STOP

$

$

Currently unavailable

28

Cub Cadet IH-251425-R1

CLIP, MAGNETO MOUNTING

Note: (NOT INCLUDED IN MAGNETO ASSEMBLY)

$

$

Currently unavailable

Cub Cadet IH-24909D

STUD, MAGNETO MOUNTING

$

$

Currently unavailable

Cub Cadet IH-114494

NUT, 3/8-24 HEX JAM
(Superseded to 912-3001)

Note: (NOT INCLUDED IN MAGNETO ASSEMBLY)

$6.99

$

In Stock, Qty 17

0

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

Note: (NOT INCLUDED IN MAGNETO ASSEMBLY)

$

$

Currently unavailable

29

Cub Cadet IH-352358-R91

MEMBER ASSEMBLY, MAGNETO

Note: CONSISTS OF 1 MEMBER IH-251561-R11, 2 PAWL IH-251557-R1, 2 RING IH-30114-D, 2 SPRING IH-51303-D, 2 WASHER IH-24610-D

$

$

Currently unavailable

Cub Cadet IH-251561-R11

MEMBER

$

$

Currently unavailable

Cub Cadet IH-251557-R1

PAWL

$

$

Currently unavailable

Cub Cadet IH-30114-D

RING

$

$

Currently unavailable

Cub Cadet IH-51303-D

SPRING

$

$

Currently unavailable

Cub Cadet IH-24610-D

WASHER

$

$

Currently unavailable

30

Cub Cadet IH-251555-R1

BUTTON, SPRING END

$

$

Currently unavailable

31

Cub Cadet IH-47822D

SPRING, MAGNETO COUPLING

$

$

Currently unavailable

32

Cub Cadet IH-251558-R11

MEMBER, DRIVE

$

$

Currently unavailable

33

Cub Cadet IH-251554-R91

ROTATING UNIT ASSEMBLY, IMPULSE COUPLING

Note: CONSISTS OF 2 BUTTON IH-251555-R1, 1 MEMBER IH-251558-R11, 1 MEMBER IH-352358-R91, 1 SPRING IH-47822D

$

$

Currently unavailable

Cub Cadet IH-251555-R1

BUTTON

$

$

Currently unavailable

Cub Cadet IH-251558-R11

MEMBER

$

$

Currently unavailable

Cub Cadet IH-352358-R91

MEMBER

$

$

Currently unavailable

Cub Cadet IH-47822D

SPRING

$

$

Currently unavailable

34

Cub Cadet IH-24603D

WASHER, MAGNETO MEMBER LOCK

$

$

Currently unavailable

35

Cub Cadet IH-251591-R1

WASHER, 1/2 IMPULSE COUPLING LOCK

$

$

Currently unavailable

36

Cub Cadet IH-47470D

NUT, IMPULSE COUPLING

$

$

Currently unavailable

37

Cub Cadet IH-46168-D8

GASKET, MAGNETO

Note: (NOT INCLUDED IN MAGNETO ASSEMBLY)

$

$

Currently unavailable

38

Cub Cadet IH-251531-R11

COVER

Note: W/GASKET IH-251532-R1 AND FELT IH-251534-R1 DISTRIBUTOR GEAR

$

$

Currently unavailable

Cub Cadet IH-132760

SCREW, NO. 8-32 X 1/2 CD PLTD SLT-HD-HD

$

$

Currently unavailable

39

Cub Cadet IH-251526-R1

PINION, ROTOR

$

$

Currently unavailable

40

Cub Cadet IH-49424D

RETAINER, DISTRIBUTOR BODY FELT

Note: WILL WORK FOR IH-251529-R1

$

$

Currently unavailable

41

Cub Cadet IH-49423D

FELT, DISTRIBUTOR BODY

$

$

Currently unavailable

42

Cub Cadet IH-353172-R91

POINT SET, MAGNETO
(Superseded to IH-353172-R92)

$32.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-436692

SCREW, NO. 8-32 X 5/16 CD-PLTD SLT-PAN HD MACH

$

$

Currently unavailable

43

Cub Cadet IH-407018-R91

SET, POINTS AND CONDENSER
(Superseded to IH-407018-R92)

$46.99

$

Usually ships in 3-6 days

0

44

Cub Cadet IH-355723-R91

SCREW, W/INSULATOR TERMINAL

Note: WILL WORK FOR IH-251571-R11-MAGNETO 501 TO 139747

$

$

Currently unavailable

44

Cub Cadet IH-353907-R1

SCREW, TERMINAL

Note: MAGNETO 139748 AND ABOVE

$

$

Currently unavailable

Cub Cadet IH-120622

NUT, NO.8-32 CD-PLTD HEX
(Superseded to 712-0142)

$4.49

$

In Stock, Qty 10

0

Cub Cadet IH-121841

WASHER, NO. 8 CD-PLTD MED LOCK

Note: MAGNETO 139748 AND ABOVE

$

$

Not available

45

Cub Cadet IH-353906-R1

INSULATOR, SPRING ANCHOR TERMINAL

Note: MAGNETO 139748 AND ABOVE

$

$

Not available

46

Cub Cadet IH-251538-R1

WASHER, TERMINAL INSULATOR

$

$

Currently unavailable

47

Cub Cadet IH-21394D

WASHER, STATIONARY POINT SUPPORT

$

$

Not available

48

Cub Cadet IH-106749

KEY, NO. 3 WOODRUFF TERMINAL

$

$

Currently unavailable

49

Cub Cadet IH-24523D

WASHER, MAGNETO BOLT

Note: WILL WORK FOR IH-62493D (NOT INCLUDED IN MAGNETO ASSEMBLY)

$

$

Currently unavailable

Cub Cadet IH-179843

SCREW, 3/8-16 X 1-1/2 HEX HD CAP

Note: (NOT INCLUDED IN MAGNETO ASSEMBLY)

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

Note: (NOT INCLUDED IN MAGNETO ASSEMBLY)

$

$

Currently unavailable

50

IH-24610D

WASHER, PAWL FIN

$

$

Not available

51

IH-30114D

RING, PAWL PIN SNAP

$

$

Not available

52

IH-51303D

SPRING, PAWL

$

$

Not available

53

Cub Cadet IH-27311D

OILER, BEARING

$

$

Currently unavailable

54

Cub Cadet IH-251557-R1

PAWL

$

$

Currently unavailable

55

Cub Cadet IH-251561-R11

MEMBER, MAGNETO

$

$

Currently unavailable

56

IH-60094D

CAM, BREAKER

$

$

Not available

Cub Cadet IH-352356-R11

KEEPER, MAGNETO ROTOR MAGNET

Note: USED TO PROTECT THE ROTOR MAGNET WHEN THE ROTOR IS DISASSEMBLED FROM THE MAGNETO (NOT INCLUDED IN MAGNETO ASSEMBLY)

$

$

Currently unavailable

Cub Cadet IH-352359-R1

SHIM, ROTOR SHAFT

$

$

Currently unavailable
