Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 10001 - 17200) Head Lights, Tail Light And Supports Parts Diagram

Cub Lo-Boy Tractor

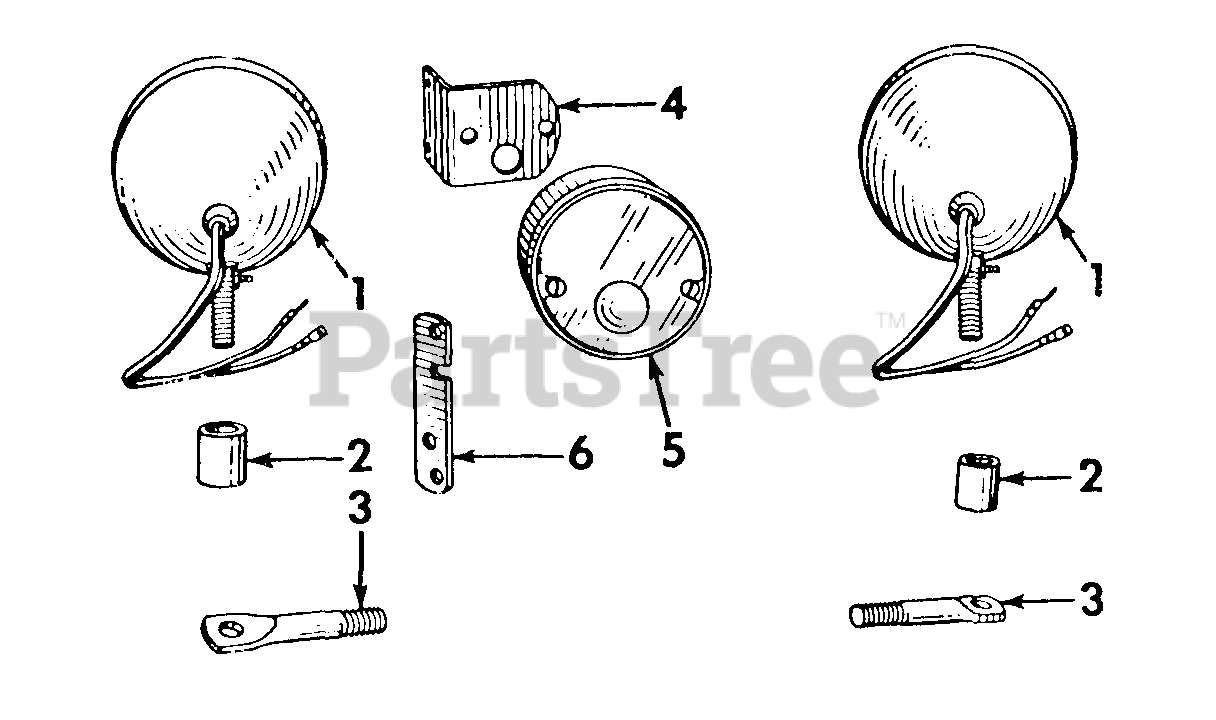

Head Lights, Tail Light And Supports Parts Diagram

  • Title

1

Cub Cadet IH-370734-R91

LIGHT ASSY. HEAD OR REAR

Note: 6 VOLT CUB TRACTORS W/SERIAL NO. 210001 TO 224000, CUB LO-BOY TRACTORS W/SERIAL NOS 10001 TO 18700 -FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF HEAD LIGHTS OR REAR LIGHT. ORDER LIGHT ASSY, 381181-R91 AND CABLE, 381182-R91.

$

$

Currently unavailable

Cub Cadet IH-381181-R91

LIGHT ASSY, HEAD OR REAR

Note: 6 VOLT ONLY SERVICEABLE ITEM IS SEALED BEAM UNIT, 373661-R91.

$

$

Currently unavailable

Cub Cadet IH-381182-R91

CABLE ASSY. LIGHT

$

$

Currently unavailable

Cub Cadet IH-102637

NUT, 1/2-13 HEX
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-103323

WASHER, 1/2 MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

Cub Cadet IH-376849-R91

LIGHT ASSY. HEAD 12 VOLT

Note: ONLY SERVICEABLE ITEMS ARE CONNECTOR 530029-R91 AND

$

$

Currently unavailable

Cub Cadet IH-373662-R93

LAMP ASSY. SEAL BEAM

Note: OPTIONAL W/131508-C1.

$

$

Currently unavailable

Cub Cadet IH-131508-C1

LAMP ASSY. SEAL BEAM

Note: TUNGSTEN - HALOGEN - OPTIONAL W/373662-R91 - CUB TRACTORS W/SERIAL NO. 224401 AND ABOVE. CUB LO-BOY TRACTORS W/SERIAL NO. 18701 & ABOVE.

$

$

Not available

Cub Cadet IH-102637

NUT, 1/2-13 HEX
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-103323

WASHER, 1/2 MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

2

Cub Cadet IH-45569D

SPACER, HEAD LIGHT

$

$

Currently unavailable

3

Cub Cadet IH-351341-R1

POST, HEAD LIGHT

$

$

Currently unavailable

Cub Cadet IH-114507

NUT, 5/8-11 HEX JAM

$

$

Currently unavailable

Cub Cadet IH-103325

WASHER, 5/8 MED LOCK

$

$

Currently unavailable

4

Cub Cadet IH-371029-R1

BRACKET, TAIL LIGHT

Note: ALL CUB LO-BOY TRACTORS AND CUB TRACTORS W/SERIAL NO. 250449 AND BELOW.

$

$

Currently unavailable

Cub Cadet IH-121848-C1

BRACKET TAIL LIGHT

Note: CUB TRACTORS W/SERIAL NO. 250450 AND ABOVE.

$

$

Currently unavailable

Cub Cadet IH-109084

NUT, 1/4-20 HEX

$

$

Currently unavailable

Cub Cadet IH-179793

SCREW, 1/4-20 X 5/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-303319

WASHER, 1/4 MED LOCK

$

$

Currently unavailable

5

LIGHT ASSY. TAIL

Note: FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF TAIL LIGHT.

$

$

Not available

6

Cub Cadet IH-364163-R1

BRACKET, TAIL LIGHT

Note: EXTENSION CUB LO-BOY TRACTORS ONLY.

$

$

Currently unavailable

Cub Cadet IH-103024

NUT, 1/4-28 HEX

$

$

Currently unavailable

Cub Cadet IH-181313

SCREW, 1/4-28 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER, 1/4 MED LOCK

$

$

Currently unavailable
