Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 10001 - 17200) Generator - Delco-Remy (Cub S/N 221292 And Below) Parts Diagram

Cub Lo-Boy Tractor

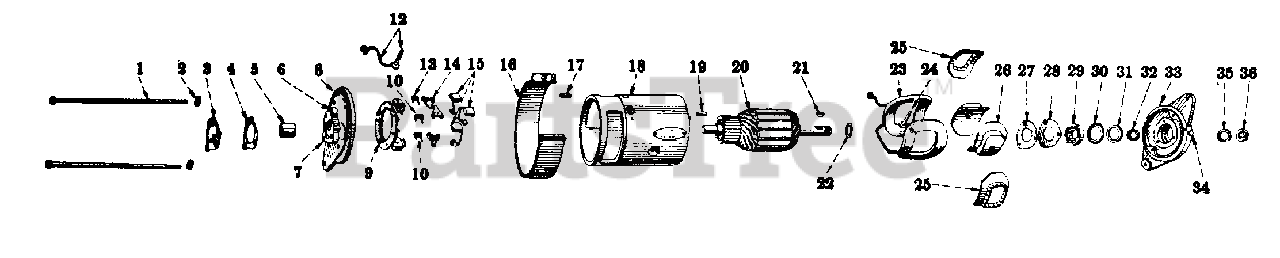

Generator - Delco-Remy (Cub S/N 221292 And Below) Parts Diagram

  • Title

Cub Cadet IH-1100501

GENERATOR ASSY - 6 VOLT

Note: (UNIT A; ORDER GENERATOR PACKAGE, IH-1947580)

$

$

Currently unavailable

Cub Cadet IH-1100531

GENERATOR ASSY - 6 VOLT

Note: (UNIT B; ORDER GENERATOR PACKAGE, IH-1947580)

$

$

Currently unavailable

Cub Cadet IH-1101423

GENERATOR ASSY - 6 VOLT

Note: (UNIT C; ORDER UNIVERSAL GENERATOR PACKAGE, IH-1947580 AND REGULATOR, IH-1118786)

$

$

Currently unavailable

Cub Cadet IH-1947580

GENERATOR PACKAGE

$

$

Currently unavailable

Cub Cadet IH-1118786

REGULATOR

$

$

Currently unavailable

1

Cub Cadet IH-1908680

BOLT, THRU

$

$

Currently unavailable

2

Cub Cadet IH-120638

WASHER, 5/16 C-Z HEAVY LOCK

$

$

Currently unavailable

3

Cub Cadet IH-820524

PLATE, COMMUTATOR END FRAME COVER

$

$

Currently unavailable

Cub Cadet IH-113899

SCREW, COVER PLATE

$

$

Currently unavailable

Cub Cadet IH-121841

WASHER, NO. 8 C-Z MED LOCK

$

$

Not available

4

Cub Cadet IH-817220

GASKET, COVER PLATE

$

$

Currently unavailable

5

Cub Cadet IH-812823

BUSHING, COMMUTATOR END

$

$

Currently unavailable

6

Cub Cadet IH-113702

OILER, COMMUTATOR END FRAME

$

$

Currently unavailable

Cub Cadet IH-1947350

WICK, COMMUTATOR END FRAME OILER

$

$

Currently unavailable

7

Cub Cadet IH-1911097

PLUG, COMMUTATOR END OILER WICK

$

$

Currently unavailable

8

Cub Cadet IH-1853830

FRAME ASSY, COMMUTATOR END

Note: (UNITS A AND B - COMPOSED OF THE FOLLOWING 6 ITEMS.

$

$

Currently unavailable

Cub Cadet IH-812823

BUSHING

$

$

Currently unavailable

FRAME

Note: (NOT AVAILABLE SEPARATELY)

$

$

Not available

Cub Cadet IH-113702

OILER

$

$

Currently unavailable

Cub Cadet IH-112005

PIN

$

$

Currently unavailable

Cub Cadet IH-1911097

PLUG

$

$

Currently unavailable

Cub Cadet IH-1947350

WICK

$

$

Currently unavailable

Cub Cadet IH-1908871

FRAME ASSY, COMMUTATOR END

Note: (UNIT C - COMPOSED OF THE FOLLOWING 6 ITEMS

$

$

Currently unavailable

Cub Cadet IH-812823

BUSHING

$

$

Currently unavailable

FRAME

Note: (NOT AVAILABLE SEPARATELY)

$

$

Not available

Cub Cadet IH-113702

OILER

$

$

Currently unavailable

Cub Cadet IH-112005

PIN

$

$

Currently unavailable

Cub Cadet IH-1911097

PLUG

$

$

Currently unavailable

Cub Cadet IH-1947350

WICK

$

$

Currently unavailable

9

Cub Cadet IH-1913565

PLATE W/THREE HOLDERS, BRUSH

$

$

Currently unavailable

Cub Cadet IH-113899

SCREW, BRUSH PLATE ATTACHING

$

$

Currently unavailable

Cub Cadet IH-121841

WASHER, NO. 8 C-Z MED LOCK

$

$

Not available

10

Cub Cadet IH-1850760

SPRING, MAIN BRUSH

Note: (FOR UNITS A & B)

$

$

Currently unavailable

Cub Cadet IH-809644

SPRING, BRUSH MAIN LH

Note: (UNIT C)

$

$

Currently unavailable

Cub Cadet IH-809658

SPRING, BRUSH MAIN RH

Note: (UNIT C)

$

$

Currently unavailable

?11

Cub Cadet IH-1906984

BRUSH, MAIN

Note: (FOR UNITS A AND B)

$

$

Currently unavailable

Cub Cadet IH-1880998

BRUSH PACKAGE

Note: (UNIT C; CONSISTS OF THREE BRUSHES)

$

$

Currently unavailable

Cub Cadet IH-132688

SCREW, 6-32 X 1/4 C-Z SLT-RD-HD MACH

$

$

Currently unavailable

Cub Cadet IH-1904377

WASHER, BRUSH LEAD ATTACHING SCREW LOCK

$

$

Currently unavailable

12

Cub Cadet IH-1858754

POLE, ARMATURE TERMINAL

Note: (INCLUDES LEAD, STUD, IH-1858751 AND TERMINAL)

$

$

Currently unavailable

Cub Cadet IH-1885090

BUSHING, TERMINAL STUD INSULATING

$

$

Currently unavailable

Cub Cadet IH-121743

NUT, 12-24 C-Z HEX

$

$

Not available

Cub Cadet IH-1858749

STUD, ARMATURE TERMINAL

$

$

Currently unavailable

Cub Cadet IH-1904661

WASHER, TERMINAL STUD LOCK

$

$

Currently unavailable

Cub Cadet IH-1881409

WASHER, TERMINAL STUD

$

$

Currently unavailable

Cub Cadet IH-1858753

WASHER, TERMINAL STUD INSULATING

$

$

Not available

13

Cub Cadet IH-1946798

SPRING, THIRD BRUSH

Note: (UNITS A & B)

$

$

Currently unavailable

Cub Cadet IH-809644

SPRING, THIRD BRUSH

Note: (UNIT C)

$

$

Currently unavailable

14

Cub Cadet IH-1904365

HOLDER, BRUSH

Note: (FOR UNITS A AND B)

$

$

Currently unavailable

Cub Cadet IH-809642

HOLDER, BRUSH

Note: (FOR UNIT C)

$

$

Currently unavailable

Cub Cadet IH-1857412

WASHER, BRUSH HOLDER SPACE PLAIN

$

$

Currently unavailable

15

Cub Cadet IH-1857963

BRUSH, THIRD

Note: (UNITS A AND B)

$

$

Currently unavailable

Cub Cadet IH-1880998

BRUSH PACKAGE

Note: (UNIT C; CONSISTS OF THREE BRUSHES)

$

$

Currently unavailable

Cub Cadet IH-132688

SCREW, 6-32 X 1/4 C-Z SLT-RD-HD MACH

$

$

Currently unavailable

Cub Cadet IH-1904377

WASHER, BRUSH LEAD ATTACHING SCREW LOCK

$

$

Currently unavailable

16

Cub Cadet IH-1872638

BAND, COVER W/NUT IH-120614 AND SCREW, IH-132926

$

$

Currently unavailable

Cub Cadet IH-132926

SCREW, 10/32 X 1-1/4 C-Z SLT-RD-HD MACH

$

$

Currently unavailable

Cub Cadet IH-120614

NUT, 10-32 C-Z HEX MACH SCREW
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

17

Cub Cadet IH-112005

PIN, COMMUTATOR END FRAME DOWEL

$

$

Currently unavailable

18

FRAME

Note: (NOT SERVICED SEPARATELY)

$

$

Not available

19

Cub Cadet IH-809593

PIN, DRIVE END FRAME DOWEL

$

$

Currently unavailable

20

Cub Cadet IH-1947802

ARMATURE

Note: (UNIT A)

$

$

Currently unavailable

Cub Cadet IH-1921351

ARMATURE

Note: (UNIT B)

$

$

Currently unavailable

Cub Cadet IH-1947352

ARMATURE

Note: (UNIT C)

$

$

Currently unavailable

21

Cub Cadet IH-124545

KEY, 1/8 X 5/8 WOODRUFF NO. 5 ALY-STL

$

$

Not available

22

Cub Cadet IH-809945

WASHER, DRIVE END SPACE

$

$

Currently unavailable

23

Cub Cadet IH-1913554

COIL SET, FIELD

$

$

Currently unavailable

24

Cub Cadet IH-1858749

STUD, FIELD TERMINAL

$

$

Currently unavailable

Cub Cadet IH-1885090

BUSHING, TERMINAL STUD INSULATING

$

$

Currently unavailable

Cub Cadet IH-121743

NUT, 12-24 C-Z HEX

$

$

Not available

Cub Cadet IH-1904661

WASHER, TERMINAL STUD LOCK

$

$

Currently unavailable

Cub Cadet IH-1881409

WASHER, TERMINAL STUD

$

$

Currently unavailable

Cub Cadet IH-1858753

WASHER, TERMINAL STUD INSULATING

$

$

Not available

25

Cub Cadet IH-1914491

INSULATOR, FIELD COIL

$

$

Currently unavailable

26

Cub Cadet IH-1931258

SHOE, POLE

$

$

Currently unavailable

Cub Cadet IH-1968396

SCREW, POLE SHOE

$

$

Not available

27

Cub Cadet IH-1911263

PLATE, BALL BEARING RETAINER

$

$

Currently unavailable

Cub Cadet IH-1914580

SCREW, BEARING RETAINER PLATE

$

$

Currently unavailable

Cub Cadet IH-178383

WASHER, BEARING RETAINER PLATE SCREW LOCK

$

$

Currently unavailable

28

Cub Cadet IH-1912008

GASKET, BALL BEARING RETAINER PLATE

$

$

Not available

29

Cub Cadet IH-954378

BEARING, BALL

Note: (DRIVE END)

$

$

Currently unavailable

30

Cub Cadet IH-819104

RETAINER, DRIVE AND FELT WASHER

$

$

Currently unavailable

31

Cub Cadet IH-809961

WASHER, FELT DRIVE END

$

$

Currently unavailable

32

Cub Cadet IH-817224

SPACER, PULLEY

$

$

Currently unavailable

33

Cub Cadet IH-1873830

FRAME, DRIVE END

$

$

Currently unavailable

34

Cub Cadet IH-125609

OILER, DRIVE END BEARING

$

$

Currently unavailable

35

Cub Cadet IH-804000

WASHER, DRIVE END SHAFT NUT LOCK

$

$

Currently unavailable

36

Cub Cadet IH-1917746

NUT, DRIVE END SHAFT

Note: (UNITS A AND C)

$

$

Currently unavailable

Cub Cadet IH-1915172

NUT, DRIVE END SHAFT

Note: (UNIT B)

$

$

Currently unavailable
