Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 10001 - 17200) Gear Shift Mechanism Parts Diagram

Cub Lo-Boy Tractor

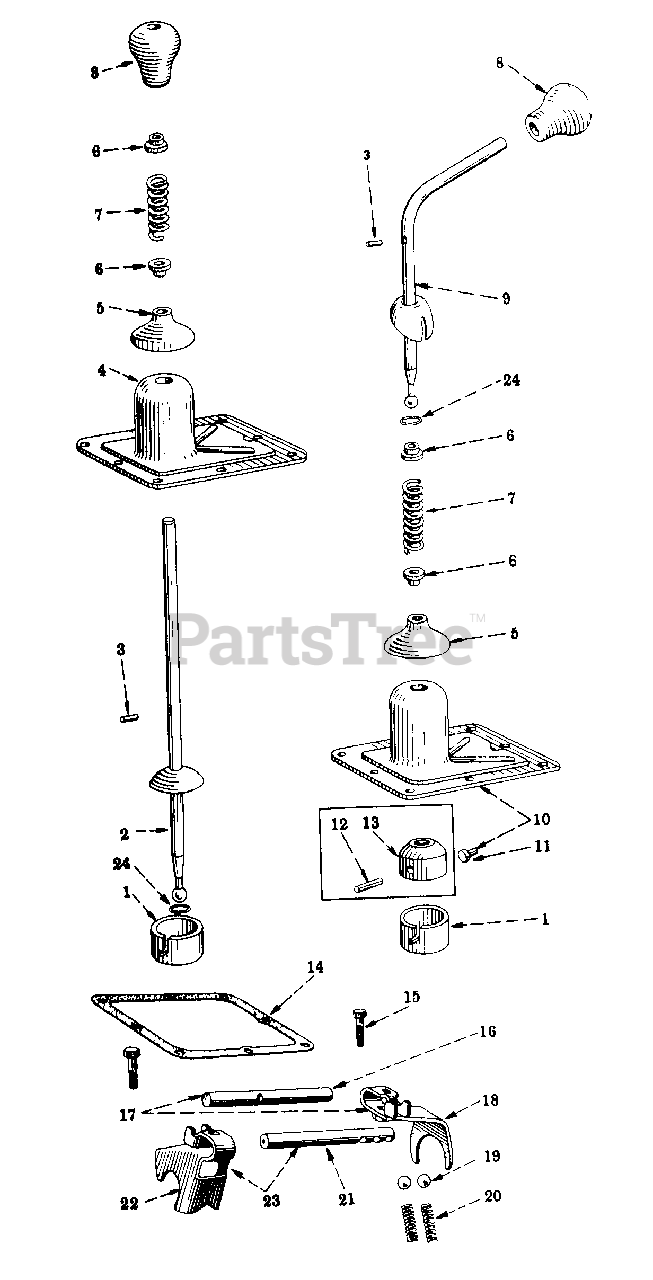

Gear Shift Mechanism Parts Diagram

  • Title

1

Cub Cadet IH-351547-R1

GUIDE, GEAR SHIFT LEVER

$

$

Not available

2

Cub Cadet IH-356530-R91

LEVER ASSY, GEAR SHIFT

Note: USED ONLY ON CUB TRACTORS WITHOUT DELUXE CUSHION SEAT

$

$

Not available

3

Cub Cadet IH-382646-R1

PIN, GEAR SHIFT SWIVEL SPRING RETAINER
(Superseded to 715-0147)

$

$

Not available

4

Cub Cadet IH-351545-R2

HOUSING GEAR SHIFT LEVER

Note: USED ONLY ON CUB TRACTORS WITHOUT DELUXE CUSHION SEAT

$

$

Not available

Cub Cadet IH-179812

SCREW, 5/16-18 X 1/2 HEX-HD CAP

$

$

Currently unavailable

5

Cub Cadet IH-350882-R1

SHIELD, GEAR SHIFT LEVER

$

$

Not available

6

Cub Cadet IH-350884-R1

RETAINER GEAR SHIFT SWIVEL SPRING
(Superseded to 703-0915)

$

$

Not available

7

Cub Cadet IH-350883-R1

SPRING GEAR SHIFT SWIVEL

$

$

Not available

8

IH-53717DA

KNOB, GEAR SHIFT LEVER

$

$

Not available

9

Cub Cadet IH-364067-R12

LEVER ASSY, GEAR SHIFT

Note: USED ONLY ON CUB TRACTORS WITH DELUXE CUSHION SEAT AND ALL CUB LO-BOY TRACTORS

$

$

Not available

10

Cub Cadet IH-364065-R11

HOUSING W/PIN, IH-364066-R1, GEAR SHIFT LEVER

Note: USED ONLY ON CUB TRACTORS WITH DELUXE CUSHION SEAT AND ALL CUB LO-BOY TRACTORS

$

$

Currently unavailable

Cub Cadet IH-179814

SCREW, 5/16-18 X 5/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

11

Cub Cadet IH-364066-R1

PIN, GEAR SHIFT LEVER SWIVEL STOP
(Superseded to 711-3131)

Note: USED ONLY ON CUB TRACTORS WITH DELUXE CUSHION SEAT AND ALL CUB LO-BOY TRACTORS

$18.99

$

Usually ships in 3-6 days

0

12

Cub Cadet IH-553686-R1

PIN, 3/16 X 1-1/2 ROLL

Note: NOT USED ON LEVERS WITH WELDED SWIVEL - USED ONLY ON CUB TRACTORS WITH DELUXE CUSHION SEAT AND ALL CUB LO-BOY TRACTORS

$

$

Not available

13

Cub Cadet IH-364068-R1

SWIVEL, GEAR SHIFT LEVER

Note: NOT USED ON LEVERS WITH WELDED SWIVEL - USED ONLY ON CUB TRACTORS WITH DELUXE CUSHION SEAT AND ALL CUB LO-BOY TRACTORS

$

$

Currently unavailable

14

Cub Cadet IH-351546-R1

GASKET, GEAR SHIFT LEVER HOUSING
(Superseded to IH-351546-R3)

$15.99

$

In Stock, Qty 6

0

15

Cub Cadet IH-351543-R2

SCREW, SHIFTER FORK

$

$

Not available

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

16

Cub Cadet IH-352774-R3

ROD, SECOND AND THIRD SPEED SHIFTER

Note: CUB TRACTORS W/SERIAL NO. 5000 & ABOVE ALL CUB LO-BOY TRACTORS

$

$

Not available

17

Cub Cadet IH-352766-R97

FORK ASSY, SECOND AND THIRD SPEED SHIFTER

Note: ORDER FORK, IH-355601- R92 AND ROD, IH-352774-R3 - CUB TRACTORS W/SERIAL NO. 4999 & BELOW

$

$

Currently unavailable

18

Cub Cadet IH-355601-R92

FORK W/SCREW, IH-351543-R2 AND WASHER, IH-103320.

Note: SECOND AND THIRD SPEED SHIFTER; CUB TRACTORS W/SERIAL NO. 5000 & ABOVE. ALL CUB LO-BOY TRACTORS

$

$

Currently unavailable

19

Cub Cadet IH-16012-R1

BALL. 3/8 DIAMETER CR-STL - GEAR SHIFTER POPPET

$

$

Not available

20

Cub Cadet IH-350876-R1

SPRING GEAR SHIFTER POPPET
(Superseded to 732-0424)

$8.49

$

Usually ships in 3-6 days

0

21

Cub Cadet IH-352770-R3

ROD, FIRST AND REVERSE SPEED SHIFTER

Note: CUB TRACTORS W/SERIAL NO. 5000 & ABOVE ALL CUB LO-BOY TRACTORS

$

$

Not available

22

Cub Cadet IH-355600-R93

FORK W/SCREW, IH-351543-R2 AND WASHER IH-103320.

Note: FIRST AND REVERSE SPEED SHIFTER; CUB TRACTORS W/SERIAL NO. 5000 & ABOVE. ALL CUB LO BOY TRACTORS

$

$

Currently unavailable

23

Cub Cadet 1H-352773-R97

FORK ASSY, FIRST AND REVERSE SPEED SHIFTER

Note: ORDER FORK IH-355600-R93 AND ROD, IH-352770-R3; CUB TRACTORS W/SERIAL NO. 4999 & BELOW

$

$

Currently unavailable

24

Cub Cadet IH-370920-R1

O-RING, 1/2 X 5/8 X 1/16 - GEAR SHIFT LEVER
(Superseded to 721-0184)

$

$

Not available

Cub Cadet IH-353044-R1

CLAMP, SHIFTER FORK

Note: ORDER FORK, IH-355600-R93 OR IH-355601-R92; CUB TRACTORS W/SERIAL NOS. 8525 TO 13586

$

$

Currently unavailable
