Cub Lo-Boy Tractor

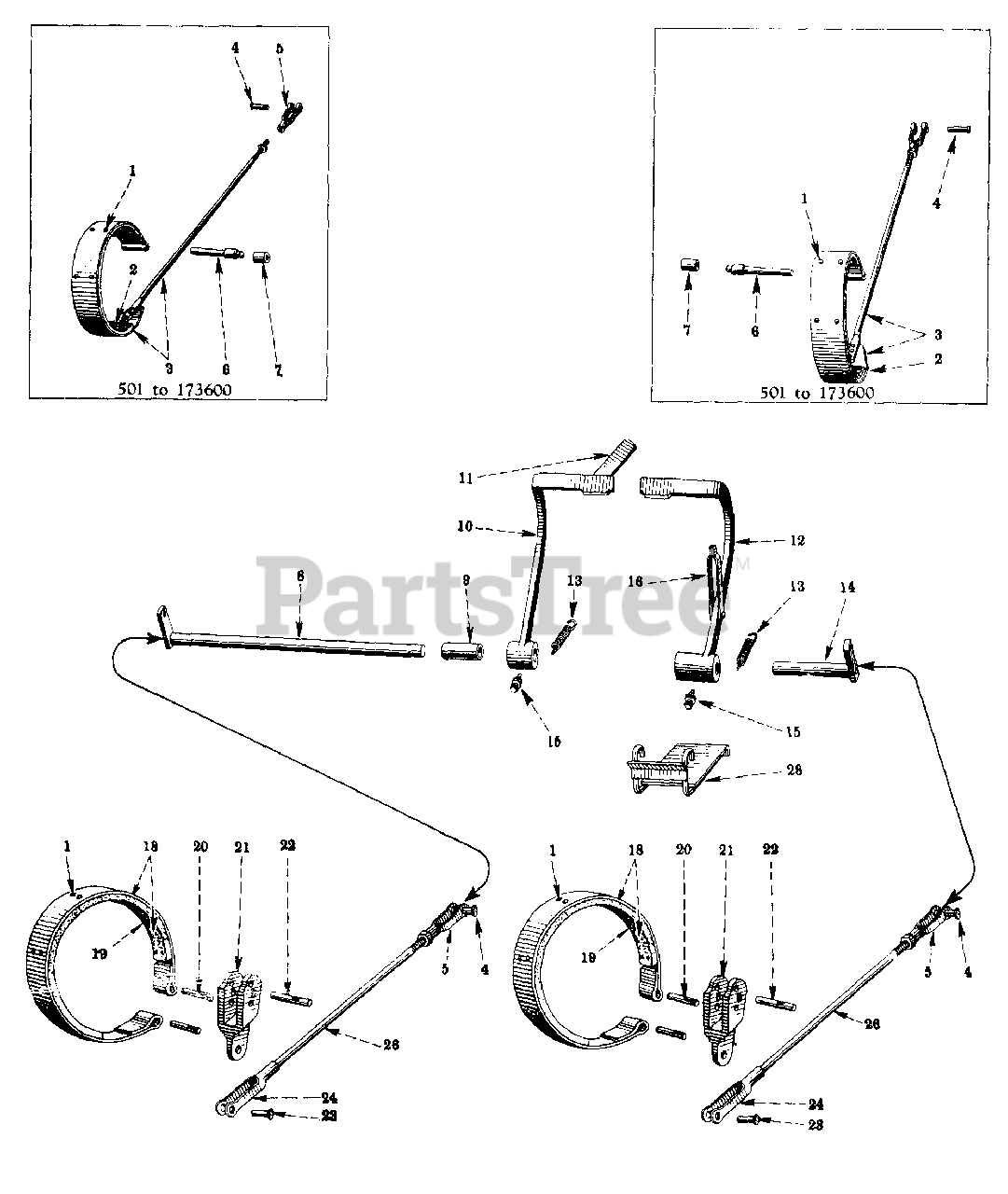

Foot Brakes Parts Diagram

  • Title

1

Cub Cadet IH-59469D

RIVET BRAKE BAND

$

$

Not available

2

Cub Cadet IH-352611-R93

LINING SET, BRAKE

Note: (CONSISTS OF ONE LINING, AND TEN RIVETS, IH-59469D - CUB TRACTORS W/SERIAL NO. 173600 AND BELOW.)

$

$

Currently unavailable

3

Cub Cadet IH-350967-R21

BAND ASSY. BRAKE
(Superseded to IH-350967-R22)

Note: (CUB TRACTORS WITH SERIAL NO. 173600 AND BELOW - COMPOSED OF 1 BAND IH-350967-R2, 1 LINING IH-350988-R1, 10 RIVET IH-59469D & 1 ROD IH-350989-R1)

$

$

Not available

Cub Cadet IH-350967-R21

BAND
(Superseded to IH-350967-R22)

Note: (NOT AVAILABLE SEPARATELY)

$

$

Not available

Cub Cadet IH-350988-R1

LINING

Note: (NOT AVAILABLE SEPARATELY)

$

$

Currently unavailable

Cub Cadet IH-350989-R1

ROD

Note: (NOT AVAILABLE SEPARATELY)

$

$

Currently unavailable

Cub Cadet IH-103025

NUT, 5/16-24 HEX

$

$

Currently unavailable

4

Cub Cadet IH-103495

PIN, 5/16 X 15/16 ROD END BRAKE
(Superseded to 711-3060)

Note: ROD ADJUSTABLE CLEVIS

$

$

Not available

Cub Cadet IH-103373

PIN, 3/32 X 3/4 COT
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

5

Cub Cadet IH-104037

CLEVIS, 5/16-24 ADJ ROD END

Note: BRAKE ROD

$

$

Currently unavailable

6

Cub Cadet IH-352361-R1

PIN, BRAKE BAND ANCHOR

Note: (WILL WORK FOR IH-350990-R1 AND IH-56151D - CUB TRACTORS W/SERIAL NOS 18559 TO 173600)

$

$

Currently unavailable

Cub Cadet IH-360040 R1

PIN, BRAKE BAND ANCHOR

Note: (USED WITH PACKAGE IH-360043-R91 - CUB TRACTORS W/SERIAL NOS. 173600 AND BELOW)

$

$

Currently unavailable

7

Cub Cadet IH-56151D

SPACER, BRAKE BAND

Note: (ORDER PIN, IH-352361-R1 - CUB TRACTORS W/SERIAL NO. 18558 AND BELOW)

$

$

Currently unavailable

8

Cub Cadet IH-351487-R21

SHAFT ASSY. LH BRAKE

$

$

Currently unavailable

Cub Cadet IH-103386

PIN, 1/8 X 1-1/4 COT.

$

$

Currently unavailable

Cub Cadet IH-103346

WASHER, 13/32 X 1-1/2 X 10 GA

$

$

Currently unavailable

9

Cub Cadet IH-351488-R1

SPACER, LH BRAKE SHAFT

Note: (CUB TRACTORS W/SERIAL NO. 17528 AND BELOW)

$

$

Currently unavailable

10

Cub Cadet IH-350991-R11

PEDAL ASSY. LH BRAKE

Note: (COMPOSED OF FOLLOWING 6 ITEMS)

$

$

Currently unavailable

Cub Cadet IH-350994-R1

BLOCK

Note: (NOT AVAILABLE SEPARATELY)

$

$

Currently unavailable

Cub Cadet IH-350992-R1

HUB

Note: (NOT AVAILABLE SEPARATELY)

$

$

Currently unavailable

Cub Cadet IH-350993-R1

LATCH

$

$

Currently unavailable

Cub Cadet IH-350991-R1

PEDAL

Note: (NOT AVAILABLE SEPARATELY)

$

$

Currently unavailable

Cub Cadet IH-104086

RIVET

$

$

Currently unavailable

Cub Cadet IH-51293D

SPRING

Note: (NOT AVAILABLE SEPARATELY)

$

$

Not available

11

Cub Cadet IH-350993-R1

LATCH BRAKE

$

$

Currently unavailable

Cub Cadet IH-104086

RIVET 1/4 X 1-1/8 RD-HD

$

$

Currently unavailable

12

Cub Cadet IH-350998-R11

PEDAL

Note: (W/RATCHET IH-350995-R91 AND RIVET IH-104083 RH BRAKE)

$

$

Currently unavailable

13

Cub Cadet IH-350951-R1

SPRING, BRAKE PEDAL RETURN

$

$

Not available

14

Cub Cadet IH-351003-R11

SHAFT ASSY, RH BRAKE

$

$

Currently unavailable

15

Cub Cadet IH-351000-R1

SCREW BRAKE PEDAL LOCK

$

$

Currently unavailable

Cub Cadet IH-114503

NUT, 3/8-16 HEX JAM

$

$

Currently unavailable

16

Cub Cadet IH-350995-R91

RATCHET BRAKE

$

$

Currently unavailable

Cub Cadet IH-104083

RIVET, 1/4 X 3/4 RD-HD

$

$

Currently unavailable

18

Cub Cadet IH-358753-R12

BAND
(Superseded to IH-358753-R22)

Note: (W/LINING AND TEN RIVETS IH-59469D, BRAKE; CUB TRACTORS W/SERIAL NO. 173601 & ABOVE. ALL CUB LO-BOY TRACTORS)

$

$

Not available

19

Cub Cadet IH-358895-R91

PACKAGE, BRAKE LINING SERVICE
(Superseded to IH-358753-R22)

Note: (CUB TRACTORS W/SERIAL NO. 173601 & ABOVE. ALL CUB LO-BOY TRACTORS - CONSISTS OF 1 LINING IH-358754-R1 & 10 RIVET IH-59469D)

$

$

Not available

20

Cub Cadet IH-358755-R1

PIN, BRAKE BAND ANCHOR

Note: (CUB TRACTOR W/SERIAL NO. 173601 & ABOVE. ALL CUB LO-BOY TRACTORS.)

$

$

Currently unavailable

21

Cub Cadet IH-358758-R2

TOGGLE, LH BRAKE BAND ACTUATING

Note: (CUB TRACTOR W/SERIAL NO. 173601 & ABOVE. ALL CUB LO-BOY TRACTORS.)

$

$

Currently unavailable

Cub Cadet IH-358759-R2

TOGGLE, RH BRAKE BAND ACTUATING

Note: (CUB TRACTOR W/SERIAL NO. 173601 & ABOVE. ALL CUB LO-BOY TRACTORS.)

$

$

Currently unavailable

22

Cub Cadet IH-359865-R1

PIN, BRAKE BAND PIVOT

Note: (CUB TRACTOR W/SERIAL NO. 173601 & ABOVE. ALL CUB LO-BOY TRACTORS.)

$

$

Not available

23

Cub Cadet IH-103495

PIN, 5/16 X 15/16 ROD END - BRAKE ROD ADJUSTABLE CLEVIS
(Superseded to 711-3060)

Note: (CUB TRACTOR W/SERIAL NO. 173601 & ABOVE. ALL CUB LO-BOY TRACTORS.)

$

$

Not available

Cub Cadet IH-103373

PIN, 3/32 X 3/4 COT.
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

24

Cub Cadet IH-104037

CLEVIS, 5/16-24 ADJ ROD END - BRAKE ROD

Note: (CUB TRACTOR W/SERIAL NO. 173601 & ABOVE. ALL CUB LO-BOY TRACTORS.)

$

$

Currently unavailable

26

Cub Cadet IH-360130-R1

ROD, BRAKE OPERATING

Note: (CUB TRACTOR W/SERIAL NO. 173601 & ABOVE. ALL CUB LO-BOY TRACTORS.)

$

$

Not available

Cub Cadet IH-114493

NUT, 5/16-24 HEX. JAM

$

$

Currently unavailable

28

Cub Cadet IH-368578-R11

PLATE ASSY. STEP

$

$

Currently unavailable

Cub Cadet IH-57406H

SPACER, BRAKE BAND

Note: (USED WITH PACKAGE IH-360043-R91 - CUB TRACTOR W/SERIAL NO. 173600 & BELOW)

$

$

Currently unavailable
