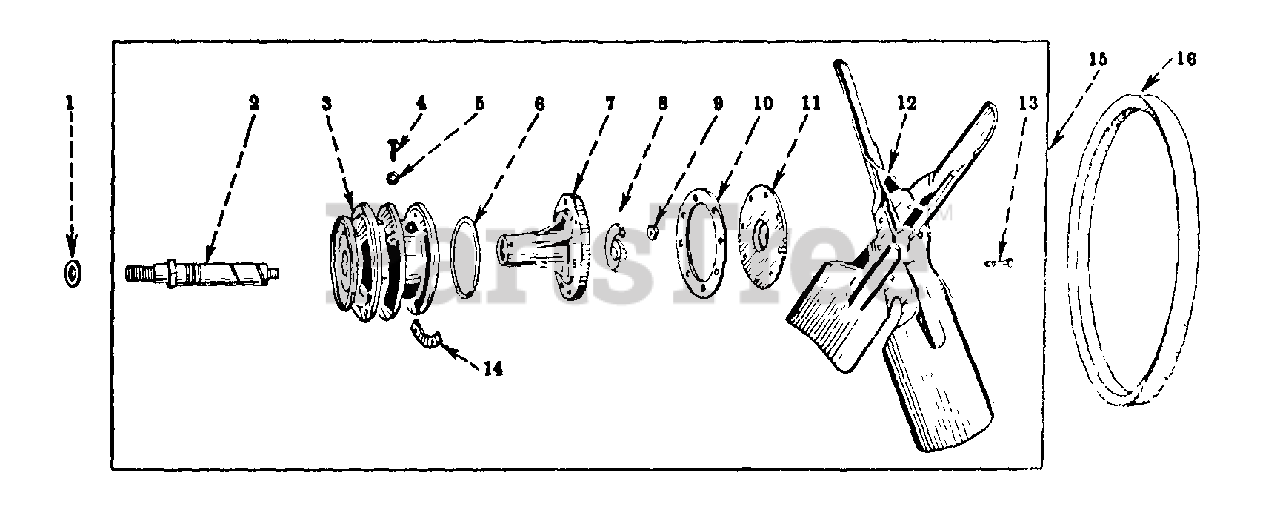

  • Title
1

Cub Cadet IH-43293D

WASHER, FAN SHAFT

$

$

Not available

2

SPINDLE AND BEARING ASSY

Note: -ON ORDERS FOR IH-251647-R91 FOR FARMALL CUB WITH ENGINE SERIAL NO. 165152 AND BELOW, FURNISH IH-131489-C91, HUB ASSY, ALL OTHER MACHINES, FURNISH IH-131486-C91, HUB ASSY-

$

$

Not available

3

HUB ASSY

Note: -CUB AND CUB LO-BOY TRACTORS W/ENGINE SERIAL NO. 165153 AND ABOVE- -ON ORDERS FOR IH-364898-R91, FURNISH IH-131486-C91, HUB ASSY-

$

$

Not available

HUB ASSY

Note: -FARMALL CUB W/ENGINE SERIAL NO 501 TO 165152- -ON ORDERS FOR IH-251645-R91, FURNISH IH-131489-C91, HUB ASSY-

$

$

Not available

4

Cub Cadet IH-100776

SCREW, OIL RETAINING

Note: -REPLACES IH-70206D-

$

$

Currently unavailable

5

Cub Cadet IH-27948-R1

RING, 1/4 RECTANGULAR SEAL

Note: -REPLACES IH-70208D-

$

$

Currently unavailable

6

Cub Cadet IH-70207D

GASKET, FAN HUB

$

$

Currently unavailable

Cub Cadet IH-360703-R1

GASKET, FAN HUB

$

$

Currently unavailable

7

NOT SERVICED SEPARATELY

$

$

Not available

8

NOT SERVICED SEPARATELY

$

$

Not available

9

Cub Cadet IH-9413243

NUT, 3/8-4 CDP P/T HEX

Note: -REPLACES IH-70209D-

$

$

Currently unavailable

10

Cub Cadet IH-70200D

GASKET, FAN BEARING

$

$

Currently unavailable

11

CAP, FAN BEARING

Note: -DISCONTINUED FOR SERVICE-

$

$

Not available

12

$

$

Currently unavailable

13

Cub Cadet IH-12922-R1

SCREW, 10-32 X 9/16 SLT-FIL-HD MACH

$

$

Currently unavailable

Cub Cadet IH-106497

WASHER, NO. 10 REG LOCK

$

$

Currently unavailable

Cub Cadet IH-103101

NUT, 10-32 SQ. MACH SCREW

$

$

Currently unavailable

14

NUT, DOUBLE

Note: -DISCONTINUED FOR SERVICE-

$

$

Not available

15

FAN AND HUB ASSY

Note: -FARMALL CUB W/ENGINE SERIAL NO. 501 TO 165152- -ON ORDERS FOR IH-251427-R91, FURNISH IH-131489-C91, HUB ASSY AND IH-351870-R91, FAN BLADE-

$

$

Not available

FAN ASSY

Note: -CUB AND CUB LO-BOY TRACTORS W/ENGINE SERIAL NO 165153 AND ABOVE- -ON ORDERS FOR IH-358210-R91 OR IH-358211-R91, FURNISH IH-131486-C91, HUB ASSY AND IH-351870-R91 FAN BLADE-

$

$

Not available

Cub Cadet IH-114498

NUT, 5/8 18 HEX JAM

$

$

Currently unavailable

16

$

$

Not available
