Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 10001 - 17200) Electric Horn -6 Volt- Parts Diagram

Cub Lo-Boy Tractor

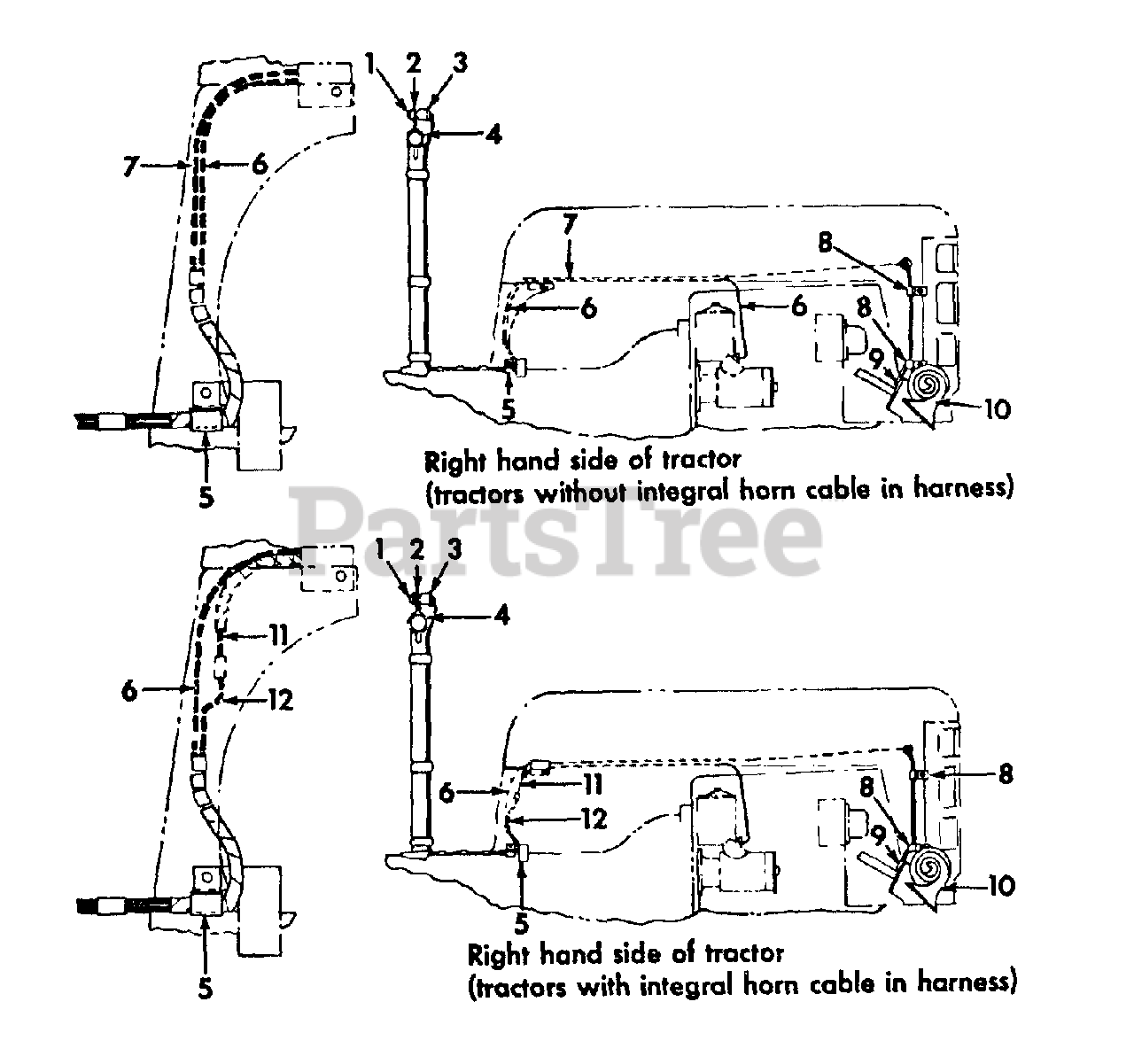

Electric Horn -6 Volt- Parts Diagram

  • Title

Cub Cadet IH-373973-R92

PARTS ACCESSORY, ELECTRIC HORN

Note: ALSO ORDER CABLE, IH-372062-R91

$

$

Currently unavailable

1

Cub Cadet IH-371487-R1

CAP, HORN SWITCH DUST -GRAY-

$

$

Currently unavailable

2

Cub Cadet IH-372056-R1

BRACKET, HORN SWITCH MOUNTING

$

$

Currently unavailable

Cub Cadet IH-179795

SCREW, 1/4-20 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER, 1/4 MED LOCK

$

$

Currently unavailable

3

Cub Cadet IH-393209-R91

SWITCH ASSY, HORN -LESS CAP-

$

$

Not available

4

Cub Cadet IH-372057-R11

CLAMP ASSY, HORN SWITCH MOUNTING BRACKET

$

$

Currently unavailable

5

Cub Cadet IH-362121-R1

CLIP CABLE
(Superseded to 726-3008)

Note: ON HOOD AND FUEL TANK SUPPORT

$4.99

$

Usually ships in 3-6 days

0

6

Cub Cadet IH-372062-R91

CABLE, HORN SWITCH TO STARTING SWITCH

Note: NOT INCLUDED IN THE ELECTRIC HORN PARTS ACCESSORY

$

$

Currently unavailable

6

Cub Cadet IH-358564-R91

CABLE, HORN SWITCH TO CHARGE INDICATOR

Note: NOT INCLUDED IN THE ELECTRIC HORN PARTS ACCESSORY

$

$

Currently unavailable

7

Cub Cadet IH-372050-R91

CABLE ASSY, HORN SWITCH TO HORN

Note: NOT INCLUDED IN THE ELECTRIC HORN PARTS ACCESSORY

$

$

Currently unavailable

8

Cub Cadet IH-366460-R1

CLIP, CABLE
(Superseded to 726-0272)

Note: ON RH SIDE HOOD GRILLE FASTENER MOUNTING BOLTS

$7.49

$

Usually ships in 3-6 days

0

9

Cub Cadet IH-372055-R2

BRACKET, HORN MOUNTING

$

$

Currently unavailable

Cub Cadet IH-179841

SCREW, 3/8-16 X 1-1/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

10

Cub Cadet IH-385531-R91

HORN ASSY -LOW PITCH-

$

$

Currently unavailable

Cub Cadet IH-102634

NUT, 5/16-18 HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-179816

SCREW, 5/16-18 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

11

CABLE, HORN TO CONNECTOR -DARK GREEN-

Note: ORDER HARNESS ASSY

$

$

Not available

12

Cub Cadet IH-373744-R91

CABLE ASSY, HORN SWITCH TO LINE CONNECTOR

$

$

Currently unavailable

Cub Cadet IH-385539-R1

BRACKET, HORN MOUNTING

Note: THESE PARTS ARE NOT REQUIRED FOR USE ON CUB AND CUB LO-BOY TRACTORS BUT ARE SUPPLIED IN THE PARTS ACCESSORY THAT IS ALSO AVAILABLE FOR OTHER TRACTORS.

$

$

Currently unavailable

Cub Cadet IH-372063-R91

CABLE ASSY, HORN SWITCH TO CHARGE INDICATOR

Note: THESE PARTS ARE NOT REQUIRED FOR USE ON CUB AND CUB LO-BOY TRACTORS BUT ARE SUPPLIED IN THE PARTS ACCESSORY THAT IS ALSO AVAILABLE FOR OTHER TRACTORS.

$

$

Currently unavailable

Cub Cadet IH-385540-R91

CABLE ASSY, HORN SWITCH TO HORN

Note: THESE PARTS ARE NOT REQUIRED FOR USE ON CUB AND CUB LO-BOY TRACTORS BUT ARE SUPPLIED IN THE PARTS ACCESSORY THAT IS ALSO AVAILABLE FOR OTHER TRACTORS.

$

$

Currently unavailable

Cub Cadet IH-362120-R1

CLIP, HORN SWITCH TO CHARGE INDICATOR CABLE
(Superseded to 726-3008)

Note: THESE PARTS ARE NOT REQUIRED FOR USE ON CUB AND CUB LO-BOY TRACTORS BUT ARE SUPPLIED IN THE PARTS ACCESSORY THAT IS ALSO AVAILABLE FOR OTHER TRACTORS.

$4.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-102634

NUT, 5/16-18 HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-179812

SCREW, 5/16-18 X 1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

Cub Cadet IH-384555-R1

CLIP CABLE HORN SWITCH TO HORN

Note: THESE PARTS ARE NOT REQUIRED FOR USE ON CUB AND CUB LO-BOY TRACTORS BUT ARE SUPPLIED IN THE PARTS ACCESSORY THAT IS ALSO AVAILABLE FOR OTHER TRACTORS.

$

$

Currently unavailable
