Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 10001 - 17200) Cranking Motor - Delco Remy 6 Volt Parts Diagram

Cub Lo-Boy Tractor

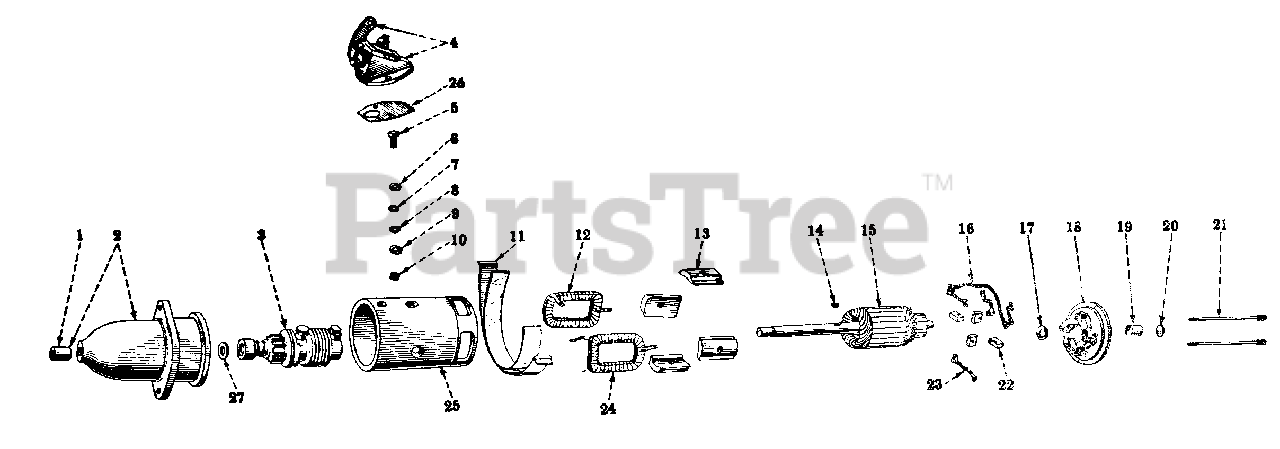

Cranking Motor - Delco Remy 6 Volt Parts Diagram

  • Title

Cub Cadet IH-1109603

MOTOR ASSY. CRANKING 6 VOLT UNIT A

Note: ORDER CRANKING MOTOR, 1109611.

$

$

Currently unavailable

Cub Cadet IH-1109611

MOTOR CRANKING ASSY. 6 VOLT UNIT B

$

$

Currently unavailable

1

Cub Cadet IH-1839345

BUSHING, DRIVE HOUSING

$

$

Not available

2

Cub Cadet IH-1910251

HOUSING W/BUSHING, 1839345, DRIVE

$

$

Currently unavailable

3

Cub Cadet IH-67033H

DRIVE ASSY. MOTOR

$

$

Not available

4

Cub Cadet IH-1922609

SWITCH ASSY. STARTING

$

$

Not available

Cub Cadet IH-1918322

LEVER SWITCH

$

$

Currently unavailable

Cub Cadet IH-312900

SCREW, 10-32 X 3/8 PHC SLT-RD-HD MACH

$

$

Currently unavailable

Cub Cadet IH-106497

WASHER, NO. 10 MED LOCK

$

$

Currently unavailable

5

Cub Cadet IH-1910299

STUD, TERMINAL

$

$

Currently unavailable

6

Cub Cadet IH-1884727

WASHER, TERMINAL STUD INSULATING

$

$

Currently unavailable

7

Cub Cadet IH-1881866

WASHER, TERMINAL STUD INSULATING

$

$

Currently unavailable

8

Cub Cadet IH-1881867

WASHER, TERMINAL STUD INSULATING

$

$

Currently unavailable

9

Cub Cadet IH-1905897

WASHER, TERMINAL STUD INSULATING

$

$

Currently unavailable

10

Cub Cadet IH-124824

NUT, TERMINAL STUD

$

$

Not available

11

Cub Cadet IH-1887889

BAND, COVER

$

$

Currently unavailable

Cub Cadet IH-120614

NUT 10-32 C-Z HEX. MACH SCREW
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

Cub Cadet IH-132926

SCREW, 10-32 X 1-1/4 C-Z SLT-RD-HD MACH

$

$

Currently unavailable

12

Cub Cadet IH-1910246

COIL, FIELD LH - UNIT A

$

$

Currently unavailable

12

Cub Cadet IH-1911472

COIL, FIELD LH - UNIT B

$

$

Currently unavailable

13

Cub Cadet IH-1881870

SHOE, POLE

$

$

Currently unavailable

Cub Cadet IH-453302

SCREW, POLE SHOE

$

$

Currently unavailable

14

Cub Cadet IH-124546

KEY, 5/32 X 5/8 WOODRUFF NO 6 ALY-STL

$

$

Not available

15

Cub Cadet IH-1910249

ARMATURE

$

$

Currently unavailable

16

Cub Cadet IH-1909251

LEAD, BRUSH TO FIELD COIL

$

$

Currently unavailable

Cub Cadet IH-132688

SCREW, 6-32 X 1/4 C-Z SLT-RD-HD MACH

$

$

Currently unavailable

Cub Cadet IH-106495

WASHER, NO. 6 MED LOCK

$

$

Currently unavailable

17

Cub Cadet IH-1928023

WASHER, COMMUTATOR END SPACE

$

$

Currently unavailable

18

Cub Cadet IH-1910253

FRAME ASSY, COMMUTATOR END

Note: COMPOSED OF THE FOLLOWING 7 ITEMS.

$

$

Currently unavailable

Cub Cadet IH-1839345

BUSHING

$

$

Not available

FRAME

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

Cub Cadet IH-112005

PIN

$

$

Currently unavailable

Cub Cadet IH-812015

PIN

$

$

Currently unavailable

Cub Cadet IH-812016

PIN

$

$

Currently unavailable

Cub Cadet IH-817313

PIN

$

$

Currently unavailable

Cub Cadet IH-817314

PIN

$

$

Currently unavailable

Cub Cadet IH-1865182

PLUG

$

$

Currently unavailable

19

Cub Cadet IH-1839345

BUSHING, COMMUTATOR END FRAME

$

$

Not available

20

Cub Cadet IH-1865182

PLUG, COMMUTATOR END FRAME

$

$

Currently unavailable

21

Cub Cadet IH-1910355

BOLT, THRU

$

$

Currently unavailable

Cub Cadet IH-120217

WASHER, NO. 10 C-Z REG LOCK
(Superseded to 736-0722)

$6.99

$

Usually ships in 3-6 days

0

22

Cub Cadet IH-1881838

BRUSH -

$

$

Currently unavailable

Cub Cadet IH-115903

SCREW, 6-32 X 1/2 BLUED SLT-RD-HD MACH

$

$

Currently unavailable

Cub Cadet IH-106495

WASHER, NO. 6 MED LOCK

$

$

Currently unavailable

23

Cub Cadet IH-1930694

LEAD, GROUND BRUSH

$

$

Currently unavailable

Cub Cadet IH-122159

SCREW, 8-32 X 1/4 C-Z SLT-RD-HD MACH

$

$

Currently unavailable

Cub Cadet IH-106496

WASHER, NO.8 MED LOCK

$

$

Not available

24

Cub Cadet IH-1910252

COIL, FIELD RH - UNIT A

$

$

Currently unavailable

24

Cub Cadet IH-1911471

COIL, FIELD RH - UNIT B

$

$

Currently unavailable

25

FRAME

Note: NOT SERVICED SEPARATELY-ORDER CRANKING MOTOR ASSY.

$

$

Not available

26

Cub Cadet IH-1912376

GASKET, STARTING SWITCH

$

$

Not available

27

Cub Cadet IH-1853917

WASHER, DRIVE END SPACE

$

$

Currently unavailable

Cub Cadet IH-1881835

SPRING, BRUSH HOLDER

$

$

Currently unavailable
