Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 10001 - 17200) Combination Rear Light and Tail Light - Sealed Beam - 6 Volt Parts Diagram

Cub Lo-Boy Tractor

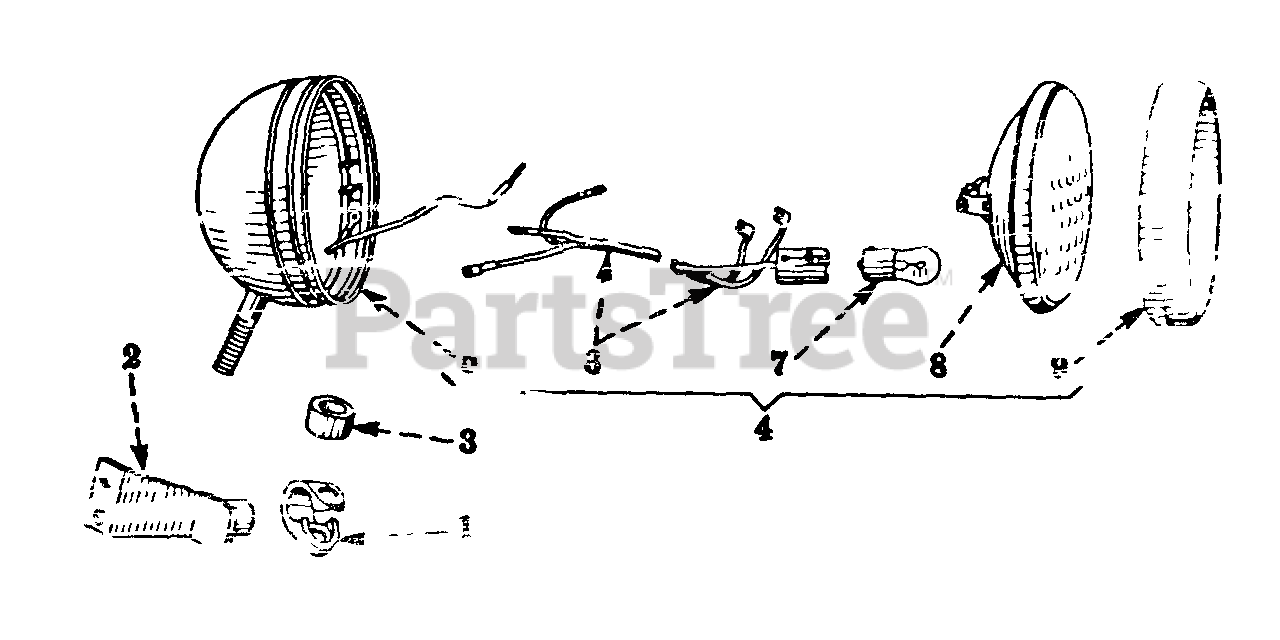

Combination Rear Light and Tail Light - Sealed Beam - 6 Volt Parts Diagram

  • Title

1

Cub Cadet IH-350920-R1

CLAMP, REAR LIGHT

$

$

Not available

2

Cub Cadet IH-352121-R21

BRACKET ASSY, REAR LIGHT

$

$

Currently unavailable

Cub Cadet IH-120376

NUT, 5/16-18 X 3/4 ZND HEX-HD CAP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-180077

SCREW, 5/16-18 X 3/4 ZND HEX-HD CAP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 ZND REG LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet IH-374213-R91

LIGHT ASSY, COMBINATION REAR AND TAIL - SEALED BEAM

Note: (ORDER LIGHT ASSY. IH-381184-R91 AND CABLE, IH-381185-R91.)

$

$

Currently unavailable

Cub Cadet IH-381184-R91

LIGHT ASSY, COMBINATION REAR AND TAIL - SEALED BEAM

$

$

Currently unavailable

Cub Cadet IH-381185-R91

CABLE ASSY, LIGHT

$

$

Currently unavailable

Cub Cadet IH-102637

NUT, 1/2-13 HEX
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-103323

WASHER, 1/2 MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

4

BODY, REAR LIGHT

Note: (NOT SERVICED SEPARATELY)

$

$

Not available

?5

WIRE W/SOCKET ASSY

Note: (NOT SERVICED SEPARATELY)

$

$

Not available

?6

Cub Cadet IH-454493

LAMP, NO. 209 - 6 VOLT

$

$

Currently unavailable

7

Cub Cadet IH-371458-R91

MOULDING, REAR LIGHT

Note: (USED ONLY WITH LIGHT, IH-374213-R91)

$

$

Currently unavailable

Cub Cadet IH-53526D

SCREW, MOULDING

$

$

Currently unavailable

Cub Cadet IH-375376-R1

GASKET, SEALED BEAM UNIT

Note: (USED ONLY IF UNIT IS LOOSE IN LIGHT BODY - AS REQUIRED)

$

$

Currently unavailable

8

UNKNOWN

$

$

Not available

9

UNKNOWN

$

$

Not available
