Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 00501 - 10000) Underslung Exhaust System Parts Diagram

Cub Lo-Boy Tractor

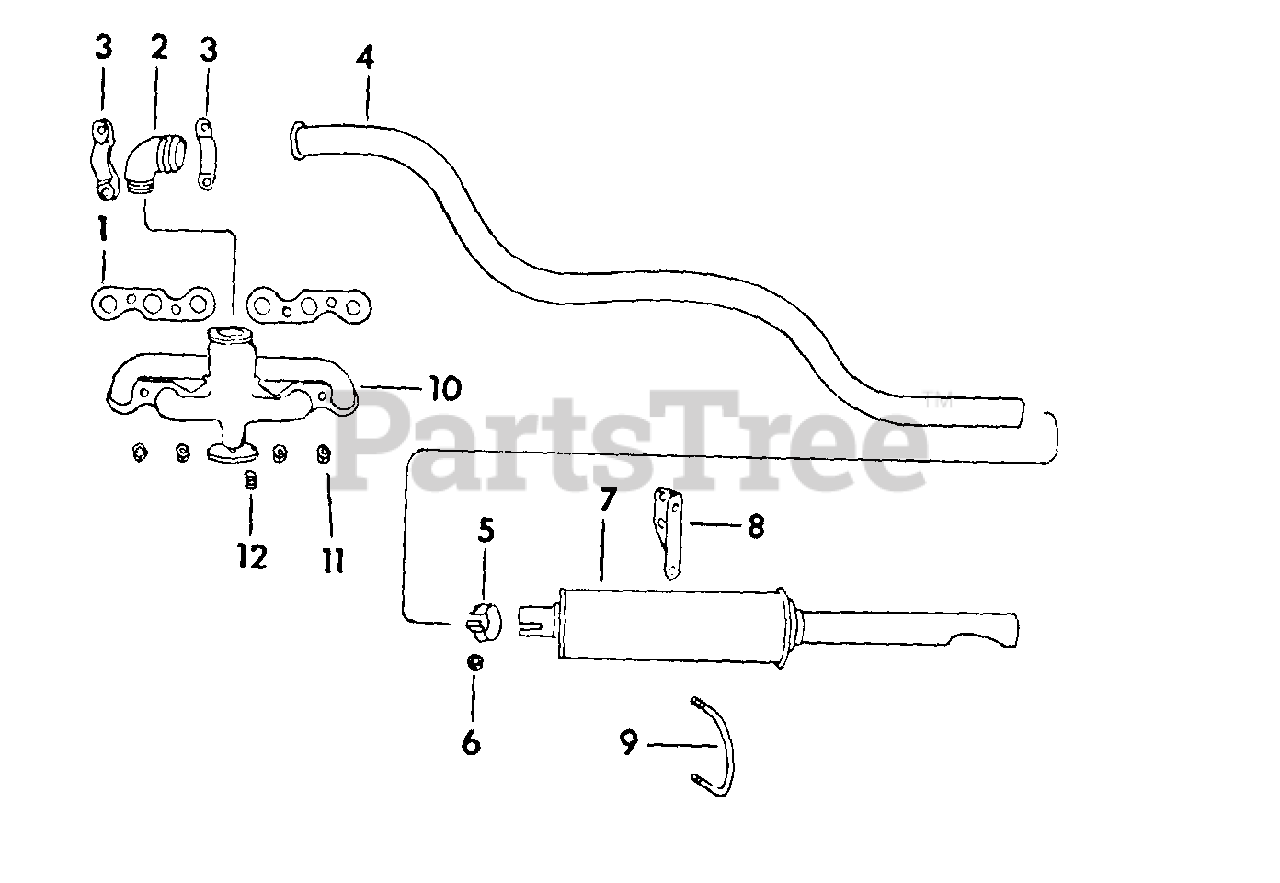

Underslung Exhaust System Parts Diagram

  • Title

1

Cub Cadet IH-251233-R1

GASKET, EXHAUST AND INTAKE MANIFOLD

$21.99

$

Usually ships in 3-6 days

0

2

Cub Cadet IH-362359-R1

ELBOW, EXHAUST PIPE

$

$

Currently unavailable

Cub Cadet IH-21116-R1

REDUCER, 1-1/4 TO 1 IN. PIPE

$

$

Currently unavailable

3

Cub Cadet IH-362361-R1

CLAMP, EXHAUST MANIFOLD

$

$

Currently unavailable

Cub Cadet IH-103025

NUT, 5/16-24 HEX

$

$

Currently unavailable

Cub Cadet IH-181345

SCREW, 5/16-24 X 1-3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

4

Cub Cadet IH-362360-R1

PIPE, EXHAUST

Note: CUB TRACTORS W/SERIAL NO 248124 AND BELOW

$

$

Currently unavailable

4

Cub Cadet IH-107139-C1

PIPE, EXHAUST

Note: CUB TRACTORS W/SERIAL NO 248125 AND ABOVE

$

$

Currently unavailable

5

Cub Cadet IH-351437-R1

CLAMP, EXHAUST MUFFLER

$

$

Currently unavailable

Cub Cadet IH-181374

SCREW, 3/8-24 X 1-1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

6

Cub Cadet IH-92082H

NUT, EXHAUST MUFFLER CLAMP

$

$

Currently unavailable

7

Cub Cadet IH-363116-R91

MUFFLER, EXHAUST

$

$

Currently unavailable

8

Cub Cadet IH-362362-R1

BRACKET. MUFFLER SUPPORT

$

$

Currently unavailable

9

Cub Cadet IH-362363-R1

U-BOLT, MUFFLER

$

$

Currently unavailable

Cub Cadet IH-103024

NUT, 1/4-28 HEX

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER, 1/4 MED LOCK

$

$

Currently unavailable

10

Cub Cadet IH-251232-R1

MANIFOLD, EXHAUST AND INTAKE

Note: ENGINE SERIAL NO 312389 & BELOW; ORDER MANIFOLD, IH-405023-R2 AND AND REDUCER IH-21116-R1

$

$

Currently unavailable

10

Cub Cadet IH-405023-R2

MANIFOLD, EXHAUST AND INTAKE

Note: REPLACES IH-251232-R1; ENGINE SERIAL NO 312390 & ABOVE

$

$

Currently unavailable

Cub Cadet IH-444571

PLUG 1/8-27 AUTO SQ-HD PIPE

$

$

Currently unavailable

11

Cub Cadet IH-251176-R1

NUT, EXHAUST AND INTAKE MANIFOLD STUD

$

$

Not available

12

Cub Cadet IH-251236-R1

STUD, CARBURETOR

Note: ORDER SCREW, IH-179796

$

$

Currently unavailable

Cub Cadet IH-179796

SCREW, 1/4-20 X 7/8 HEX-HD CAP

$

$

Currently unavailable
