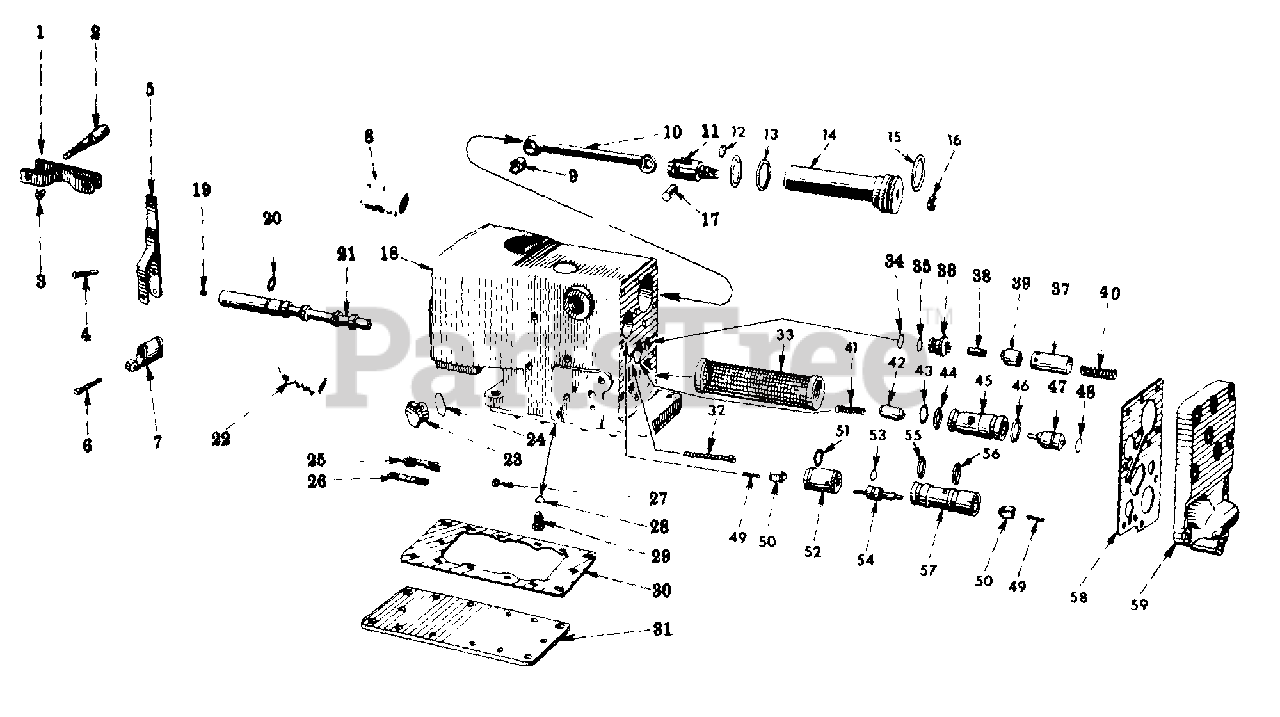

Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 00501 - 10000) Touch Control System Parts Diagram

Cub Lo-Boy Tractor

Touch Control System Parts Diagram

  • Title

Cub Cadet IH-360712-R92

FARMALL TOUCH-CONTROL

Note: WILL WORK FOR IH-352000-R92 & IH-354396-R94; CONSISTS OF ALL THE PARTS LISTED BELOW EXCEPT THOSE FOR 105 MOWER.

$

$

Currently unavailable

1

Cub Cadet IH-352C18-R12

LINK ASSY, CONTROL VALVE OPERATING

$

$

Currently unavailable

2

Cub Cadet IH-352010-R1

PIN, CONNECTING ROD

$

$

Currently unavailable

Cub Cadet IH-103028

NUT, 1/2-20 HEX.

$

$

Currently unavailable

Cub Cadet IH-108828

PIN, 1/16 X 7/8 COT

$

$

Currently unavailable

Cub Cadet IH-103323

WASHER, 1/2 MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

3

Cub Cadet IH-350680-R2

PIN, CONTROL VALVE OPERATING LINK

$

$

Currently unavailable

Cub Cadet IH-103373

PIN, 3/32 X 3/4 COT.
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

4

Cub Cadet IH-354392-R1

PIN, CONTROL VALVE

$

$

Currently unavailable

Cub Cadet IH-137130

PIN, 1/16 X 7/16 COT.

$

$

Not available

5

Cub Cadet IH-354391-R91

LEVER ASSY, CONTROL VALVE OPERATING

$

$

Currently unavailable

6

Cub Cadet IH-354394-R1

PIN, CONTROL VALVE OPERATING LEVER

$

$

Currently unavailable

Cub Cadet IH-137130

PIN, 1/16 X 7/16 COT

$

$

Not available

7

Cub Cadet IH-354395-R1

YOKE, CONTROL ROD ADJUSTABLE

$

$

Currently unavailable

8

Cub Cadet IH-364833-R1

BOOT, PISTON SLEEVE -RUBBER-

Note: WILL WORK FOR LEATHER BOOT, IH-35205-R3

$

$

Not available

WIRE, 18 GA X 40 IN. LONG LOCKING

Note: NOT USED ON RUBBER BOOT- -PURCHASE LOCALLY

$

$

Not available

WIRE, 18 GA X 4 IN. LONG LOCKING

Note: NOT USED ON RUBBER BOOT- -PURCHASE LOCALLY

$

$

Not available

9

Cub Cadet IH-352007-R1

BUSHING, CONNECTING ROD

$

$

Currently unavailable

10

Cub Cadet IH-352006-R11

ROD W/BUSHING, IH-352007-R1, CONNECTING

$

$

Currently unavailable

11

Cub Cadet IH-355729-R1

YOKE, CONNECTING ROD

$

$

Currently unavailable

12

Cub Cadet IH-355966-R1

O-RING, 7/16 X 5/8 X 3/32

Note: CONNECTING ROD YOKE SEAL

$

$

Not available

13

Cub Cadet IH-352004-R1

RING, PISTON SLEEVE SEAL

$

$

Not available

14

Cub Cadet IH-358207-R91

PISTON ASSY

$

$

Not available

15

Cub Cadet IH-461173-R1

RING, PISTON SLEEVE SEAL

$

$

Not available

16

Cub Cadet IH-9411648

NUT, 1/2-20 PHC GRIPO LOCK TYPE 8

Note: CONNECTING ROD YOKE

$

$

Not available

17

Cub Cadet IH-352009-R1

PIN, CONNECTING ROD YOKE

$

$

Currently unavailable

18

Cub Cadet IH-354381-R96

BLOCK ASSY, CYLINDER

Note: WILL WORK FOR IH-351985-R92, IH-351981-R1, IH354383-R1 THRU R4 AND IH-360719-R1 -COMPOSED OF REF NOS 1 THROUGH 59 AND ATTACHING HARDWARE

$

$

Currently unavailable

18

Cub Cadet IH-381226-R91

BLOCK ASSY, CYLINDER

Note: TRACTORS WITH 105 MOWER- -COMPOSED OF REF NOS 1 THROUGH 59 AND ATTACHING HARDWARE

$

$

Currently unavailable

18

Cub Cadet IH-360719-R11

BLOCK ASSY, CYLINDER

Note: REPLACES IH-381227-R91- -COMPOSED OF THE FOLLOWING 10 ITEMS.

$

$

Currently unavailable

Cub Cadet IH-360719-R1

BLOCK

$

$

Currently unavailable

Cub Cadet IH-3405H

GASKET

$

$

Currently unavailable

Cub Cadet IH-355372-R93

ORIFICE ASSY

$

$

Currently unavailable

Cub Cadet IH-172574

PLUG

$

$

Currently unavailable

Cub Cadet IH-444687

PLUG

$

$

Currently unavailable

Cub Cadet IH-445096

PLUG

$

$

Currently unavailable

Cub Cadet IH-350672-R1

RING

$

$

Not available

Cub Cadet IH-354269-R1

SCREEN

$

$

Not available

Cub Cadet IH-102570

SCREW

$

$

Not available

Cub Cadet IH-354264-R91

VALVE

$

$

Currently unavailable

Cub Cadet IH-444687

PLUG, 1/8-27 AUTO. SQ-HD PIPE

Note: IN CYLINDER HEAD

$

$

Currently unavailable

Cub Cadet IH-172574

PLUG, 1-1/2 DIAMETER EXPANSION

Note: IN CYLINDER BLOCK

$

$

Currently unavailable

Cub Cadet IH-179885

SCREW, 1/2-13 X 1-1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103323

WASHER, 1/2 MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

19

Cub Cadet IH-102570

SCREW, 1/4-20 X 3/8 HEX-SOC-HD CUP-PT SET

Note: IN CONTROL VALVE

$

$

Not available

20

Cub Cadet IH-350672-R1

RING, CONTROL VALVE SEAL

$

$

Not available

21

VALVE, CONTROL

Note: NOT SERVICED SEPARATELY - ORDER CYLINDER BLOCK ASSY

$

$

Not available

Cub Cadet IH-444687

PLUG, 1/8-27 AUTO. SQ-HD PIPE

Note: CONTROL VALVE

$

$

Currently unavailable

22

Cub Cadet IH-364832-R1

BOOT, CONTROL VALVE -RUBBER-

Note: WILL WORK FOR LEATHER BOOT, IH-351753-R3

$

$

Not available

WIRE, 18 GA X 6-1/2 IN. LONG LOCKING

Note: NOT USED ON RUBBER BOOT- -PURCHASE LOCALLY

$

$

Not available

WIRE, 18 GA X 4 IN. LONG LOCKING

Note: NOT USED ON RUBBER BOOT- -PURCHASE LOCALLY

$

$

Not available

23

Cub Cadet IH-445096

PLUG, 7/8-18 HEX-HD OUTSIDE FILLER CAP DRAIN

Note: IN CYLINDER BLOCK

$

$

Currently unavailable

24

Cub Cadet IH-3405H

GASKET, FILLER PLUG

$

$

Currently unavailable

25

Cub Cadet IH-352027-R2

STOP, CONTROL VALVE OPERATING LEVER

$

$

Currently unavailable

Cub Cadet IH-179814

SCREW, 5/16-18 X 5/8 HEX-HD CAP

$

$

Currently unavailable

26

Cub Cadet IH-351697-R1

LOCK, CONTROL VALVE OPERATING LEVER STOP

$

$

Currently unavailable

27

Cub Cadet IH-444687

PLUG, 1/8-27 AUTO. SQ-HD PIPE

$

$

Currently unavailable

28

Cub Cadet IH-354269-R1

SCREEN, RELIEF VALVE

$

$

Not available

29

Cub Cadet IH-354264-R91

VALVE ASSY, RELIEF

$

$

Currently unavailable

30

Cub Cadet IH-351983-R1

GASKET, CYLINDER BLOCK COVER

$

$

Not available

31

Cub Cadet IH-351982-R1

COVER, CYLINDER BLOCK

$

$

Currently unavailable

Cub Cadet IH-179816

SCREW, 5/16-18 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

32

Cub Cadet IH-355372-R93

ORIFICE ASSY -REPLACES IH-351156-R1

$

$

Currently unavailable

33

Cub Cadet IH-351984-R92

STRAINER ASSY, CYLINDER BLOCK OIL

$

$

Not available

34

Cub Cadet IH-360476-R1

SPRING, SAFETY VALVE BUSHING TENSION

$

$

Currently unavailable

35

Cub Cadet IH-355966-R1

O-RING, 7/16 X 5/8 X 3/32

Note: SAFETY VALVE INNER BUSHING

$

$

Not available

36

Cub Cadet IH-360475-R1

BUSHING, SAFETY VALVE INNER

$

$

Not available

37

Cub Cadet IH-360474-R1

BUSHING, SAFETY VALVE OUTER

$

$

Not available

38

Cub Cadet IH-361341-R3

PISTON, SAFETY VALVE

$

$

Currently unavailable

39

Cub Cadet IH-361342-R1

SLEEVE, SAFETY VALVE

$

$

Not available

40

Cub Cadet IH-361340-R2

SPRING, SAFETY VALVE

$

$

Not available

41

Cub Cadet IH-360728-R1

SPRING, PRESSURE REGULATOR CHECK VALVE

$

$

Not available

42

Cub Cadet IH-360726-R1

VALVE, PRESSURE REGULATOR CHECK

$

$

Not available

43

Cub Cadet IH-360727-R1

SPRING, PRESSURE REGULATOR VALVE TENSION

$

$

Currently unavailable

44

Cub Cadet IH-350684-R1

O-RING, 3/4 X 1 X 1/8

Note: PRESSURE REGULATOR VALVE BUSHING FRONT

$

$

Currently unavailable

45

Cub Cadet IH-360725-R1

BUSHING, PRESSURE REGULATOR VALVE

$

$

Not available

46

Cub Cadet IH-253070-R1

O-RING, 7/8 X 1-1/8 X 1/8

Note: PRESSURE REGULATOR VALVE BUSHING REAR

$

$

Not available

47

Cub Cadet IH-360724-R11

PISTON ASSY, PRESSURE REGULATOR VALVE

$

$

Currently unavailable

48

Cub Cadet IH-352221-R1

O-RING, 9/16 X 3/4 X 3/32

Note: PRESSURE REGULATOR VALVE PISTON

$

$

Not available

49

Cub Cadet IH-350668-R1

SPRING, CHECK VALVE

$

$

Not available

50

Cub Cadet IH-354057-R2

VALVE, CHECK

$

$

Not available

51

Cub Cadet IH-350667-R1

O-RING, 11/16 X 7/8 X 3/32

Note: CHECK VALVE BUSHING SEAL INNER

$

$

Not available

52

Cub Cadet IH-360721-R1

BUSHING, CHECK VALVE INNER

$

$

Currently unavailable

53

Cub Cadet IH-252738-R1

O-RING, 3/8 X 9/16 X 3/32

Note: CHECK VALVE ACTUATOR- -WILL WORK FOR IH-360717-R1

$

$

Not available

54

Cub Cadet IH-360723-R1

ACTUATOR, CHECK VALVE

$

$

Currently unavailable

54

Cub Cadet IH-381207-R1

ACTUATOR, CHECK VALVE

Note: RESTRICTED -TRACTORS WITH 105 MOWER

$

$

Currently unavailable

55

Cub Cadet IH-350684-R1

O-RING, 3/4 X 1 X 1/8

Note: CHECK VALVE BUSHING OUTER SMALL

$

$

Currently unavailable

56

Cub Cadet IH-254691-R1

O-RING, 13/16 X 1-1/16 X 1/8

Note: CHECK VALVE BUSHING OUTER LARGE

$

$

Not available

57

Cub Cadet IH-722R1

BUSHING, CHECK VALVE OUTER

$

$

Currently unavailable

58

Cub Cadet IH-351989-R6

GASKET, CYLINDER HEAD

$

$

Not available

59

Cub Cadet IH-354399-R21

HEAD W/PLUGS, IH-444654 AND IH-444660 CYLINDER

$

$

Currently unavailable

Cub Cadet IH-444654

PLUG, 1/4-18 AUTO SQ-SOC PIPE

$

$

Currently unavailable

Cub Cadet IH-444660

PLUG, 3/8-18 AUTO SQ-SOC FIPE

$

$

Currently unavailable

Cub Cadet IH-23164-R1

SCREW, 3/8-16 X 1-1/4 TYPE 8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-354921-R1

SCREW, 3/8-16 X 1-1/2 TYPE 8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-354922-R1

SCREW, 3/8-16 X 2 TYPE 8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-372703-R5

FLUID, HY-TRAN -QUART CAN-
(Superseded to 737-3025)

Note: AS REQUIRED

$

$

Not available

Cub Cadet IH-372704-R5

FLUID, HY-TRAN -GALLON CAN-

Note: AS REQUIRED

$

$

Currently unavailable

Cub Cadet IH-372705-R5

FLUID, HY-TRAN -FIVE GALLON CAN-
(Superseded to 737-3035)

Note: AS REQUIRED

$

$

Not available

Cub Cadet IH-407024-R5

FLUID, HY-TRAN -FIFTEEN GALLON CAN-

Note: AS REQUIRED

$

$

Currently unavailable

Cub Cadet IH-360713-R91

PACKAGE, CYLINDER BLOCK GASKET AND SEAL RING

Note: CONSISTS OF THE FOLLOWING 14 ITEMS.

$

$

Not available

Cub Cadet IH-351983-R1

GASKET

$

$

Not available

Cub Cadet IH-351989-R6

GASKET

$

$

Not available

Cub Cadet IH-352034-R1

GASKET

$

$

Not available

Cub Cadet IH-253070-R1

O-RING

$

$

Not available

Cub Cadet IH-252738-R1

O-RING

$

$

Not available

Cub Cadet IH-254691-R1

O-RING

$

$

Not available

Cub Cadet IH-350667-R1

O-RING

$

$

Not available

Cub Cadet IH-350684-R1

O-RING

$

$

Currently unavailable

Cub Cadet IH-352221-R1

O-RING

$

$

Not available

Cub Cadet IH-355966-R1

O-RING

$

$

Not available

Cub Cadet IH-350672-R1

RING

$

$

Not available

Cub Cadet IH-352004-R1

RING

$

$

Not available

Cub Cadet IH-461173-R1

RING

$

$

Not available

Cub Cadet IH-381228-R91

PACKAGE, TOUCH-CONTROL CONVERSION

Note: FOR TRACTORS WITH 105 MOWER- -CONSISTS OF THE FOLLOWING 2 ITEMS.

$

$

Currently unavailable

Cub Cadet IH-351989-R6

GASKET

$

$

Not available

Cub Cadet IH-381207-R1

VALVE

$

$

Currently unavailable
