Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 00501 - 10000) Control Lever & Supports - Adjustable Friction Load Control Lever Parts Diagram

Cub Lo-Boy Tractor

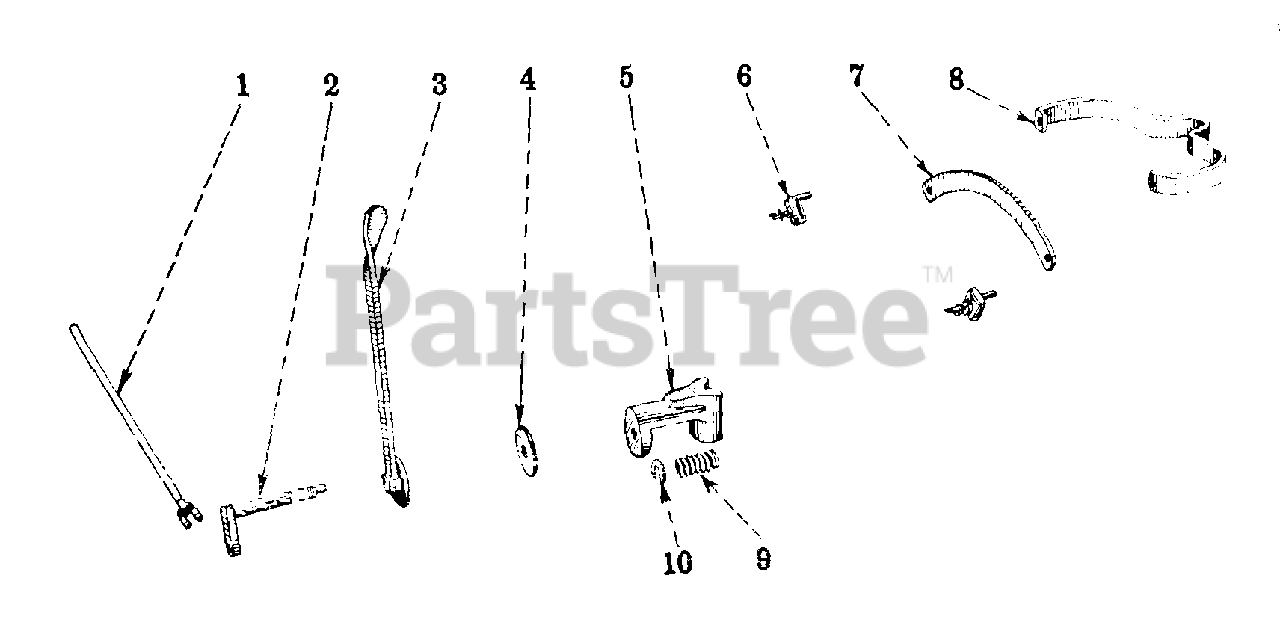

Control Lever & Supports - Adjustable Friction Load Control Lever Parts Diagram

  • Title
1

Cub Cadet IH-354959-R11

ROD ASSY, CONTROL

$

$

Currently unavailable

Cub Cadet IH-103025

NUT, 5/16-24 HEX.

$

$

Currently unavailable

Cub Cadet IH-103494

PIN, 1/4 ROD END

$

$

Currently unavailable

Cub Cadet IH-137130

PIN, 1/16 X 7/16 COT

$

$

Not available

2

Cub Cadet IH-354957-R11

SHAFT AND ARM ASSY, HAND CONTROL LEVER

$

$

Currently unavailable

Cub Cadet IH-Q1510

WASHER, 15/32 X 13/16 X 14 GA

$

$

Currently unavailable

Cub Cadet IH-272121

NUT, 7/16-20 HEX. JAM

$

$

Currently unavailable

3

Cub Cadet IH-350719-R21

LEVER ASSY, HAND CONTROL

$

$

Currently unavailable

Cub Cadet IH-17157-R1

PIN, 5/32 X 3/4 ESNA ROLL

$

$

Currently unavailable

4

Cub Cadet 63090D

DISC, HAND CONTROL FRICTION

$

$

Currently unavailable

5

Cub Cadet IH-354960-R1

BRACKET, HAND CONTROL

$

$

Currently unavailable

Cub Cadet IH-179847

SCREW, 3/8-16 X 2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

6

Cub Cadet IH-350717-R91

INDICATOR ASSY, HYD LIFT STOP

Note: WILL WORK FOR IH-350713-R91

$

$

Currently unavailable

7

Cub Cadet IH-350712-R1

QUADRANT, HAND CONTROL

$

$

Currently unavailable

Cub Cadet IH-103024

NUT, 1/4-28 HEX.

$

$

Currently unavailable

Cub Cadet IH-181311

SCREW, 1/4-28 X 5/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER, 1/4 MED LOCK

$

$

Currently unavailable

8

Cub Cadet IH-354958-R1

SUPPORT, HAND CONTROL QUADRANT

$

$

Currently unavailable

9

Cub Cadet IH-354746-R1

SPRING, HAND CONTROL FRICTION

$

$

Currently unavailable

10

Cub Cadet IH-351128-R1

RETAINER, HAND CONTROL FRICTION SPRING

$

$

Currently unavailable
