Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 00501 - 10000) Clutch - Rockford Parts Diagram

Cub Lo-Boy Tractor

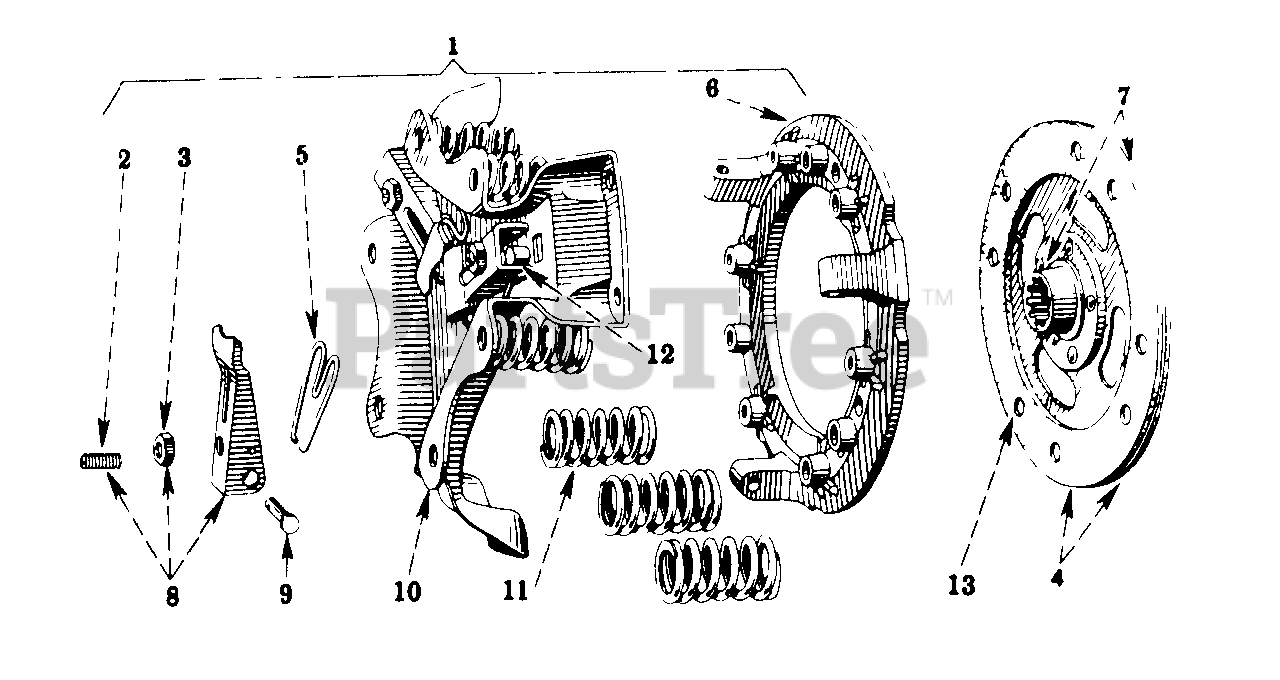

Clutch - Rockford Parts Diagram

  • Title

1

Cub Cadet IH-351760-R91

PLATE ASSY, CLUTCH PRESSURE
(Superseded to IH-351760-R92)

Note: REPLACES 350939-R1; COMPOSED OF 3 LEVER IH-351766-R91, 3 PIN IH-103373, 3 PIN IH-351770-R1, 1 PLATE IH-351761-R91, 1 PLATE IH-351765-R1, 3 SPRING IH-351771-R1 & 6 SPRING IH-351772-R1.

$

$

Not available

Cub Cadet IH-359440-R1

SCREW, CLUTCH TO FLYWHEEL

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

2

Cub Cadet IH-351768-R1

SCREW, RELEASE LEVER ADJUSTING

$

$

Currently unavailable

3

Cub Cadet IH-351769-R1

NUT, ADJUSTING

$

$

Currently unavailable

4

Cub Cadet IH-351469-R92

FACING SET, CLUTCH

Note: CONSISTS OF TWO FACINGS AND TEN RIVETS, IH-103384H

$

$

Not available

5

Cub Cadet IH-351771-R1

SPRING, RELEASE LEVER

$

$

Not available

6

Cub Cadet IH-351765-R1

PLATE, PRESSURE

$

$

Not available

7

Cub Cadet IH-351773-R91

DISC ASSY, CLUTCH DRIVEN

Note: REPLACES 350940-R91

$

$

Not available

8

Cub Cadet IH-351766-R91

LEVER, RELEASE

Note: W/SCREW, IH-351768-R1 AND NUT, IH-351769-R1

$

$

Not available

9

Cub Cadet IH-351770-R1

PIN, RELEASE LEVER

$

$

Not available

Cub Cadet IH-103373

PIN, 3/32 X 3/4 COT
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

10

Cub Cadet IH-351761-R91

PLATE, BACK

Note: W/THREE SEATS, IH-351763-R1

$

$

Currently unavailable

11

Cub Cadet IH-351772-R1

SPRING, PRESSURE

$

$

Not available

12

Cub Cadet IH-351763-R1

SEAT, ADJUSTING SCREW

$

$

Currently unavailable

13

Cub Cadet IH-103384H

RIVET, TUBULAR BRS

$

$

Currently unavailable
