Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 00501 - 10000) Clutch Housing, Controls And Connections Parts Diagram

Cub Lo-Boy Tractor

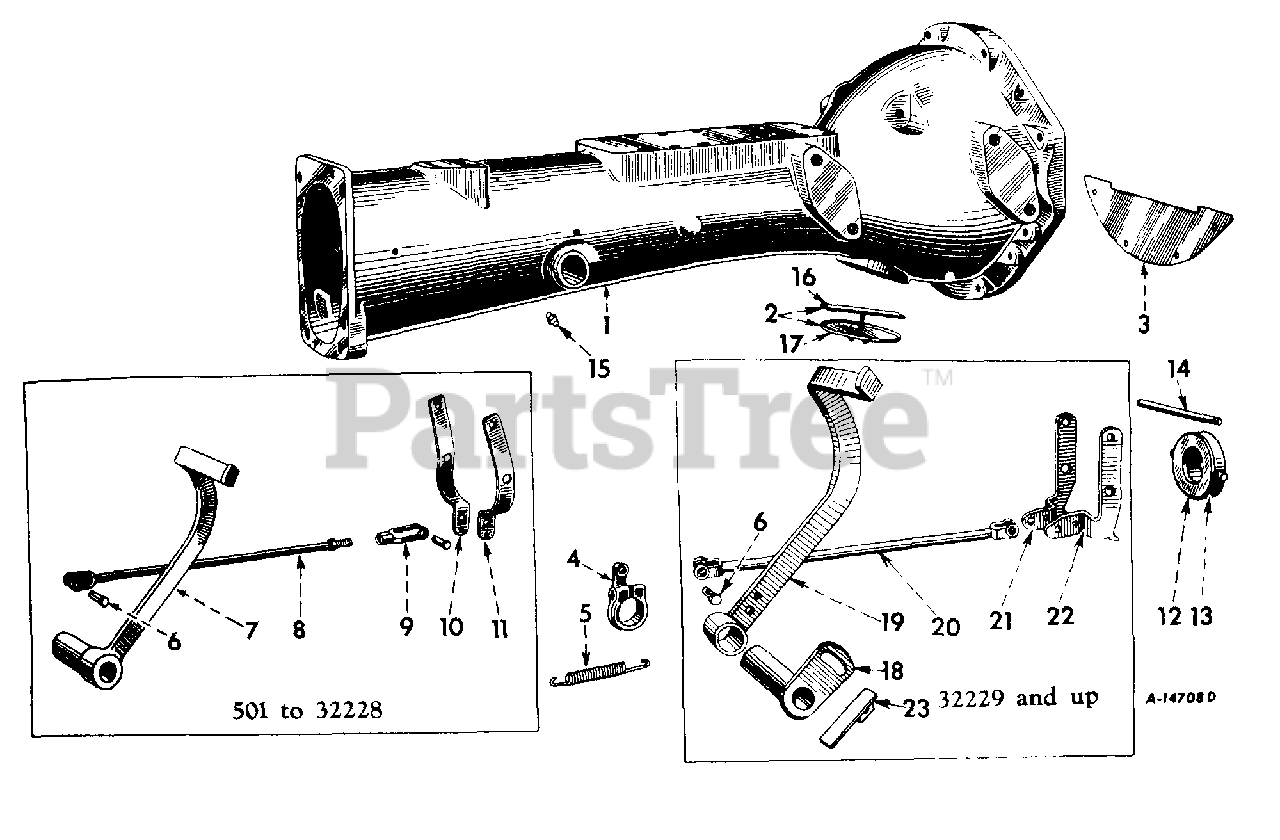

Clutch Housing, Controls And Connections Parts Diagram

  • Title

1

Cub Cadet IH-351686-R3

HOUSING, CLUTCH

$

$

Currently unavailable

Cub Cadet IH-271500

NUT, 7/16-14 HEX

$

$

Currently unavailable

Cub Cadet IH-179866

SCREW, 7/16-14 X 2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-179869

SCREW, 7/16-14 X 2-3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-179884

SCREW, 1/2-13 X 1-3/8 HEX-HD CAP

Note: NOT USED ON FARMALL CUB TRACTORS EQUIPPED WITH FAST-HITCH

$

$

Currently unavailable

Cub Cadet IH-179888

SCREW, 1/2-13 X 1-7/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103322

WASHER, 7/16 MED LOCK

$

$

Currently unavailable

Cub Cadet IH-103323

WASHER, 1/2 MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

2

Cub Cadet IH-351486-R11

COVER

Note: W/NUT IH-103127, CLUTCH HOUSING HAND HOLE; ORDER BAR, IH-57578 DX, COVER IH-351486-R1, & NUT IH-103127 - CUB TRACTORS W/SERIAL NO. 13753 & BELOW

$

$

Not available

3

Cub Cadet IH-351485-R2

COVER, CLUTCH HOUSING

$

$

Currently unavailable

Cub Cadet IH-109084

NUT, 1/4-20 HEX

$

$

Currently unavailable

Cub Cadet IH-179800

SCREW, 1/4-20 X 1-3/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER, 1/4 MED LOCK

$

$

Currently unavailable

4

Cub Cadet IH-350953-R1

LEVER, CLUTCH PEDAL

$

$

Currently unavailable

Cub Cadet IH-179844

SCREW, 3/8-16 X 1-5/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

5

Cub Cadet IH-350951-R1

SPRING CLUTCH PEDAL RETURN

$

$

Not available

6

Cub Cadet IH-103496

PIN, 3/8 X 1-3/32
(Superseded to 911-3010)

Note: ROD END - CLUTCH ROD OPERATING YOKE

$

$

Not available

Cub Cadet IH-103373

PIN, 3/32 X 3/4 COT
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

7

Cub Cadet IH-350949-R11

PEDAL ASSY, CLUTCH

Note: CUB TRACTORS W/SERIAL NO. 32228 AND BELOW

$

$

Currently unavailable

8

Cub Cadet IH-350955-R11

ROD, CLUTCH OPERATING

Note: CUB TRACTORS W/SERIAL NO. 32228 AND BELOW

$

$

Currently unavailable

Cub Cadet IH-103026

NUT, 3/8-24 HEX
(Superseded to 912-0121)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet IH-104038

YOKE, ADJUSTABLE CLUTCH OPERATING ROD
(Superseded to 719-3013)

Note: CUB TRACTORS W/SERIAL NO. 32228 AND BELOW

$28.99

$

Usually ships in 3-6 days

0

10

Cub Cadet IH-350923-R1

YOKE, CLUTCH RELEASE LEFT SIDE

Note: CUB TRACTORS W/SERIAL NO.32228 AND BELOW

$

$

Currently unavailable

Cub Cadet IH-103024

NUT, 1/4-28 HEX

$

$

Currently unavailable

Cub Cadet IH-181312

SCREW, 1/4-28 X 11/16 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER, 1/4 MED LOCK

$

$

Currently unavailable

11

Cub Cadet IH-350924-R1

YOKE, CLUTCH RELEASE RIGHT SIDE

Note: CUB TRACTORS W/SERIAL NO. 32228 AND BELOW

$

$

Currently unavailable

12

Cub Cadet IH-109454

FITTING, 1/4-28 NS TAPER STR LUB

$

$

Not available

13

Cub Cadet IH-350921-R11

BEARING AND RETAINER, CLUTCH RELEASE

Note: W/FITTING IH-109454

$

$

Not available

14

Cub Cadet IH-350948-R1

PIN, CLUTCH RELEASE YOKE PIVOT

$

$

Not available

Cub Cadet IH-103373

PIN, 3/32 X 3/4 COT
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

15

IH-66584D

FITTING, 3/16 STR DRIVE TYPE LUB

Note: CUB TRACTORS W/SERIAL NO 200153 AND ABOVE, CUB LO-BOY TRACTORS W/SERIAL NO 5630 & ABOVE

$

$

Not available

16

Cub Cadet IH-57578DX

BAR ASSY, CLUTCH HOUSING HAND HOLE COVER

Note: CUB TRACTORS W/SERIAL NO. 13754 & ABOVE, ALL CUB LO-BOY TRACTORS

$

$

Currently unavailable

Cub Cadet IH-103127

NUT, 1/4-20 TYPE A WING

Note: OPTIONAL WITH IH-376137-R1

$

$

Not available

Cub Cadet IH-376137-R1

NUT, 1/4-20 WING
(Superseded to KH-25-100-15-S)

Note: OPTIONAL WITH IH-103127

$

$

Not available

17

Cub Cadet IH-351486-R1

COVER, CLUTCH HOUSING HAND HOLE

Note: CUB TRACTORS W/SERIAL NO. 13754 & ABOVE, ALL CUB LO-BOY TRACTORS

$

$

Not available

18

Cub Cadet IH-353236-R11

PLATE ASSY, CLUTCH ADJUSTING

Note: CUB TRACTORS W/SERIAL NO. 32229 & ABOVE, ALL CUB LO-BOY TRACTORS

$

$

Currently unavailable

Cub Cadet IH-181395

SCREW, 7/16-20 X 1 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103322

WASHER, 7/16 MED LOCK

$

$

Currently unavailable

Cub Cadet IH-615062-R1

WASHER, 15/32 X 7/8 X 11 GA

$

$

Currently unavailable

19

Cub Cadet IH-353234-R11

PEDAL ASSY, CLUTCH

Note: CUB TRACTORS W/SERIAL NO. 32229 & ABOVE, ALL CUB LO-BOY TRACTORS

$

$

Currently unavailable

20

Cub Cadet IH-353238-R11

ROD ASSY, CLUTCH OPERATING

Note: CUB TRACTORS W/SERIAL NO. 32229 & ABOVE, ALL CUB LO-BOY TRACTORS

$

$

Currently unavailable

21

Cub Cadet IH-353239-R2

YOKE, CLUTCH RELEASE LEFT SIDE

Note: CUB TRACTORS W/SERIAL NO. 32229 & ABOVE, ALL CUB LO-BOY TRACTORS

$

$

Not available

Cub Cadet IH-103024

NUT, 1/4-28 HEX

$

$

Currently unavailable

Cub Cadet IH-181313

SCREW, 1/4-28 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103319

WASHER, 1/4 MED LOCK

$

$

Currently unavailable

22

Cub Cadet IH-353240-R2

YOKE, CLUTCH RELEASE RIGHT SIDE

Note: CUB TRACTORS W/SERIAL NO. 32229 & ABOVE, ALL CUB LO-BOY TRACTORS

$

$

Currently unavailable

23

Cub Cadet IH-547141-R1

SPRING, ACTUATING

Note: TRACTORS WITH NEUTRAL STARTING SWITCH

$

$

Currently unavailable
