Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 00501 - 10000) Battery Box Parts Diagram

Cub Lo-Boy Tractor

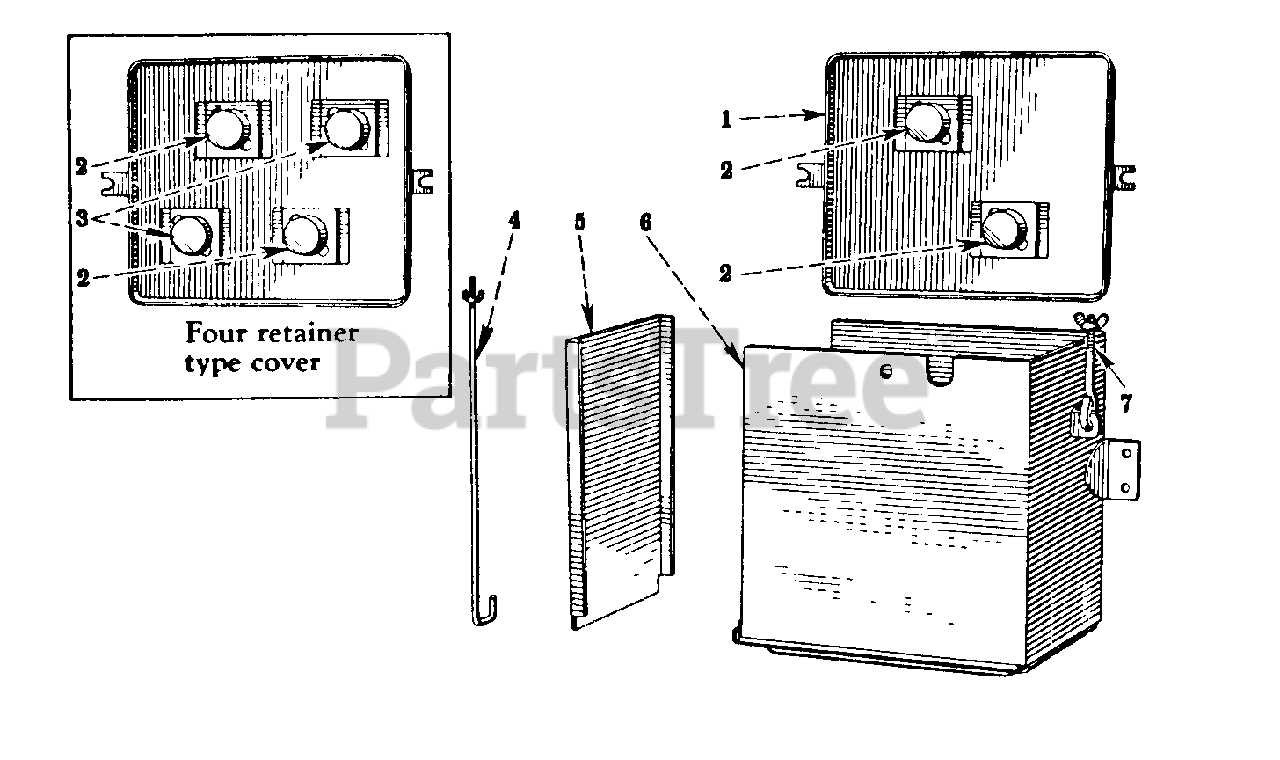

Battery Box Parts Diagram

  • Title

1

Cub Cadet IH-351336-R12

COVER ASSY, BATTERY BOX

Note: (CUB TRACTORS W/SERIAL NO. 224400 AND BELOW, CUB LO-BOY TRACTORS W/SERIAL NO. 18700 & BELOW)

$

$

Currently unavailable

Cub Cadet IH-387259-R91

COVER ASSY, BATTERY BOX

Note: (CUB TRACTORS W/SERIAL NO. 224401 AND ABOVE, CUB LO-BOY TRACTORS W/SERIAL NO. 18701 & ABOVE)

$

$

Currently unavailable

2

Cub Cadet IH-65054-DA

RUBBER, BATTERY HOLD-DOWN - LONG

Note: (CUB TRACTORS W/SERIAL NO 224400 AND BELOW, CUB LO-BOY TRACTORS W/SERIAL NO. 18700 & BELOW)

$

$

Currently unavailable

3

Cub Cadet IH-51690D

RUBBER, BATTERY HOLD-DOWN - SHORT

Note: (USED ONLY WITH FOUR RETAINER TYPE COVER

$

$

Currently unavailable

4

Cub Cadet IH-351339-R1

SCREW, BATTERY BOX - FRONT

$

$

Not available

Cub Cadet IH-103127

NUT, 1/4-20 TYPE A WING

$

$

Not available

Cub Cadet IH-103339

WASHER, 9/32 X 5/8 X .051
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet IH-351334-R1

COVER BATTERY BOX FRONT

$

$

Currently unavailable

6

Cub Cadet IH-538609-R2

BOX, BATTERY

Note: W/PRODUCT GRAPHIC, IH-539403-R1

$

$

Currently unavailable

Cub Cadet IH-179837

SCREW, 3/8-16 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED. LOCK

$

$

Currently unavailable

7

Cub Cadet IH-351340-R1

SCREW, BATTERY BOX - REAR

$

$

Not available

Cub Cadet IH-103127

NUT, 1/4-20 TYPE A WING

$

$

Not available

Cub Cadet IH-103339

WASHER, 9/32 X 5/8 X .051
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 20+

0
