Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 00501 - 10000) Air Cleaner and Connections Parts Diagram

Cub Lo-Boy Tractor

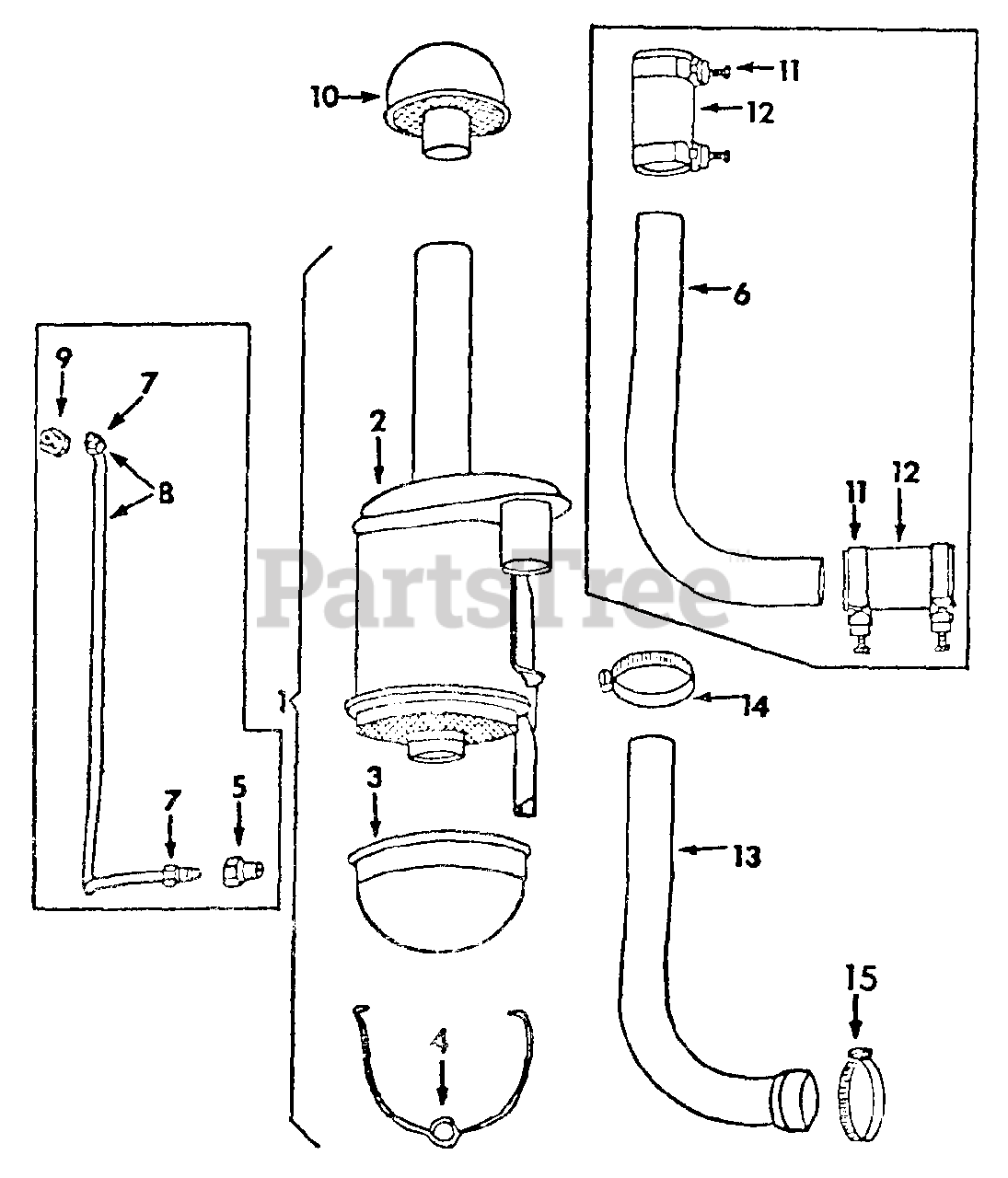

Air Cleaner and Connections Parts Diagram

  • Title

1

Cub Cadet IH-350746-R93

CLEANER ASSY, AIR

Note: (COMPOSED OF 1 CLAMP 352163-R2, 1 BODY, 1 CUP 352162-R91)

$

$

Currently unavailable

Cub Cadet IH-179812

SCREW, 5/16-18 X 1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

2

BODY, AIR CLEANER

Note: (NOT SERVICED SEPARATELY - ORDER AIR CLEANER ASSY)

$

$

Not available

Cub Cadet IH-444687

PLUG, 1/8-27 AUTO HEX-SOC PIPE

Note: (FOR USE IN INLET PIPE OF AIR CLEANER BODY IF REQUIRED)

$

$

Currently unavailable

3

Cub Cadet IH-352162-R91

CUP, AIR CLEANER OIL

$

$

Currently unavailable

4

Cub Cadet IH-352163-R2

CLAMP, AIR CLEANER CUP RETAINING

$

$

Currently unavailable

5

Cub Cadet IH-29901D

CONNECTOR, BREATHER PIPE

$

$

Currently unavailable

6

Cub Cadet IH-350752-R1

PIPE, AIR CLEANER

Note: (CUB TRACTORS W/SERIAL NO. 24812 AND BELOW)

$

$

Currently unavailable

7

Cub Cadet IH-19984-R1

NUT, BREATHER PIPE CONNECTOR

Note: (WILL WORK FOR IH-29898D)

$

$

Not available

8

Cub Cadet IH-369991-R11

PIPE

Note: W/TWO NUTS, IH-19984-R1, BREATHER

$

$

Currently unavailable

9

Cub Cadet IH-350755-R1

COUPLING, BREATHER PIPE

Note: (DISCONTINUED FOR SERVICE AFTER STOCK IS DEPLETED)

$

$

Currently unavailable

10

Cub Cadet IH-350750-R92

CAP, AIR INTAKE

$

$

Currently unavailable

11

Cub Cadet IH-995220-R1

CLAMP AIR CLEANER PIPE HOSE

Note: (REPLACES IH-39135H; CUB TRACTORS W/SERIAL NO. 248124 AND BELOW)

$

$

Not available

12

HOSE, 1-1/4 ID X 2-1/2 IN LONG, 3 PLY AIR CLEANER PIPE

Note: (USE 2-1/2 IN LENGTH FROM BULK ROLL MARKED, IH-407001-R1; CUB TRACTORS W/SERIAL NO. 248124 AND BELOW)

$

$

Not available

13

Cub Cadet IH-107142-C1

HOSE, AIR CLEANER TO CARBURETOR

Note: (CUB TRACTORS W/SERIAL NO. 248125 AND ABOVE)

$74.99

$

Usually ships in 3-6 days

0

14

Cub Cadet IH-996261-R91

CLAMP, HOSE -AIR CLEANER END

Note: (CUB TRACTORS W/SERIAL NO. 248125 AND ABOVE)

$

$

Currently unavailable

15

Cub Cadet IH-274087-R91

CLAMP, HOSE -CARBURETOR END

Note: (CUB TRACTORS W/SERIAL NO. 248125 AND ABOVE)

$

$

Currently unavailable
