LMC-212 - Echo Walk-Behind Lawn Mower Wheels, Bagger Asy Parts Diagram

Walk-Behind Lawn Mower

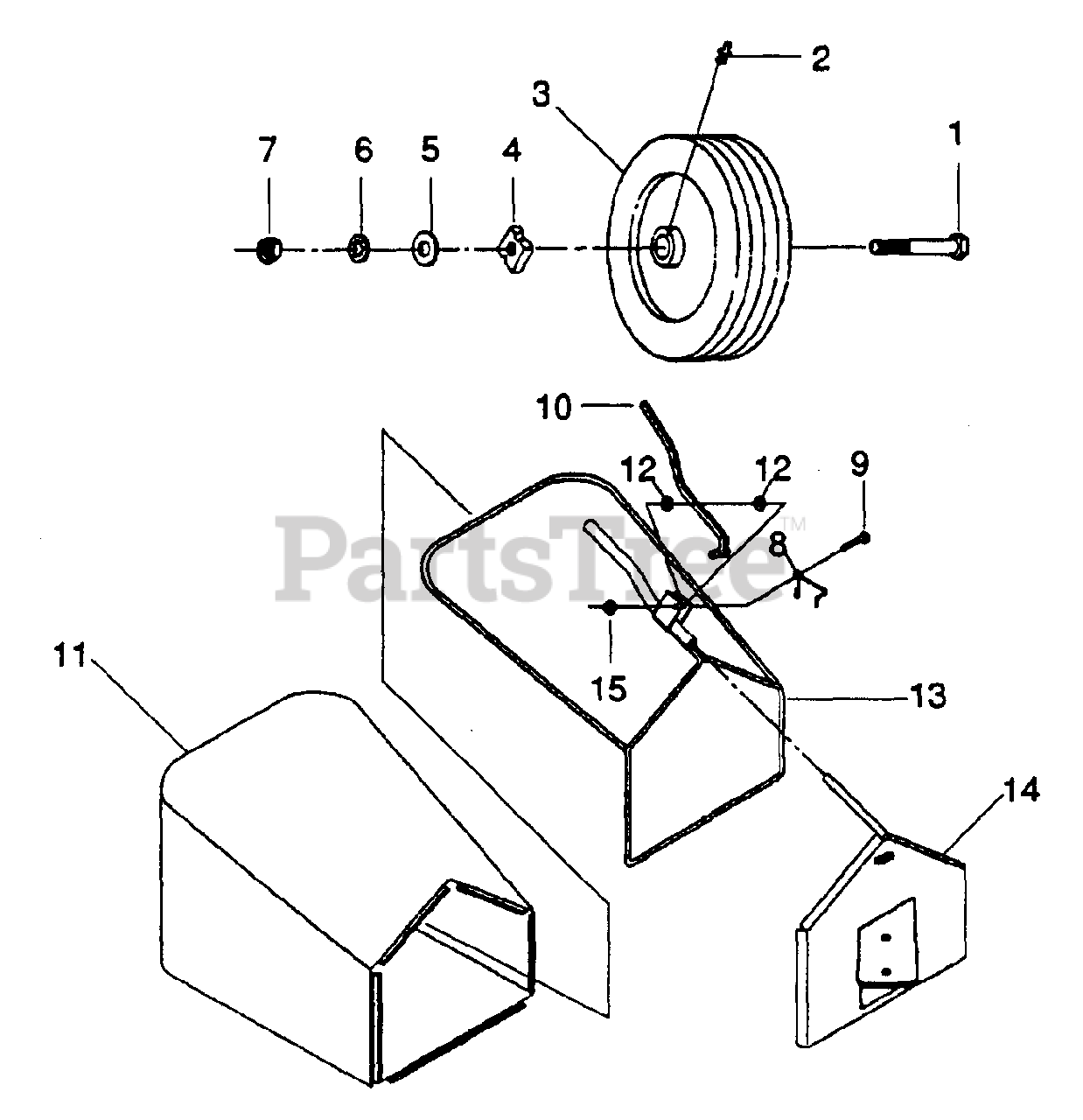

Wheels, Bagger Asy Parts Diagram

  • Title

Echo 710212024

FRONT WHEEL ASS'Y
(Superseded to Discontinued)

Note: 2 REQUIRED

$

$

Not available

Echo 710212025

REAR WHEEL ASSY
(Superseded to Discontinued)

Note: 2 REQUIRED

$

$

Not available

1

Echo 710800063

BOLT - 1/2-13 X 3-1/2"

$2.49

$

Usually ships in 2-4 days

0

2

Echo 710811000

FITTING, GREASE
(Superseded to Discontinued)

$

$

Not available

3

Echo 710213131

WHEEL, BEARING - FRONT -- 8"
(Superseded to Discontinued)

$

$

Not available

3

Echo 710213132

WHEEL, BEARING - REAR -- 10"
(Superseded to Discontinued)

$

$

Not available

4

Echo 710213009

AXLE WHEEL NUT
(Superseded to Discontinued)

$

$

Not available

5

Echo 710805264

WHEEL WASHER
(Superseded to Discontinued)

$

$

Not available

6

Echo 710805504

LOCKWASHER
(Superseded to Discontinued)

$

$

Not available

7

Echo 710804509

NUT - 1/2-13
(Superseded to Discontinued)

$

$

Not available

7

Echo 710211002

GRASS CATCHER KIT

$

$

Currently unavailable

8

Echo 710213108

CATCHER, LATCH SPRING
(Superseded to Discontinued)

$

$

Not available

9

Echo 710800256

1/4-20 X 1-1/2" HEX HD.
(Superseded to Discontinued)

$

$

Not available

10

Echo 710212020

CATCHER, LATCH
(Superseded to Discontinued)

$

$

Not available

11

Echo 710213205

BAG, DEBRIS
(Superseded to Discontinued)

$

$

Not available

12

Echo 710353029

HANDLE WASHER
(Superseded to Discontinued)

$

$

Not available

13

Echo 710212034

CATCHER, FRAME
(Superseded to Discontinued)

$

$

Not available

14

Echo 710212032

PLATE, PREVENT
(Superseded to Discontinued)

$

$

Not available

15

Echo 710803011

NUT - 1/4"
(Superseded to Discontinued)

$

$

Not available
