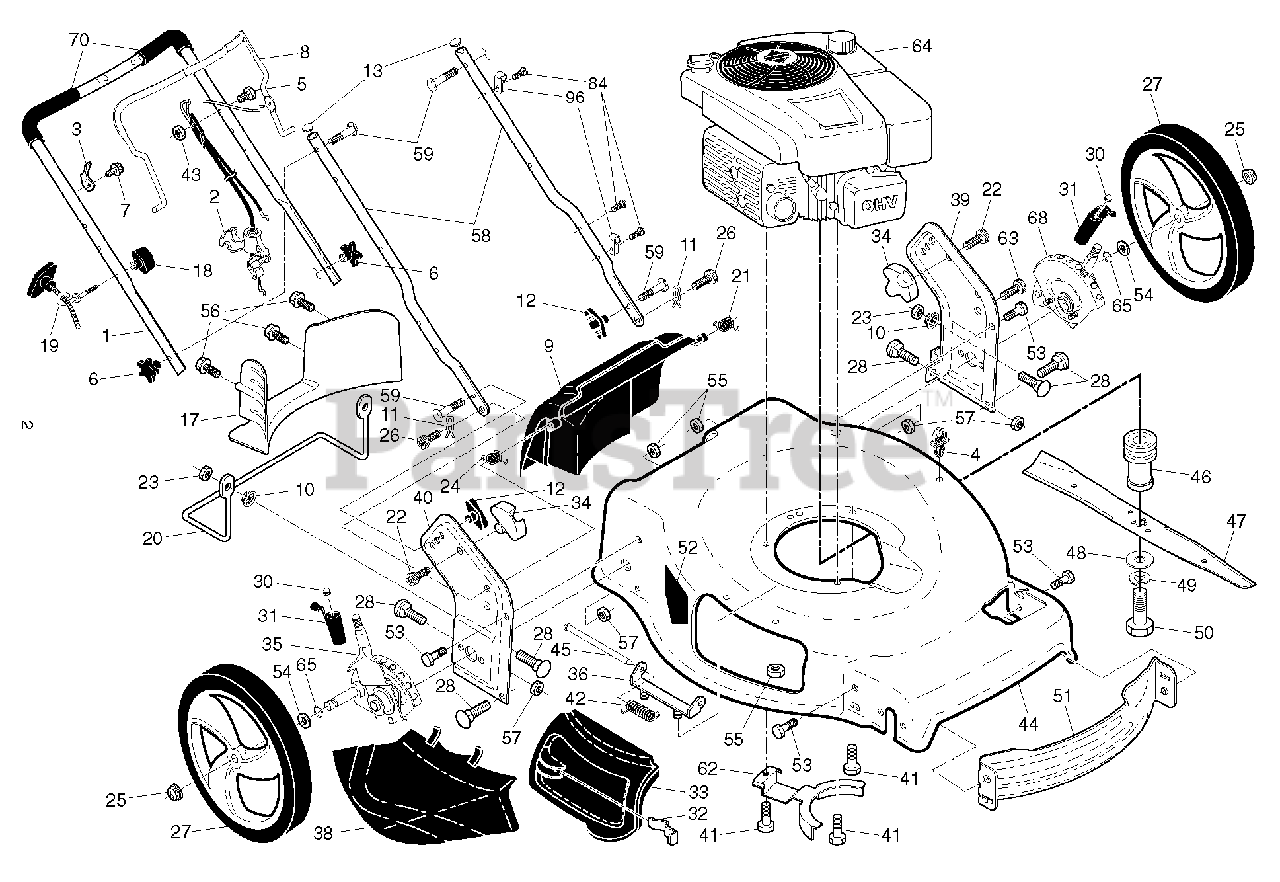

LM 2156 CMDA (961410223-08) - Jonsered Walk-Behind Mower (2015-08) FRAME Parts Diagram

Walk-Behind Mower

FRAME Parts Diagram

  • Title

1

Jonsered 585854812

HANDLE.ASM.UP.BS.AW2.GRIP.479

Note: . 70

$

$

Not available

2

Jonsered 585650811

CABLE.ASM.MZR/DP.B&S PRO.FGD

$34.99

$

Usually ships in 3-10 days

0

3

Jonsered 532430034

BRACKET.UPSTOP.RT

$6.99

$

In Stock, only 3 left!

0

4

Jonsered 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

5

Jonsered 532199687

SCREW

$4.99

$

Usually ships in 3-10 days

0

6

Jonsered 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 4 left!

0

7

Jonsered 532178848

SCREW

$7.49

$

In Stock, Qty 20+

0

8

Jonsered 532426505

No Description Available

$46.99

$

Usually ships in 3-10 days

0

9

Jonsered 532426300

No Description Available
(Superseded to 583429201)

$24.99

$

Usually ships in 3-10 days

0

10

Jonsered 532423063

No Description Available
(Superseded to 583400601)

$4.99

$

Usually ships in 3-10 days

0

11

Jonsered 532425575

COTTER.HAIRPIN.DOOR/HANDLE.PIV

$6.49

$

In Stock, Qty 18

0

12

Jonsered 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 18

0

13

Jonsered 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$4.99

$

Usually ships in 3-10 days

0

17

Jonsered 532427307

No Description Available

$15.99

$

Usually ships in 3-10 days

0

18

Jonsered 581912601

T-Knob, New Rope Guide

$4.99

$

In Stock, only 2 left!

0

19

Jonsered 581902101

Rope Guide, Blk Zinc Chrom

$

$

Not available

20

Jonsered 532422467

No Description Available
(Superseded to 583394001)

$14.99

$

Usually ships in 3-10 days

0

21

Jonsered 532419949

SPRING.LH.GRAY

$6.49

$

In Stock, Qty 8

0

22

Jonsered 532141841

SCREW.PAN.HEAD.#10

$7.49

$

In Stock, only 2 left!

0

23

Jonsered 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

24

Jonsered 532419948

SPRING.RH.GRAY

$6.49

$

In Stock, only 3 left!

0

25

Jonsered 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

26

Jonsered 532419945

SCREW,DOOR/HANDLE.PIVOT

$6.49

$

In Stock, Qty 20+

0

27

Jonsered 532432747

No Description Available

$53.99

$

Usually ships in 3-10 days

0

28

Jonsered 586212501

Carriage Bolt, 5/16-18 X 5/8

$4.99

$

In Stock, Qty 8

0

30

Jonsered 532413808

No Description Available
(Superseded to 583343001)

$6.49

$

In Stock, Qty 20+

0

31

Jonsered 532431893

No Description Available

$

$

Not available

32

Jonsered 532441192

LATCH.DOOR.ZINC

$

$

Not available

33

Jonsered 532432642

No Description Available

$10.99

$

In Stock, Qty 13

0

34

Jonsered 532426125

No Description Available

$6.49

$

Usually ships in 3-10 days

0

35

Jonsered 532431131

No Description Available
(Superseded to 583466101)

Note: RH. 30 31

$54.99

$

Usually ships in 3-10 days

0

36

Jonsered 532175735

HINGE BRACKET ASSEMBLY

$

$

Not available

38

Jonsered 532426129

DEFLECTOR.CLIPPING.22.BLACK

$11.99

$

In Stock, Qty 8

0

39

Jonsered 585900702

Handle Bracket Assembly, LH 22+ Black

Note: LH

$

$

Not available

40

Jonsered 585900802

Handle Bracket Assembly, RH 22+ Black

Note: RH

$27.99

$

In Stock, only 1 left!

0

41

Jonsered 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

42

Jonsered 532193000

SPRING.TORSION

$7.49

$

In Stock, only 3 left!

0

43

Jonsered 532132004

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

44

Jonsered 581708360

KIT.HSG.22+.FGD.MC.WO.CE.MS667

$

$

Not available

45

Jonsered 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 10

0

46

Jonsered 581473301

Blade Adapter, 25mm Star

$17.99

$

In Stock, Qty 13

0

47

Jonsered 580244001

BLADE.22+4N1.2PIN.5STAR.
(Superseded to 580244002)

$24.99

$

In Stock, Qty 10

0

48

Jonsered 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 4 left!

0

49

Jonsered 532850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

50

Jonsered 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

51

Jonsered 532430599

No Description Available

$

$

Not available

52

Jonsered 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

53

Jonsered 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

54

Jonsered 532088348

WASHER PM

$7.49

$

In Stock, Qty 6

0

55

Jonsered 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

56

Jonsered 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

57

Jonsered 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

58

Jonsered 585908202

HANDLE.LOWER.22+.BT.2PC.BLK

$

$

Not available

59

Jonsered 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 4 left!

0

62

Jonsered 532435059

BRACKET.ENG/BELTKEEPER
(Superseded to 532425711)

$

$

Not available

63

Jonsered 532178848

SCREW

$7.49

$

In Stock, Qty 20+

0

64

Jonsered 000000000

No Description Available

Note: B S 12S902-0110-H1 FOR SERVICE PARTS 1-800-233-3723. 52

$

$

Not available

65

Jonsered 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

68

Jonsered 532431134

No Description Available
(Superseded to 583466301)

Note: LH. 30 31

$54.99

$

Usually ships in 3-10 days

0

70

Jonsered 585161002

GRIP.HDL.FOAM.WIDE.2PC.222MM

$

$

Not available

84

Jonsered 532428124

FASTENER.PUSH.O.250X0.783

$6.49

$

In Stock, only 2 left!

0

96

Jonsered 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

Jonsered 532423849

Bag of Hardware, 22+

Note: INCLUDES KEY NUMBERS 12 59

$

$
