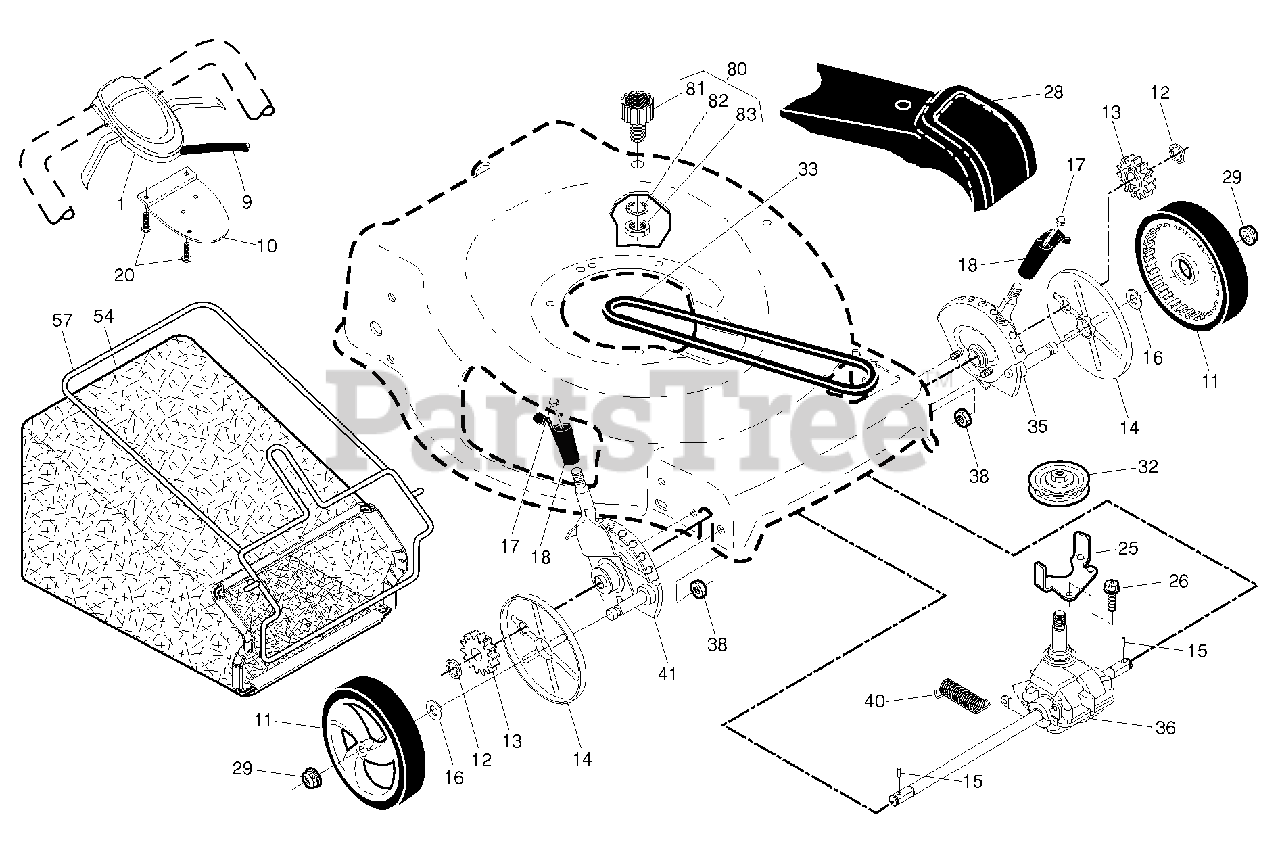

LM 2156 CMDA (961410223-08) - Jonsered Walk-Behind Mower (2015-08) DRIVE Parts Diagram

Walk-Behind Mower

DRIVE Parts Diagram

  • Title

1

Jonsered 579708909

Control, Aw2 22+Fg Gen Bs Bk/Bk

Note: . 9

$96.99

$

Usually ships in 3-10 days

0

9

Jonsered 532431649

No Description Available

$60.99

$

In Stock, only 2 left!

0

10

Jonsered 532432790

BRACKET.DRIVE.CONTR.GEN2.BLACK

$

$

Not available

11

Jonsered 532402567

No Description Available
(Superseded to 583719501)

$28.99

$

In Stock, Qty 7

0

12

Jonsered 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

13

Jonsered 532403849

PINION.14.TEETH.FGD

$6.99

$

In Stock, Qty 8

0

14

Jonsered 581840401

Inner Wheel Dust Cover

$6.99

$

In Stock, Qty 5

0

15

Jonsered 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 5

0

16

Jonsered 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

17

Jonsered 532413808

No Description Available
(Superseded to 583343001)

$6.49

$

In Stock, Qty 20+

0

18

Jonsered 532431895

No Description Available
(Superseded to 532426188)

$6.99

$

In Stock, Qty 8

0

20

Jonsered 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

25

Jonsered 532431711

BRACKET.BELT.GUIDE.22+FGD.BZP
(Superseded to 532430458)

$

$

Not available

26

Jonsered 532163409

SCREW

$7.49

$

In Stock, Qty 6

0

28

Jonsered 580289901

Drive Cover Assembly, 419930 Ce
(Superseded to 583405301)

Note: Includes Mounting Screw Pushnut

$17.99

$

Usually ships in 3-10 days

0

29

Jonsered 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

32

Jonsered 586989701

PULLEY.DRIVEN.EZ/VARI (2 2MC)

$7.49

$

Usually ships in 3-10 days

0

33

Jonsered 532426609

No Description Available
(Superseded to 532196853)

$20.99

$

Usually ships in 3-10 days

0

35

Jonsered 532431124

No Description Available
(Superseded to 583465701)

Note: . 17 18

$

$

Not available

36

Jonsered 532424741

No Description Available
(Superseded to 589600601)

$125.99

$

In Stock, only 2 left!

0

38

Jonsered 532438130

NUT.FLANGE.1-4-20-SERR
(Superseded to 596041001)

$3.99

$

In Stock, Qty 20+

0

40

Jonsered 532406558

SPRING

$8.99

$

In Stock, Qty 7

0

41

Jonsered 532431121

No Description Available
(Superseded to 583465501)

Note: . 17 18

$

$

Not available

54

Jonsered 580947302

GBAG.A3610010.BLK.GENERIC
(Superseded to 583471001)

$

$

Not available

57

Jonsered 585054702

Grass Bag Frame, 22+ Black

$34.99

$

In Stock, Qty 8

0

80

Jonsered 532438489

KIT.WASH-OUT PORT.ZINC

$18.99

$

In Stock, only 1 left!

0

81

Jonsered 532434994

WASHOUT.PORT.ZINC.RGD.22+
(Superseded to 532438489)

$18.99

$

In Stock, only 1 left!

0

82

Jonsered 532415585

WASHER.LOCK.INTERNAL.TOOTH

$4.99

$

In Stock, only 2 left!

0

83

Jonsered 532415586

LOCKNUT.HEX.WITH.O-RING

$6.49

$

In Stock, only 4 left!

0
