LM 2156 CMDA (961410223-04) - Jonsered Walk-Behind Mower (2011-12) DRIVE Parts Diagram

Walk-Behind Mower

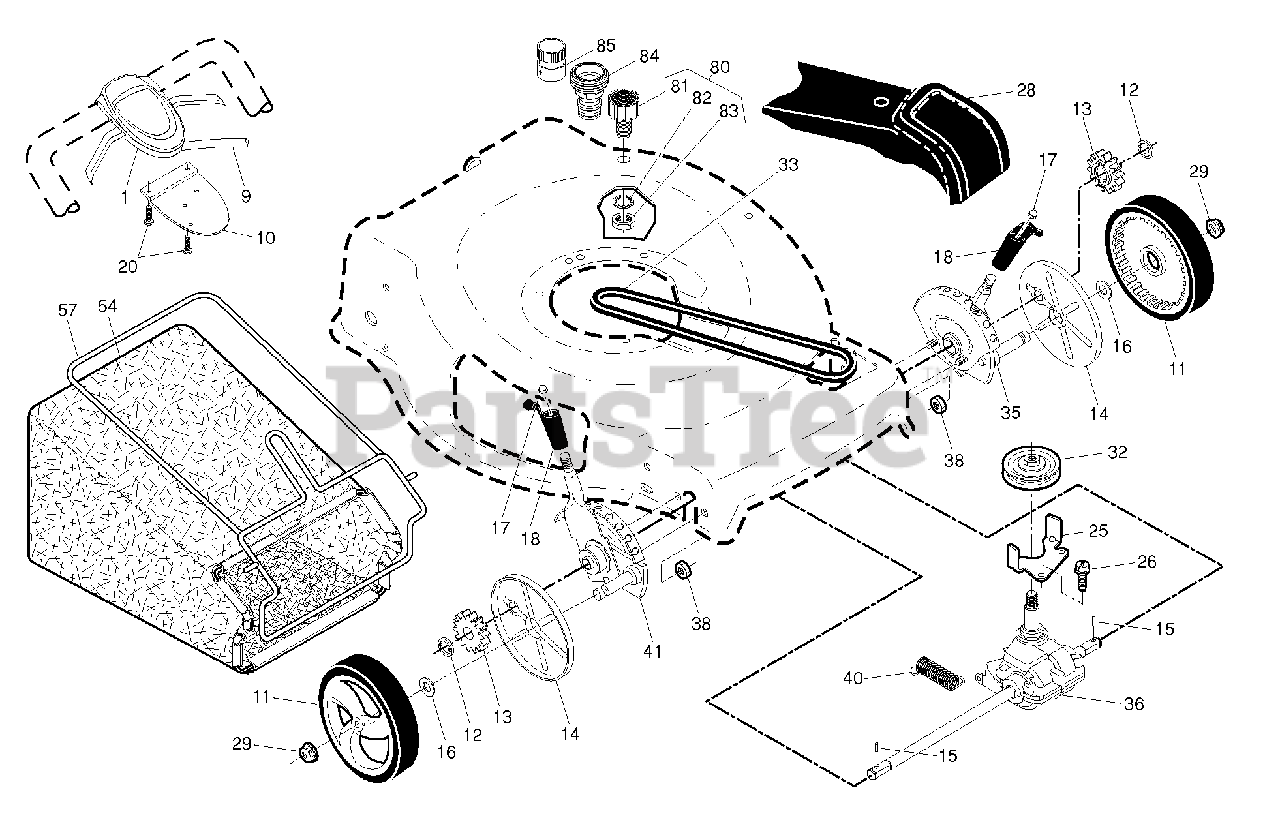

DRIVE Parts Diagram

  • Title
1

Jonsered 532431381

No Description Available
(Superseded to 583469501)

Note: . 9

$96.99

$

Usually ships in 3-10 days

0

9

Jonsered 532431649

No Description Available

$60.99

$

In Stock, only 2 left!

0

10

Jonsered 532432790

BRACKET.DRIVE.CONTR.GEN2.BLACK

$

$

Not available

11

Jonsered 532402567

No Description Available
(Superseded to 583719501)

$28.99

$

In Stock, Qty 7

0

12

Jonsered 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

13

Jonsered 532403849

PINION.14.TEETH.FGD

$6.99

$

In Stock, Qty 8

0

14

Jonsered 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, only 1 left!

0

15

Jonsered 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 5

0

16

Jonsered 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

17

Jonsered 532413808

No Description Available
(Superseded to 583343001)

$6.49

$

In Stock, Qty 20+

0

18

Jonsered 532431895

No Description Available
(Superseded to 532426188)

$

$

Not available

25

Jonsered 532431711

BRACKET.BELT.GUIDE.22+FGD.BZP
(Superseded to 532430458)

$

$

Not available

$7.49

$

In Stock, Qty 6

0

28

Jonsered 532432675

No Description Available
(Superseded to 583483701)

$20.99

$

Usually ships in 3-10 days

0

29

Jonsered 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

32

Jonsered 532443262

PULLEY.DRIVE.EZ/VARI.SCREWON

$13.99

$

In Stock, only 1 left!

0

33

Jonsered 532196853

BELT.DRIVE.FGD.

$20.99

$

Usually ships in 3-10 days

0

35

Jonsered 532431124

No Description Available
(Superseded to 583465701)

Note: . 17 18

$

$

Not available

36

Jonsered 532424741

No Description Available
(Superseded to 589600601)

$125.99

$

In Stock, only 2 left!

0

38

Jonsered 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

40

$8.99

$

In Stock, Qty 7

0

41

Jonsered 532431121

No Description Available
(Superseded to 583465501)

Note: . 17 18

$

$

Not available

54

Jonsered 532431555

No Description Available
(Superseded to 583471001)

$

$

Not available

57

Jonsered 532419951

FRAME.GBAG.22PLUS
(Superseded to 585054702)

$34.99

$

In Stock, Qty 6

0

80

Jonsered 532421114

KIT.WASH-OUT.PORT

$24.99

$

In Stock, only 2 left!

0

81

Jonsered 532419735

FITTING, HOSE, WATER WASHOUT
(Superseded to 532421114)

$24.99

$

In Stock, only 2 left!

0

82

Jonsered 532415585

WASHER.LOCK.INTERNAL.TOOTH

$4.99

$

In Stock, only 2 left!

0

83

Jonsered 532415586

LOCKNUT.HEX.WITH.O-RING

$6.49

$

In Stock, only 4 left!

0

20

Jonsered 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

84

Jonsered 532432066

No Description Available
(Superseded to 583476401)

$4.99

$

Usually ships in 3-10 days

0

85

Jonsered 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 5

0
