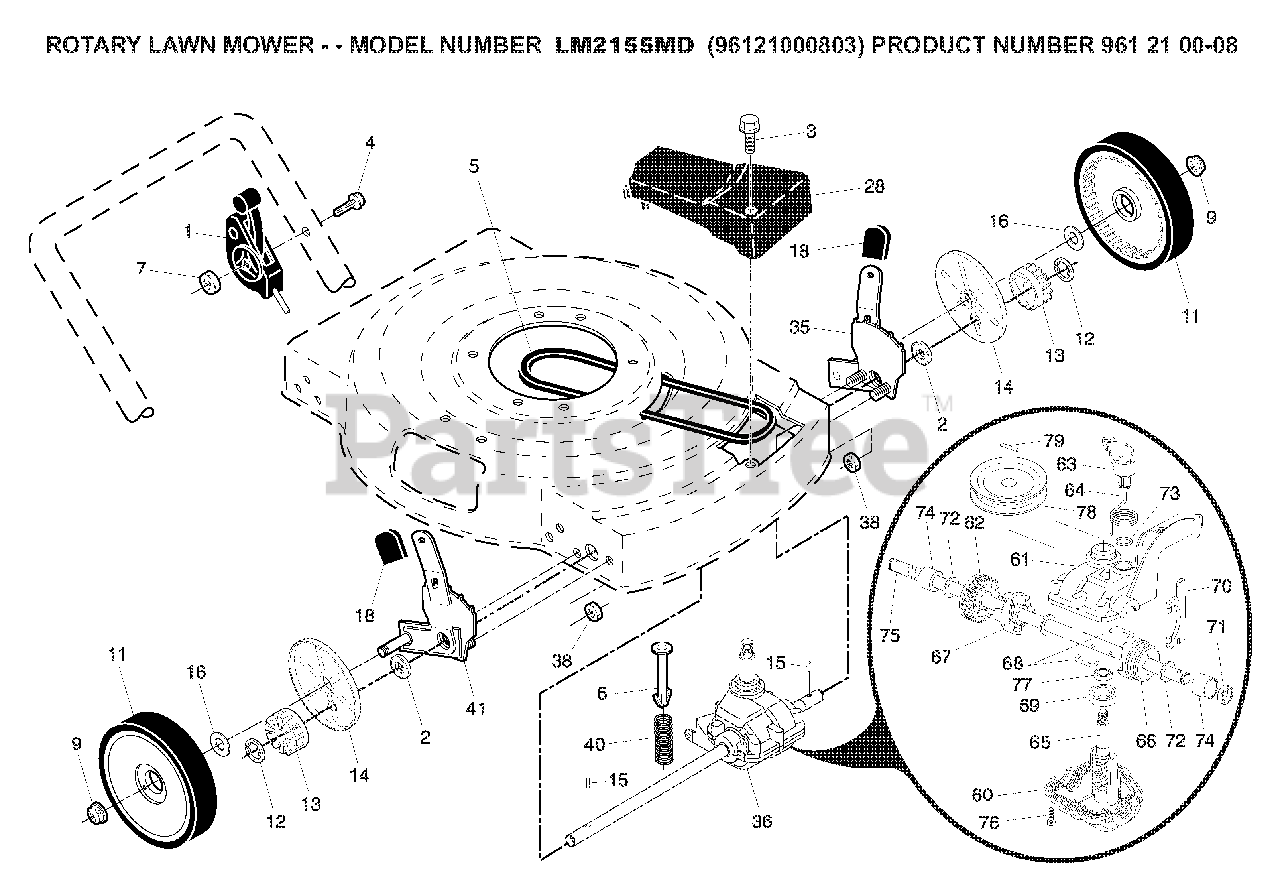

LM 2155 MD (961210008-03) - Jonsered Walk-Behind Mower (2007-06) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

PRODUCT COMPLETE Parts Diagram

  • Title
1

Jonsered 532184588

DRIVE CONTROL 59.8 FWGD

$53.99

$

In Stock, only 1 left!

0

2

Jonsered 532191039

BEARING
(Superseded to 587070202)

$14.99

$

In Stock, Qty 15

0

3

Jonsered 532143603

No Description Available

$

$

Not available

$

$

Not available

5

Jonsered 532146527

BELT THERM .32
(Superseded to 532157769)

$17.99

$

In Stock, only 2 left!

0

6

Jonsered 532150495

SPRING RETAINER

$7.49

$

In Stock, only 1 left!

0

7

Jonsered 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

9

Jonsered 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

11

Jonsered 532402567

No Description Available
(Superseded to 583719501)

$28.99

$

In Stock, Qty 7

0

12

Jonsered 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

13

Jonsered 532403849

PINION.14.TEETH.FGD

$6.99

$

In Stock, Qty 8

0

14

Jonsered 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, only 3 left!

0

15

Jonsered 532191017

PAWL.DRIVE
(Superseded to 532404845)

$5.99

$

In Stock, only 3 left!

0

16

Jonsered 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

18

Jonsered 532132800

SELECTOR KNOB
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

28

Jonsered 532195811

No Description Available

$

$

Not available

35

Jonsered 532406345

No Description Available

$

$

Not available

36

Jonsered 532199206

TRANSMISSION.22.FGD.W/PULLEY
(Superseded to 532415226)

$84.99

$

Usually ships in 3-10 days

0

38

Jonsered 873800400

LOCKNUT
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

40

Jonsered 532137090

SPRING.EXTENSION

$6.49

$

In Stock, only 1 left!

0

41

Jonsered 532406344

No Description Available

$

$

Not available

60

Jonsered 532183497

LOWER CASE

$15.99

$

In Stock, only 1 left!

0

61

Jonsered 532183498

UPPER CASE

$15.99

$

Usually ships in 3-10 days

0

62

Jonsered 532183499

GEAR.27.TEETH.WALK.MOWER

$17.99

$

Usually ships in 3-10 days

0

63

Jonsered 532183500

LEVER, CLUTCH

$6.49

$

Usually ships in 3-10 days

0

64

Jonsered 532183501

SPRING, RETURN

$6.49

$

Usually ships in 3-10 days

0

65

Jonsered 532183502

SHAFT, INPUT

$30.99

$

In Stock, only 1 left!

0

66

Jonsered 532183503

DOG, MOVABLE

$6.49

$

Usually ships in 3-10 days

0

67

Jonsered 532183504

DOG, FIXED

$4.99

$

Usually ships in 3-10 days

0

68

Jonsered 532183505

WIRE, FORMED

$6.99

$

Usually ships in 3-10 days

0

69

$8.99

$

Usually ships in 3-10 days

0

70

Jonsered 532183507

FORK, SHIFT

$9.99

$

Usually ships in 3-10 days

0

71

Jonsered 532183508

SEAL.OUTPUT.SHAFT

$11.99

$

In Stock, only 1 left!

0

72

$6.49

$

Usually ships in 3-10 days

0

73

Jonsered 532183510

SEAL, CASE

$6.49

$

Usually ships in 3-10 days

0

74

$5.99

$

Usually ships in 3-10 days

0

75

Jonsered 532196561

SHAFT OUTPUT

$54.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

77

Jonsered 532183514

SEAL INPUT SHAFT

$7.99

$

In Stock, only 2 left!

0

78

Jonsered 532199852

PULLEY.DRIVEN.FGD

$30.99

$

In Stock, only 1 left!

0

79

Jonsered 532199419

PIN RETAINER

$8.99

$

Usually ships in 3-10 days

0
