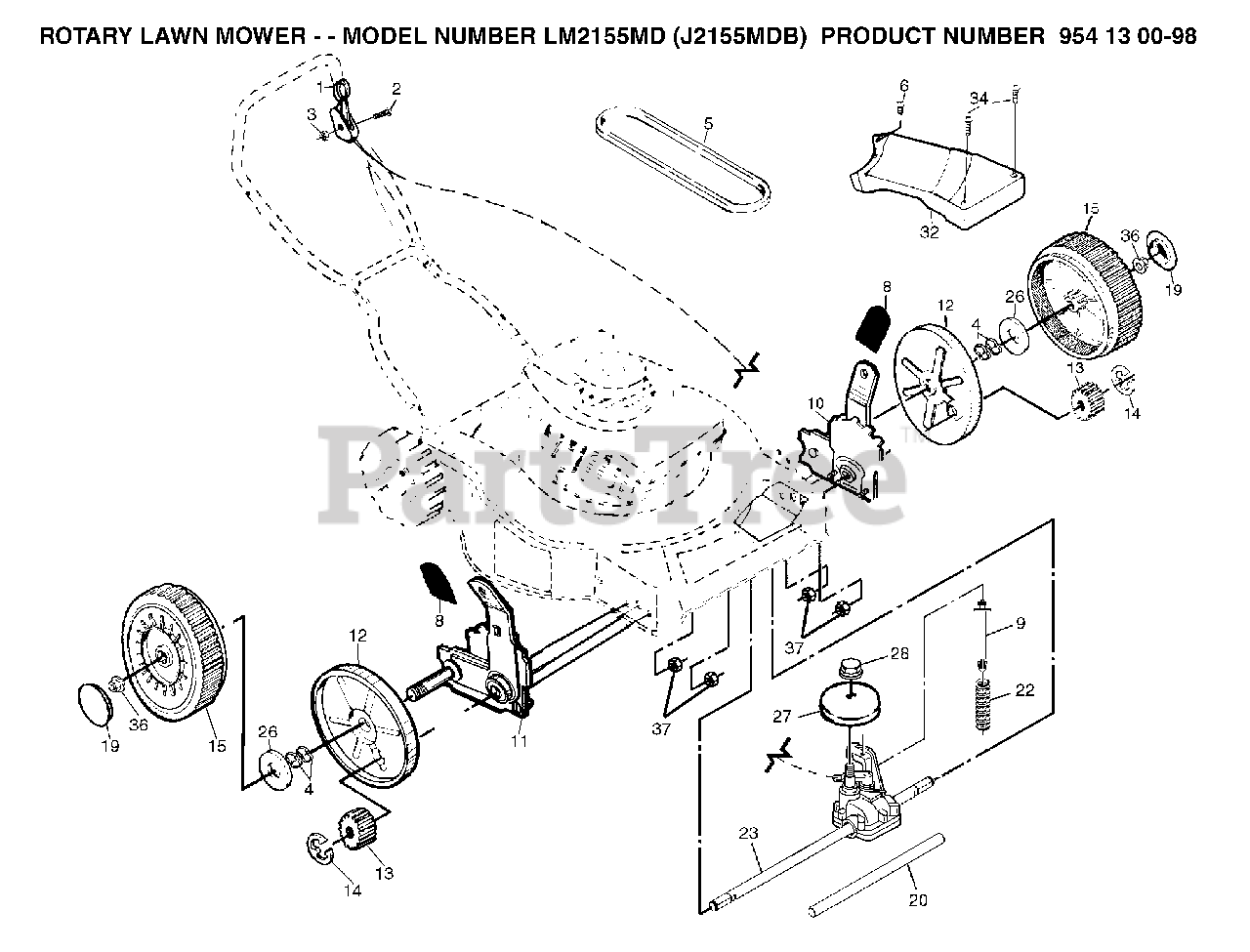

LM 2155 MD (954130098) - Jonsered Walk-Behind Mower (2003-05) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

PRODUCT COMPLETE Parts Diagram

  • Title
1

Jonsered 532184588

DRIVE CONTROL 59.8 FWGD

$53.99

$

In Stock, only 1 left!

0

$

$

Not available

3

Jonsered 532751152

No Description Available
(Superseded to 532191730)

$7.49

$

In Stock, Qty 5

0

4

Jonsered 532057143

WAVE WASHER
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

5

Jonsered 532146527

BELT THERM .32
(Superseded to 532157769)

$17.99

$

In Stock, only 2 left!

0

6

Jonsered 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

8

Jonsered 532132800

SELECTOR KNOB
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

9

Jonsered 532150495

SPRING RETAINER

$7.49

$

In Stock, only 1 left!

0

10

Jonsered 532152465

No Description Available
(Superseded to 584319501)

$28.99

$

Usually ships in 3-10 days

0

11

Jonsered 532152463

No Description Available
(Superseded to 584319401)

$28.99

$

Usually ships in 3-10 days

0

12

Jonsered 532180504

DUST COVER, WHEEL
(Superseded to 532189403)

$6.99

$

In Stock, only 3 left!

0

13

Jonsered 532137054

PINION GEAR

$6.49

$

Usually ships in 3-10 days

0

14

Jonsered 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

15

Jonsered 532180759

WHEEL.8X2.RADIAL.GRAY
(Superseded to 532193144)

$

$

Not available

19

Jonsered 532801153

No Description Available

$

$

Not available

20

Jonsered 532086012

DRV SHAFT TUBE PM

$

$

Not available

22

Jonsered 532137090

SPRING.EXTENSION

$6.49

$

In Stock, only 1 left!

0

23

Jonsered 532187211

TRANSMISSION 22RD

$109.99

$

Usually ships in 3-10 days

0

26

Jonsered 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

27

Jonsered 532137052

PULLEY
(Superseded to 532189407)

$

$

Not available

28

Jonsered 532132010

FLANGED LOCKNUT 3/8-16 ZINC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

32

Jonsered 532137088

No Description Available

$

$

Not available

$7.49

$

Usually ships in 3-10 days

0

36

Jonsered 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

37

Jonsered 873800400

LOCKNUT
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

--

Jonsered 532182134

No Description Available
(Superseded to 583119801)

$14.99

$

Usually ships in 3-10 days

0
