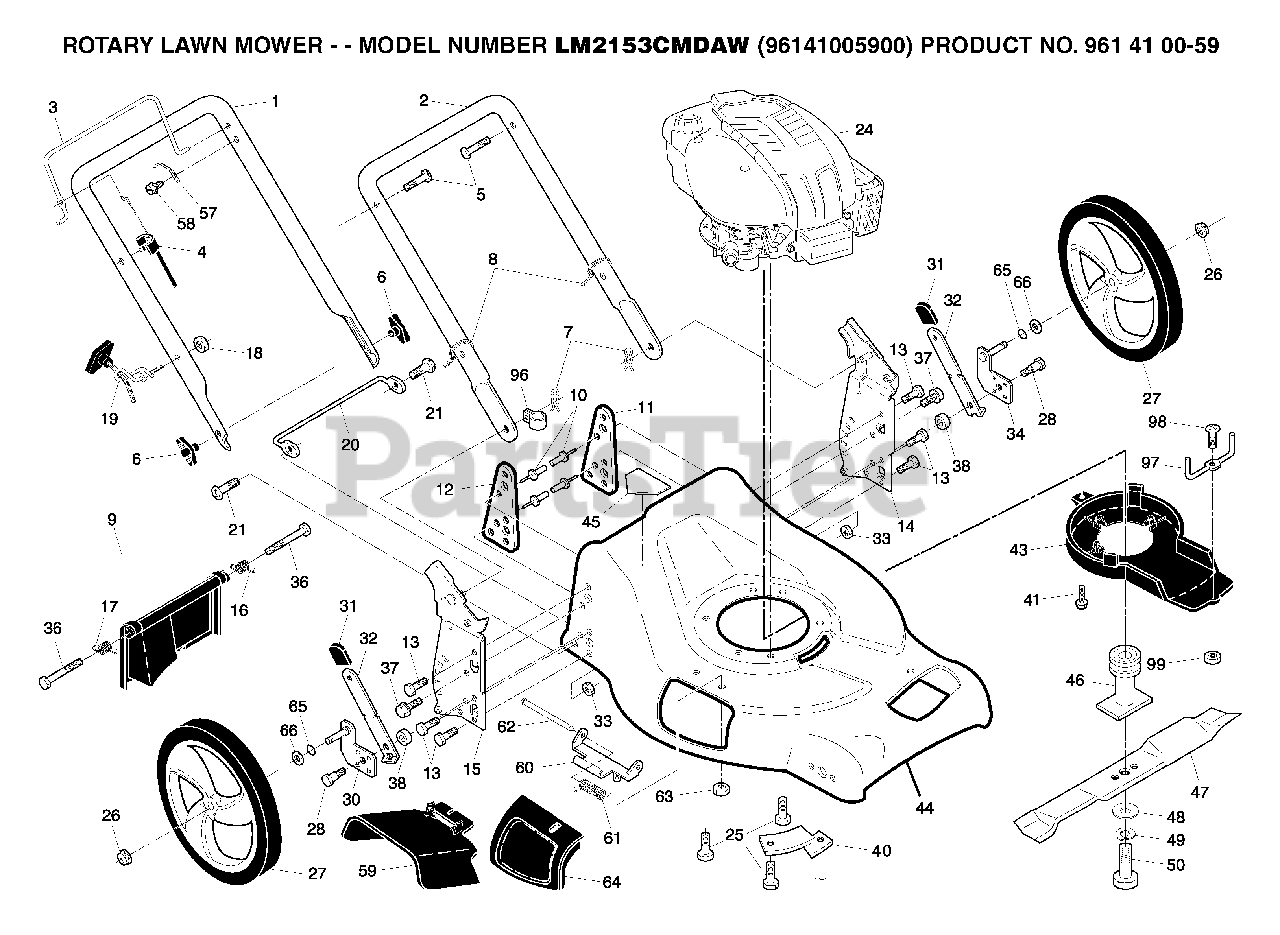

LM 2153 CMDAW (961410059-00) - Jonsered Walk-Behind Mower (2006-01) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

PRODUCT COMPLETE Parts Diagram

  • Title
1

Jonsered 532402905

HANDLE.UPER.D.ST.EZ
(Superseded to 532427904)

$30.99

$

Usually ships in 3-10 days

0

2

Jonsered 532153605

LOWER HANDLE
(Superseded to 532151721)

$

$

Not available

3

Jonsered 532402932

No Description Available

$

$

Not available

4

Jonsered 532183567

CABLE.MZR

$17.99

$

In Stock, only 2 left!

0

5

Jonsered 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 2 left!

0

6

Jonsered 532191856

HNDL.KNOB.GRAY
(Superseded to 532189713)

$9.49

$

In Stock, Qty 13

0

7

Jonsered 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

8

Jonsered 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

9

Jonsered 532180479

REAR DOOR KIT.

$40.99

$

Usually ships in 3-10 days

0

10

Jonsered 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

11

Jonsered 532182538

SUPPORT BRACKET LH

$4.99

$

Usually ships in 3-10 days

0

12

Jonsered 532182539

SUPPORT BRACKET RH
(Superseded to 532175070)

$20.99

$

Usually ships in 3-10 days

0

13

Jonsered 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

14

Jonsered 532196036

BRKT.ASM.HNDL.21FGD
(Superseded to 532175577)

$14.99

$

Usually ships in 3-10 days

0

15

Jonsered 532196037

BRKT.ASM.HNDL.21FGD.EZ
(Superseded to 532181017)

$13.99

$

Usually ships in 3-10 days

0

16

Jonsered 532180071

SPRING LH

$

$

Not available

17

Jonsered 532180072

SPRING.REAR.DOOR.EZ.21

$7.49

$

In Stock, only 1 left!

0

18

Jonsered 532132004

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

19

Jonsered 532194788

GUIDE.ROPE.STD.BLK.ZIN
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

20

Jonsered 532179205

No Description Available

$

$

Not available

$

$

Not available

25

Jonsered 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

26

Jonsered 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

27

Jonsered 532402595

No Description Available

$

$

Not available

28

Jonsered 532160828

SHOULDER BOLT

$

$

Not available

30

Jonsered 532402571

ARM.ASM.AXLE.H/W,RR.BZ

$

$

Not available

31

Jonsered 532701037

SELECTOR KNOB

$5.99

$

In Stock, only 4 left!

0

32

Jonsered 532190157

SPRING.SELECTOR.21.FWG

$6.49

$

Usually ships in 3-10 days

0

33

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

34

Jonsered 532402572

ARM.ASM.AXLE.H/W.LR.BZ

$

$

Not available

$

$

Not available

37

Jonsered 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

38

Jonsered 819112206

WASHER.FLAT.34X1.38X22

$5.99

$

In Stock, Qty 5

0

40

Jonsered 532190939

BRACKET
(Superseded to 532188839)

$6.49

$

Usually ships in 3-10 days

0

41

Jonsered 532192325

SCREW.HEX.WSH

$6.49

$

Usually ships in 3-10 days

0

43

Jonsered 532198910

DEBRIS SHIELD
(Superseded to 532443950)

$

$

Not available

44

Jonsered 532400092

No Description Available

$

$

Not available

45

Jonsered 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

46

Jonsered 532197752

No Description Available

$

$

Not available

47

Jonsered 532199377

BLADE.21.PUSH
(Superseded to 539113233)

$27.99

$

In Stock, only 2 left!

0

48

Jonsered 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 2 left!

0

49

Jonsered 532850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

50

Jonsered 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

57

Jonsered 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

$6.49

$

In Stock, Qty 5

0

59

Jonsered 532175071

DISCHARGE DEFLECTOR

$20.99

$

Usually ships in 3-10 days

0

60

Jonsered 532175735

HINGE BRACKET ASSEMBLY

$

$

Not available

61

Jonsered 532193000

SPRING.TORSION

$7.49

$

In Stock, only 3 left!

0

62

Jonsered 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 10

0

63

Jonsered 873800400

LOCKNUT
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

64

Jonsered 532175066

DOOR.MULCH.21.REAR

$11.99

$

In Stock, only 1 left!

0

65

Jonsered 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

66

Jonsered 532088348

WASHER PM

$7.49

$

In Stock, Qty 6

0

96

Jonsered 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

97

Jonsered 532197162

KEEPER.BELT.FGD

$

$

Not available

$4.99

$

Usually ships in 3-10 days

0

99

Jonsered 532182228

NUT.HEX.#8

$5.99

$

Usually ships in 3-10 days

0

--

Jonsered 532400090

No Description Available

$7.49

$

Usually ships in 3-10 days

0

--

Jonsered 532400091

No Description Available

$

$

Not available

--

Jonsered 532400097

No Description Available

$

$

Not available

--

Jonsered 532400098

No Description Available

$

$

Not available
