LM 2153 CMDAE (961410222-03) - Jonsered Walk-Behind Mower (2010-12) DRIVE_B Parts Diagram

Walk-Behind Mower

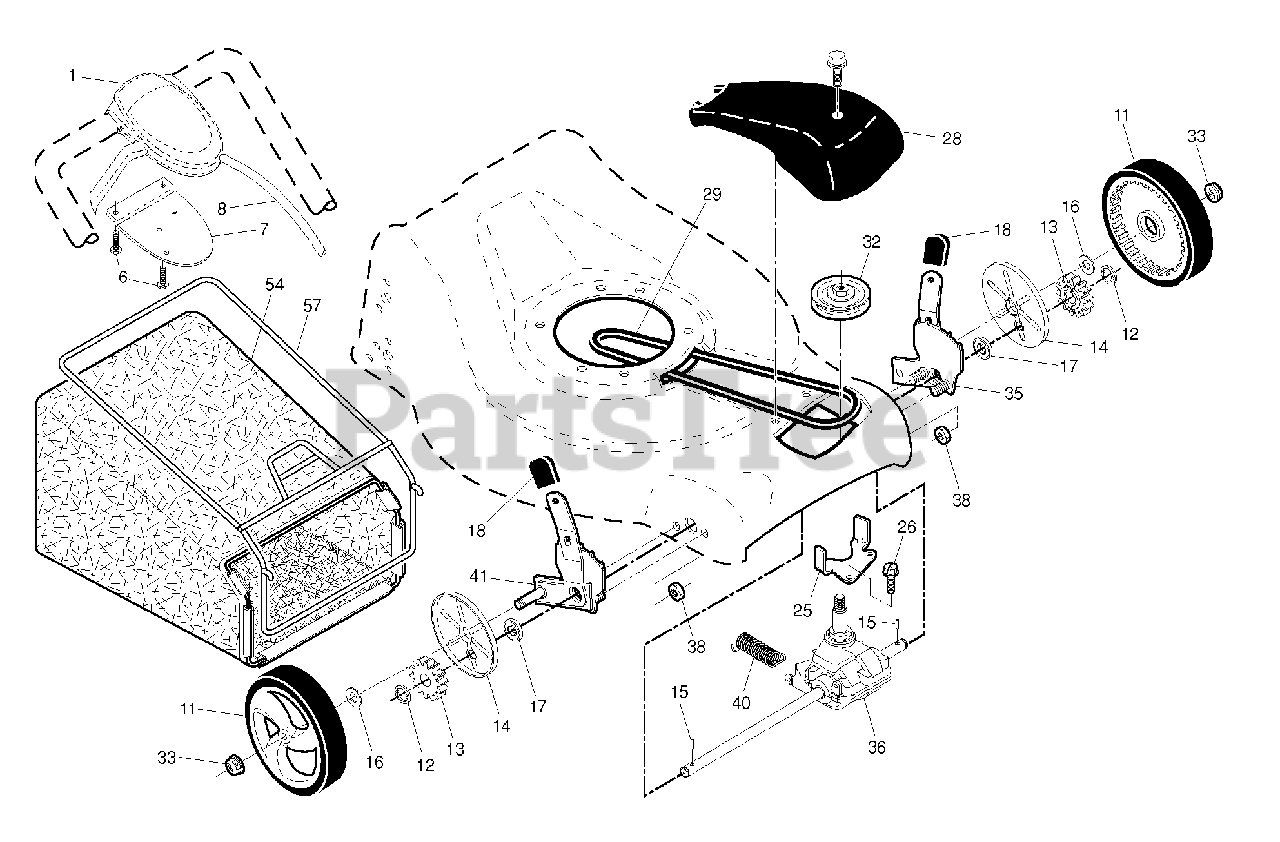

DRIVE_B Parts Diagram

  • Title
1

Jonsered 532425216

No Description Available

Note: . 8

$

$

Not available

6

Jonsered 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

7

Jonsered 532400723

BRACKET.DRIVE.CONTROL.MOUNT

$

$

Not available

8

Jonsered 532406259

CABLE ASSEMBLY, DRIVE

$53.99

$

In Stock, Qty 10

0

11

Jonsered 532402567

No Description Available
(Superseded to 583719501)

$28.99

$

In Stock, Qty 7

0

12

Jonsered 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

13

Jonsered 532403849

PINION.14.TEETH.FGD

$6.99

$

In Stock, Qty 8

0

14

Jonsered 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, only 1 left!

0

15

Jonsered 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 5

0

16

Jonsered 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

17

Jonsered 532421836

BEARING.ASM.
(Superseded to 587070202)

$14.99

$

In Stock, Qty 15

0

18

Jonsered 532701037

SELECTOR KNOB

$5.99

$

In Stock, only 4 left!

0

25

Jonsered 532411663

BELT KEEPER
(Superseded to 532404843)

$

$

Not available

$7.49

$

In Stock, Qty 6

0

28

Jonsered 532432662

No Description Available
(Superseded to 583482901)

$21.99

$

Usually ships in 3-10 days

0

29

Jonsered 532194149

BELT.DRIVE.FG

$24.99

$

In Stock, only 1 left!

0

32

Jonsered 532194018

RP PULLEY.DRIVE.EZ
(Superseded to 532443262)

$13.99

$

In Stock, only 1 left!

0

33

Jonsered 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

35

Jonsered 532438485

KIT ADJUSTER ASM.438151.LT

Note: . 17 18

$44.99

$

Usually ships in 3-10 days

0

36

Jonsered 532404833

TRANSMISSION.21.FGD.HT.VST

$120.99

$

Usually ships in 3-10 days

0

38

Jonsered 873800400

LOCKNUT
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

40

$8.99

$

In Stock, Qty 7

0

41

Jonsered 532438486

KIT ADJUSTER ASM.438148 .RT

Note: . 17 18

$

$

Not available

54

Jonsered 532194853

No Description Available

$

$

Not available

57

Jonsered 532411950

FRAME.GBAG.21.FWGD

$

$

Not available
