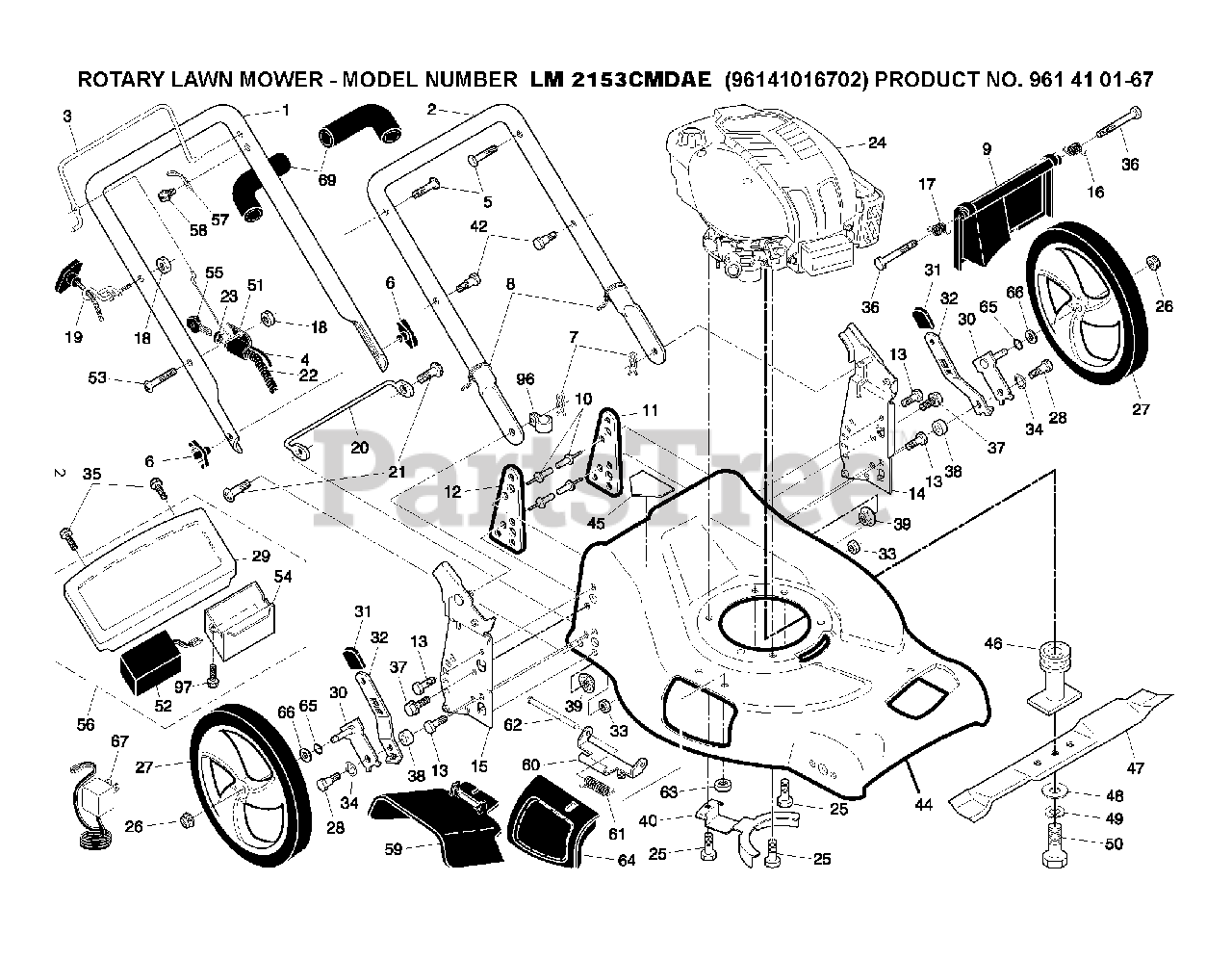

LM 2153 CMDAE (961410167-02) - Jonsered Walk-Behind Mower (2009-09) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

PRODUCT COMPLETE Parts Diagram

  • Title

1

Jonsered 532427657

No Description Available

$46.99

$

Usually ships in 3-10 days

0

2

Jonsered 532196349

No Description Available

$

$

Not available

3

Jonsered 532427905

No Description Available

$15.99

$

Usually ships in 3-10 days

0

4

Jonsered 532401994

CABLE, OPERATOR PRESENCE

$30.99

$

In Stock, only 1 left!

0

5

Jonsered 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 2 left!

0

6

Jonsered 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 13

0

7

Jonsered 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

8

Jonsered 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

9

Jonsered 532406985

REAR DOOR ASSEMBLY
(Superseded to 532401812)

$34.99

$

Usually ships in 3-10 days

0

10

Jonsered 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

11

Jonsered 532410540

SUPPORT BRACKET LH
(Superseded to 532406573)

$7.49

$

Usually ships in 3-10 days

0

12

Jonsered 532410542

BRACKET.SUPRT.RH.21.FWGD

$7.49

$

Usually ships in 3-10 days

0

13

Jonsered 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

14

Jonsered 532182543

HANDLE BRACKET ASSEMBLY, LEFT
(Superseded to 532175576)

$13.99

$

Usually ships in 3-10 days

0

15

Jonsered 532182545

HANDLE BRACKET ASSY. (RIGHT)
(Superseded to 532434512)

$14.99

$

Usually ships in 3-10 days

0

16

Jonsered 532405417

SPRING.REAR.DOOR.EZ.21.LT

$9.49

$

Usually ships in 3-10 days

0

17

Jonsered 532405418

SPRING.REAR.DOOR.EZ.21.RT

$4.99

$

Usually ships in 3-10 days

0

18

Jonsered 532132004

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

19

Jonsered 532194788

GUIDE.ROPE.STD.BLK.ZIN
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

20

Jonsered 532413543

No Description Available

$

$

Not available

21

Jonsered 817490416

SCREW
(Superseded to 817640416)

$

$

Not available

22

Jonsered 532409567

WIRING HARNESS

$66.99

$

Usually ships in 3-10 days

0

23

Jonsered 532194848

NUT.CAP.SNAP-ON.KEY START

$7.49

$

Usually ships in 3-10 days

0

24

Jonsered TBD

No Description Available

$

$

Not available

25

Jonsered 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

26

Jonsered 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

27

Jonsered 532402595

No Description Available

$

$

Not available

28

Jonsered 532401638

SHOULDER BOLT 5/16-18
(Superseded to 596203801)

$4.99

$

In Stock, only 4 left!

0

29

Jonsered 532411190

PANEL.TRIM.21.FWGD.ES

$37.99

$

Usually ships in 3-10 days

0

30

Jonsered 532413141

ARM.ASM.AXLE.REAR.5/9.POS.BZP

$7.49

$

In Stock, only 3 left!

0

31

Jonsered 532701037

SELECTOR KNOB

$5.99

$

In Stock, only 4 left!

0

32

Jonsered 532409889

SELECTOR SPRING
(Superseded to 532401626)

$4.99

$

In Stock, only 2 left!

0

33

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

34

Jonsered 532401630

WASHER FLAT

$4.99

$

In Stock, only 3 left!

0

35

Jonsered 532141841

SCREW.PAN.HEAD.#10

$7.49

$

In Stock, only 2 left!

0

36

Jonsered 532184193

BOLT

$

$

Not available

37

Jonsered 874780512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

38

Jonsered 532401629

SPACER.HEIGHT.ADJUSTER

$6.49

$

In Stock, only 4 left!

0

39

Jonsered 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

40

Jonsered 532425711

BELT KEEPER

$

$

Not available

42

Jonsered 532175551

SCREW.SHOULDER.HH.10X.281X.6

$4.99

$

Usually ships in 3-10 days

0

44

Jonsered 532411404

No Description Available

$

$

Not available

45

Jonsered 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

46

Jonsered 532197752

No Description Available

$

$

Not available

47

Jonsered 532199377

BLADE.21.PUSH
(Superseded to 539113233)

$27.99

$

In Stock, only 2 left!

0

48

Jonsered 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 2 left!

0

49

Jonsered 532850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

50

Jonsered 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

51

Jonsered 532189686

KEY.START.CONTROL.W/ZONE

$47.99

$

In Stock, only 1 left!

0

52

Jonsered 532189589

BATTERY.AMP.CONNECTOR
(Superseded to 584353901)

$103.99

$

Usually ships in 3-10 days

0

53

Jonsered 532186159

SCREW.(COMBINATION CONTROL)

$4.99

$

Usually ships in 3-10 days

0

54

Jonsered 532186237

BOX.BATTERY.TRIM

$7.49

$

Usually ships in 3-10 days

0

55

Jonsered 532180331

KEY.MOLDED

$8.99

$

In Stock, Qty 10

0

56

Jonsered 532191252

PANEL.ASM.TRIM/BATTERY.BOX

$78.99

$

Usually ships in 3-10 days

0

57

Jonsered 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

58

Jonsered 532750634

SCREW

$6.49

$

In Stock, Qty 5

0

59

Jonsered 532175071

DISCHARGE DEFLECTOR

$20.99

$

Usually ships in 3-10 days

0

60

Jonsered 532175735

HINGE BRACKET ASSEMBLY

$

$

Not available

61

Jonsered 532193000

SPRING.TORSION

$7.49

$

In Stock, only 3 left!

0

62

Jonsered 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 10

0

63

Jonsered 873800400

LOCKNUT
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

64

Jonsered 532175066

DOOR.MULCH.21.REAR

$11.99

$

In Stock, only 1 left!

0

65

Jonsered 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

66

Jonsered 532088348

WASHER PM

$7.49

$

In Stock, Qty 6

0

67

Jonsered 532192436

No Description Available
(Superseded to 583203301)

$84.99

$

Usually ships in 3-10 days

0

69

Jonsered 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

96

Jonsered 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

97

Jonsered 817411308

SCREW

$6.49

$

In Stock, only 1 left!

0

--

Jonsered 532182134

No Description Available
(Superseded to 583119801)

$14.99

$

Usually ships in 3-10 days

0

--

Jonsered TBD

No Description Available

$

$

Not available

--

Jonsered TBD

No Description Available

$

$

Not available

--

Jonsered TBD

No Description Available

$

$

Not available

--

Jonsered TBD

No Description Available

$

$

Not available
